The module core

The Virtualization module core is directly responsible for working with virtual machines (VMs). The core is based on the KubeVirt project. KubeVirt is an open-source project that allows you to launch, deploy, and manage VMs using Kubernetes as an orchestration platform. It enables a cooperation between traditional VMs and container workloads in the same Kubernetes cluster, providing a single control plane. A fork of KubeVirt from the company “Flant” is used in the virtualization module.

To manage VMs, the module core uses custom resources of the following API groups:

1. Internal.virtualization.deckhouse.io: The main group, an analog of the kubevirt.io API group of the original KubeVirt. It includes the following custom resources:

   • InternalVirtualizationVirtualMachine: A resource that describes the VM configuration and status.
   • InternalVirtualizationVirtualMachineInstance: A resource that describes a running VM. After VM shutdown, the InternalVirtualizationVirtualMachineInstance resource is deleted, but the InternalVirtualizationVirtualMachine resource that manages the InternalVirtualizationVirtualMachineInstance lifecycle remains.

   The resources of the main group are managed by the virt-controller component. The InternalVirtualizationVirtualMachine resources of the KubeVirt internal.virtualization.deckhouse.io main API group are used as the backend for the VirtualMachine resources of virtualization.deckhouse.io API group managed by the virtualization-controller.

   For simplification, the reduced VirtualMachine and VirtualMachineInstance names will be used for the InternalVirtualizationVirtualMachine and InternalVirtualizationVirtualMachineInstance resources (of the original KubeVirt kubevirt.io API group) respectively.

2. subresources.kubevirt.io: Subresources group. Subresources are additional operations or actions that can be performed on core resources (for example, VirtualMachineInstance) via the Kubernetes API. They provide interfaces for managing specific aspects of resources without affecting the entire object. Instead of the declarative resource familiar to Kubernetes, they are an endpoint for imperative operations. The following KubeVirt subresources are used in the virtualization module:

   • virtualmachines/{name}/addvolume;
   • virtualmachines/{name}/removevolume;
   • virtualmachines/{name}/addresourceclaim;
   • virtualmachines/{name}/removeresourceclaim;
   • virtualmachineinstances/{name}/console;
   • virtualmachineinstances/{name}/vnc;
   • virtualmachineinstances/{name}/portforward;
   • virtualmachineinstances/{name}/freeze;
   • virtualmachineinstances/{name}/unfreeze.

   The subresources are managed by the virt-api component. The KubeVirt subresources listed above are used as a backend for similar resources of subresources.virtualization.deckhouse.io API group managed by the virtualization-api component.

Module core architecture

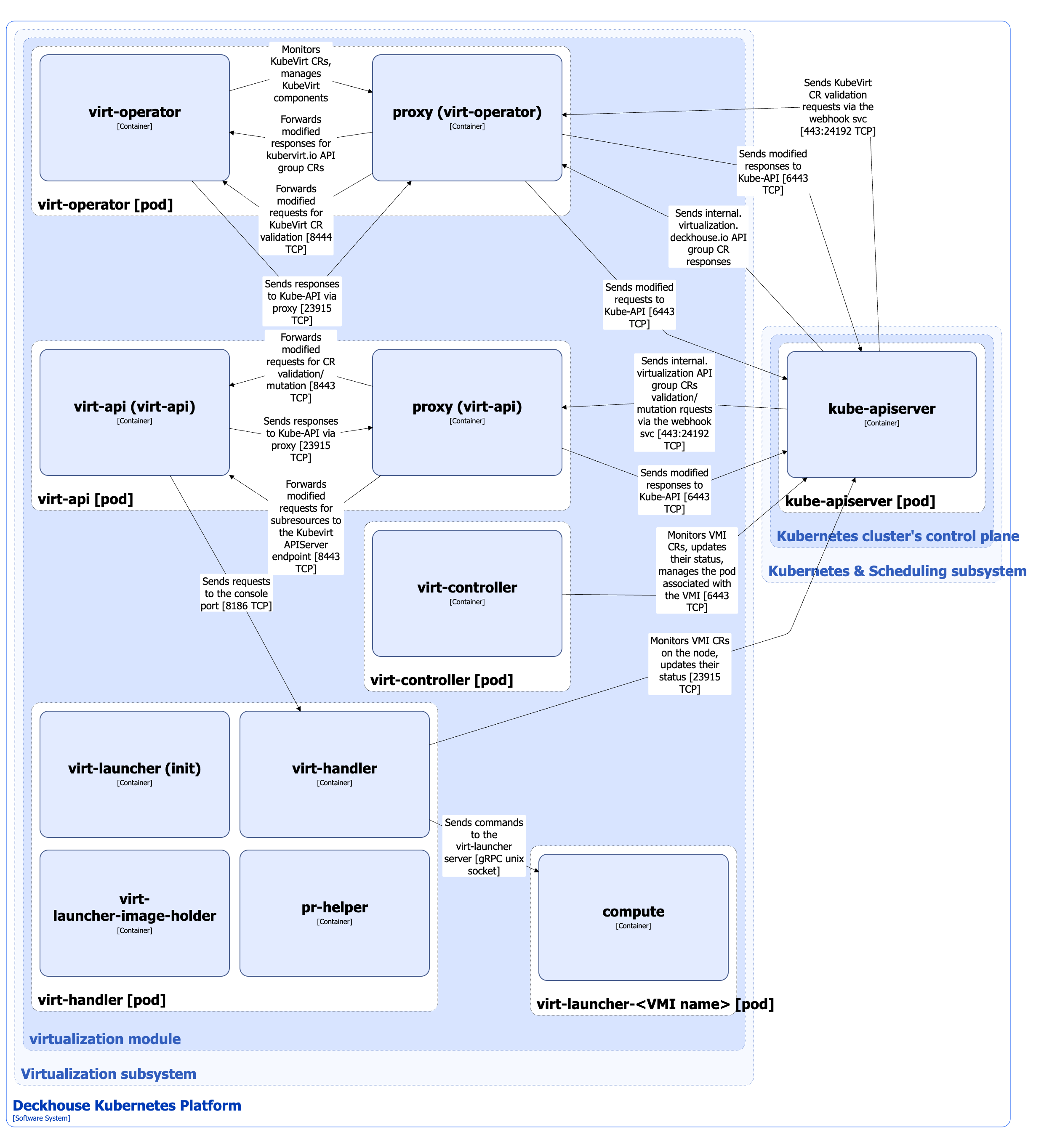

The Level 2 C4 architecture of the virtualization module core and its interactions with other components of DKP are shown in the following diagrams:

Module core components

The module core consists of the following components:

1. Virt-api: A Kubernetes Extension API Server that serves requests to the subresources.kubevirt.io API groups. The virt-api component performs validation and mutation of custom resources of the internal.virtualization.deckhouse.io API groups using the Validating/Mutating Admission Controllers mechanism. Requests pass through the proxy sidecar container that renames metadata from the internal.virtualization.deckhouse.io API group to the kubevirt.io API group and proxies them to the virt-api component endpoint.

   It consists of the following containers:

   • virt-api: Main container that implements controller and webhook server.
   • proxy (aka kube-api-rewriter): Sidecar container that performs modification of API requests passing through it, namely renaming the metadata of custom resources. This is necessary because KubeVirt components use API groups like *.kubevirt.io, and other components of the virtualization module use similar resources, but with API groups like *.virtualization.deckhouse.io. Kube-api-rewriter is a gateway that proxies requests between controllers that manage resources from different API groups.
   • kube-rbac-proxy: Sidecar container with an authorization proxy based on Kubernetes RBAC that provides secure access to the metrics of the proxy container. It is an open-source project.

2. Virt-controller: A controller that manages the internal.virtualization.deckhouse.io main API group custom resources and responsible for the virtualization functionality at the cluster wide level. For each VirtualMachineInstance resource it creates a separate pod in which the VM is started. Virt-controller monitors VirtualMachineInstance resources, updates their status, and manages the associated pods.

   It consists of the following containers:

   • virt-controller: Main container.
   • proxy (aka kube-api-rewriter): A sidecar container that performs modification of API requests passing through it (described above).
   • kube-rbac-proxy: A sidecar container providing authorized access to the metrics of the cdi-apiserver and proxy containers (described above).

3. Virt-handler (DaemonSet): A separate controller that runs on all nodes of the cluster. Virt-handler performs the following functions:

   • It extends the kubelet functionality, configuring the pod environment to run a VM inside it. At the moment virt-handler is responsible for creating network interfaces, also it is used to forward dev/kvm and other devices from the node into the pod. Virt-handler uses kubelet device plugins to forward devices.

   • Like virt-controller, virt-handler watches VirtualMachineInstance resources corresponding to VMs running on the node. When changes are detected, virt-handler sends a command to the virt-launcher process running in the compute container of the VM pod. Virt-launcher changes the VM state in accordance with the command received. Virt-handler also monitors VM events that virt-launcher returns and synchronizes the corresponding VirtualMachineInstance resource status.

   • It accepts commands from the virt-api component via the console-port that correspond to requests for subresources and forwards them to the virt-launcher for execution. By the subresources functionality ports are forwarded to the VM, as well as to the regular and VNC consoles.

     Virt-handler interacts with virt-launcher via the gRPC protocol and Unix socket.

   It consists of the following containers:

   • virt-launcher: Init container that runs node-labeller.sh script via virt-launcher binary. This script prepares CPU parameters, their functions, and machine types which virt-handler will use to set the appropriate labels on Node resources. These labels, in turn, will be used to schedule VMs to the nodes that support the appropriate parameters.
   • virt-handler: Main container.
   • virt-launcher-image-holder: A service sidecar container for virt-launcher image pre-loading. The container is on pause and performs only the function of storing the image.
   • pr-helper: QEMU persistent reservation helper is a service sidecar container that creates a listener socket that accepts incoming connections to communicate with QEMU. This is necessary because the operating system restricts sending SCSI commands with permanent redundancy to unprivileged programs, which prevents multiple VMs from sharing block SCSI devices, for example in the case of clusterization. QEMU is a free and open-source program for emulating the hardware of various platforms, which is used to run VMs in a pod.

4. Virt-operator: A Kubernetes operator that manages the KubeVirt components lifecycle using InternalVirtualizationKubeVirt custom resource. Virt-operator installs the virt-api, virt-controller and virt-handler in the cluster and also configures them.

   It consists of the following containers:

   • virt-operator: Main container.
   • proxy (aka kube-api-rewriter): Sidecar container that performs modification of API requests passing through it (described above).

5. Virt-launcher-[VMI name]: The pod where the VM is running (more exactly VirtualMachineInstance).

   It consists of one container:

   • compute: A container where the virt-launcher is run. Virt-launcher implements cmd-server (a gRPC server for the remote command execution).

     Depending on the command received from virt-handler, virt-launcher generates an XML specification of the VM being launched or updated and sends it to libvirtd. Libvirtd is a daemon of the server part of the libvirt virtualization management system. It runs on host servers and performs management tasks for virtual guest systems.

     Libvirtd, in turn, starts the VM and manages its lifecycle. The VM is started using QEMU and KVM. QEMU is an open-source emulator that supports hardware virtualization and works in conjunction with the KVM hypervisor.

     In fact libvirtd starts the QEMU process, which is the VM (more exactly VirtualMachineInstance).

     Virt-handler also constantly monitors the status of the running VM, returned by libvirtd via virt-launcher, and updates the VirtualMachineInstance status.

Module core interactions

The module core (CORE) interacts with the following components:

1. Kube-apiserver:

   • Watches for KubeVirt custom resources and manages KubeVirt components.
   • Watches for VirtualMachineInstance custom resources, updates their status, and manages the associated pods.
   • Authorizes requests for metrics.

2. CDI (Containerized-Data-Importer): KubeVirt creates a DataVolume resource based on the disk specification and a link to the VM image in the DataVolumeTemplate section of the VirtualMachine resource. CDI imports a disk image to PVC from the source specified in the DataVolume. The created PVC is a disk of a virtual machine managed by KubeVirt.

The following external components interact with the module core:

1. Kube-apiserver:

   • Sends InternalVirtualizationKubeVirt custom resource validating requests.
   • Sends internal.virtualization.deckhouse.io API group resource validating and mutating requests.

2. Prometheus-main: Collects module core components metrics.

Additional resources

• Module virtualization documentation
