External access configuration

Connecting Prometheus to Third-Party Grafana

Each ingress-nginx-controller has certificates that, when specified as client certificates, will allow connection to Prometheus. All you need to do is create an additional Ingress resource.

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: my-prometheus-api
  namespace: d8-monitoring
  annotations:
    nginx.ingress.kubernetes.io/backend-protocol: HTTPS
    nginx.ingress.kubernetes.io/auth-type: basic
    nginx.ingress.kubernetes.io/auth-secret: my-basic-auth-secret
    nginx.ingress.kubernetes.io/app-root: /graph
    nginx.ingress.kubernetes.io/configuration-snippet: |
      proxy_ssl_certificate /etc/nginx/ssl/client.crt;
      proxy_ssl_certificate_key /etc/nginx/ssl/client.key;
      proxy_ssl_protocols TLSv1.2;
      proxy_ssl_session_reuse on;
spec:
  ingressClassName: nginx
  rules:
  - host: prometheus-api.example.com
    http:
      paths:
      - backend:
          service:
            name: prometheus
            port:
              name: https
        path: /
        pathType: ImplementationSpecific
  tls:
  - hosts:
    - prometheus-api.example.com
    secretName: example-com-tls
---
apiVersion: v1
kind: Secret
metadata:
  name: my-basic-auth-secret
  namespace: d8-monitoring
type: Opaque
data:
  # The basic-auth string is hashed using htpasswd.
  auth: Zm9vOiRhcHIxJE9GRzNYeWJwJGNrTDBGSERBa29YWUlsSDkuY3lzVDAK  # foo:bar

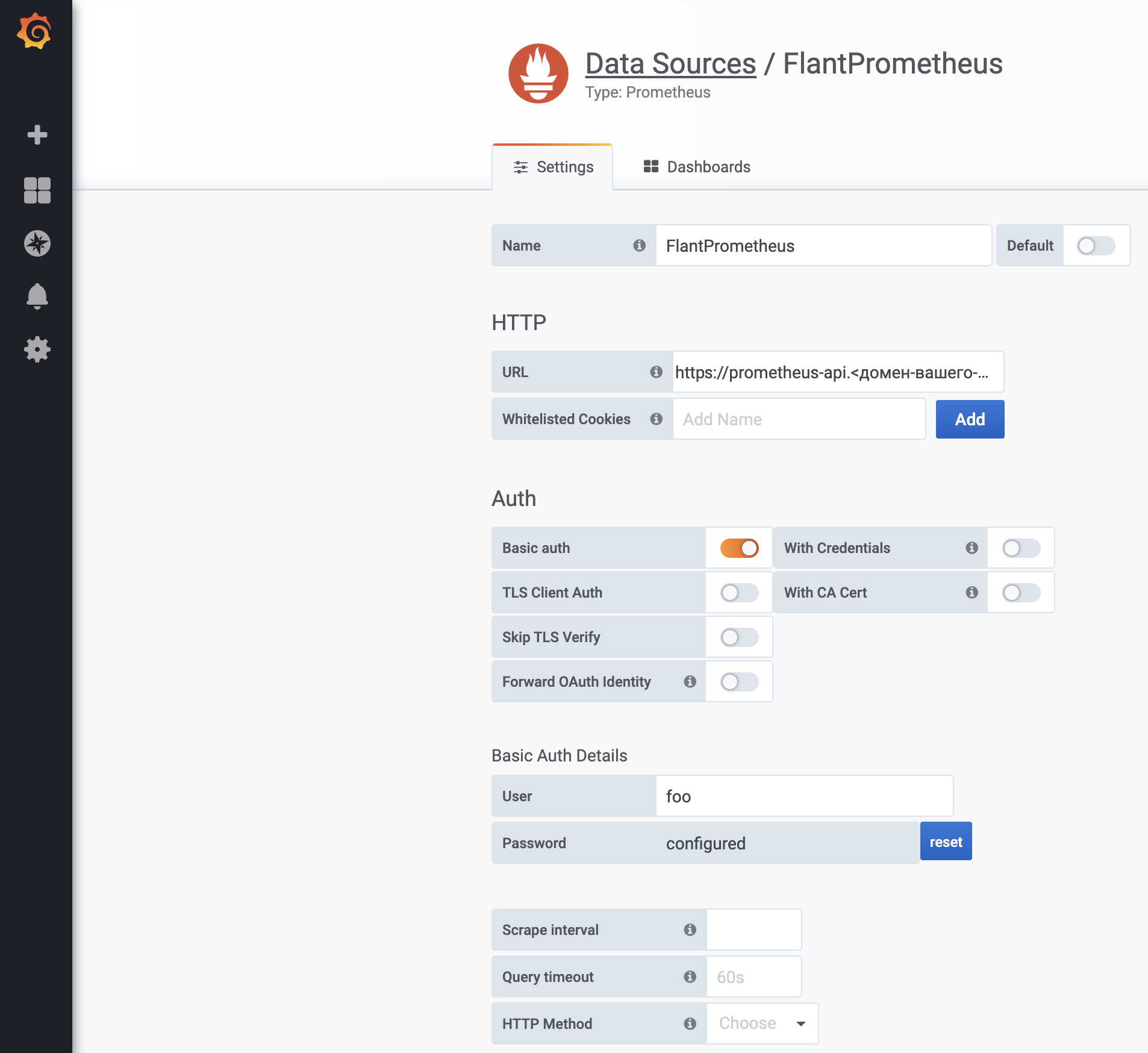

Add the data source in Grafana:

• Basic authorization is not a reliable security measure. It is recommended to implement additional security measures, for example, specify the nginx.ingress.kubernetes.io/whitelist-source-range annotation.

• Due to the need to create an Ingress resource in the system namespace, this connection method is not recommended. Deckhouse does not guarantee the preservation of this connection scheme’s functionality due to its active continuous updates.

• This Ingress resource can be used to access the Prometheus API not only for Grafana but also for other integrations, for example, for Prometheus federation.

Metrics Collection via Gateway (Pushgateway)

Prometheus, which is the foundation of the DVP monitoring system, primarily uses a pull model for metrics collection. With this approach, metric exporters are polled from the DVP side. When the pull model is difficult to apply, for example, for services without a permanent network interface, you can use metrics collection via a gateway (Pushgateway). Pushgateway allows such tasks to send metrics themselves, which can then be collected by Prometheus. It is important to note that Pushgateway can become a single point of failure and bottleneck in the system. How to send metrics from an application to Pushgateway can be learned from the Prometheus documentation.

Example of configuring metrics collection via gateway (Pushgateway):

1. Enable and configure the prometheus-pushgateway module.

   You can enable the module in the web interface (Deckhouse Console), or using the following command:

   d8 system module enable prometheus-pushgateway


2. Specify the gateway names in the instances parameter of the prometheus-pushgateway module through the web interface, or using the following command:

   d8 k edit mc prometheus-pushgateway


   Example module configuration:

   apiVersion: deckhouse.io/v1alpha1
   kind: ModuleConfig
   metadata:
     name: prometheus-pushgateway
   spec:
     version: 1
     enabled: true
     settings:
       instances:
       - first
       - second
       - another


   The address of the PushGateway instance named first from the pod container will be: http://first.kube-prometheus-pushgateway:9091.

3. Check metrics sending.

   Example of sending a metric via curl:

   echo "test_metric{env="dev"} 3.14" | curl --data-binary @- http://first.kube-prometheus-pushgateway:9091/metrics/job/myapp


4. Check that the metric appeared in the monitoring system. It will be available 30 seconds after data collection.

   Example PromQL query:

   test_metric{container="prometheus-pushgateway", env="dev", exported_job="myapp",
       instance="10.244.1.155:9091", job="prometheus-pushgateway", pushgateway="prometheus-pushgateway", tier="cluster"} 3.14


Removing Metrics from Gateway (Pushgateway)

Example of removing all metrics from the group {instance="10.244.1.155:9091",job="myapp"} via curl:

curl -X DELETE http://first.kube-prometheus-pushgateway:9091/metrics/job/myapp/instance/10.244.1.155:9091

Note that PushGateway stores received metrics in memory. When the PushGateway pod restarts, all metrics will be lost.
