Registry Module

Description

The module manages the configuration of the registry of Deckhouse components and provides an internal container image storage (container registry, registry).

The internal registry allows for optimizing the downloading and storage of images, as well as helping to ensure availability and fault tolerance for Deckhouse Kubernetes Platform.

The module can operate in the following modes:

• Direct — enables the internal container image registry. Access to the internal registry is performed via the fixed address registry.d8-system.svc:5001/system/deckhouse. This fixed address allows Deckhouse images to avoid being re-downloaded and components to avoid being restarted when registry parameters change. Switching between modes and registries is done through the deckhouse ModuleConfig. The switching process is automatic — see the usage examples for more information.
• Unmanaged — operation without using the internal registry. Access within the cluster is performed directly to the external registry. There are two types of the Unmanaged mode:
  • Configurable — a mode managed via the registry module. Switching between modes and registries is handled through the ModuleConfig of deckhouse. The switch is performed automatically (see usage examples for details).
  • Non-configurable (deprecated) — the default mode. Configuration parameters are set during cluster installation or changed in a running cluster using the (deprecated) helper change registry command.

Restrictions and features of using the module

The registry module has a number of limitations and features related to installation, operating conditions, and mode switching.

Cluster installation limitations

DKP cluster bootstrap is only supported in non-configurable Unmanaged mode. Registry settings during bootstrap are specified through initConfiguration.

Registry configuration via the deckhouse moduleConfig during DKP cluster bootstrap is not supported.

Operating conditions restrictions

The module works under the following conditions:

• If CRI containerd or containerd v2 is used on the cluster nodes. To configure CRI, refer to the ClusterConfiguration configuration.
• The cluster is fully managed by DKP. The module will not work in Managed Kubernetes clusters.

Mode switching restrictions

Mode switching restrictions are as follows:

• For the first switch, migration of user registry configurations must be performed. For more details, see the Registry Module: FAQ section.
• Switching to the non-configurable Unmanaged mode is only available from the Unmanaged mode. For more details, see the Registry Module: FAQ section.

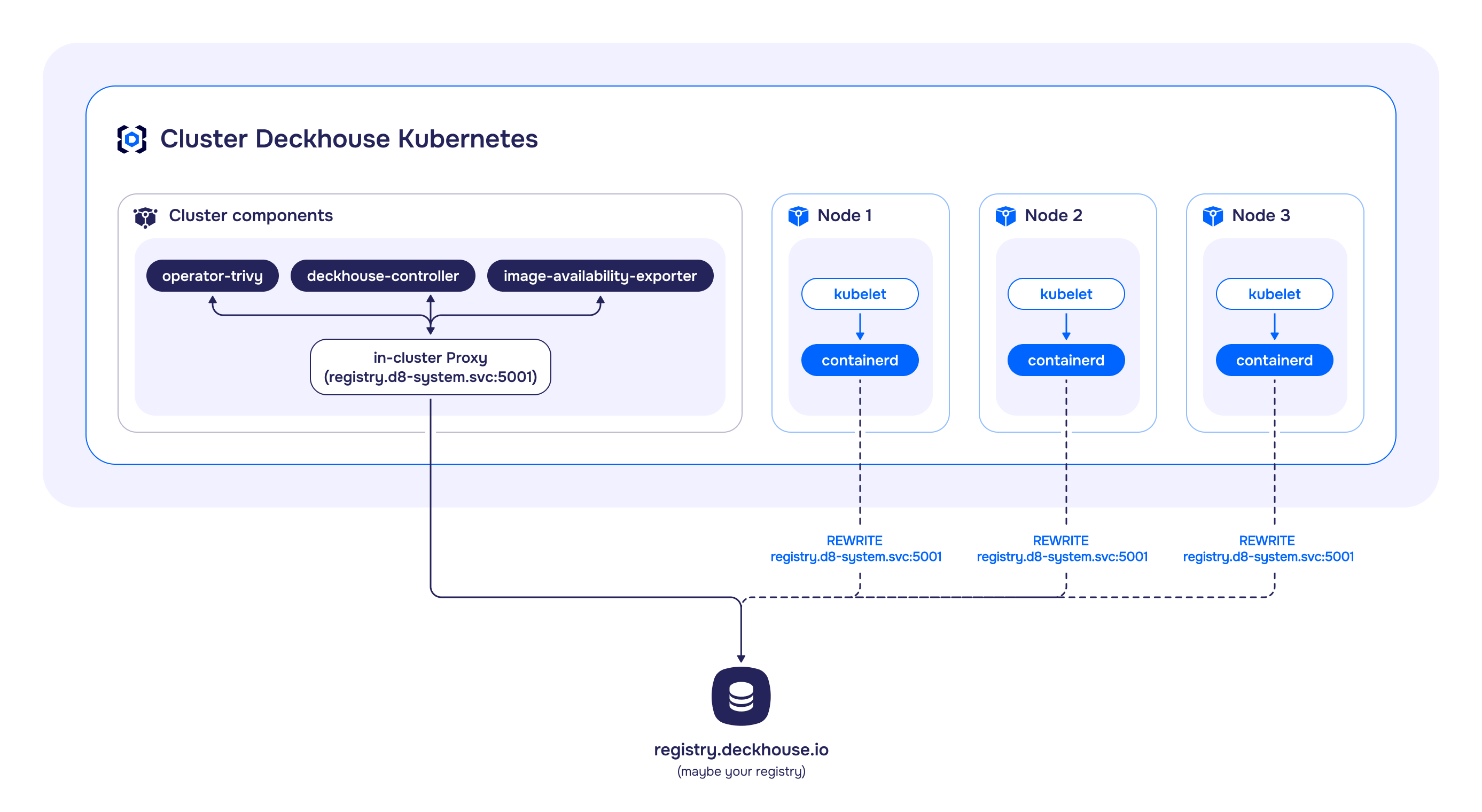

Direct Mode Architecture

In Direct mode, registry requests are processed directly, without intermediate caching.

CRI requests to the registry are redirected based on its configuration, which is defined in the containerd configuration.

For components such as operator-trivy, image-availability-exporter, deckhouse-controller, and others that access the registry directly, requests will go through the in-cluster proxy located on the master nodes.
