Available in editions:  CE, BE, SE, SE+, EE

Web interfaces associated with the module: status, upmeter

The module tests the availability of the platform and the status of cluster components in real time, and outputs information in the form of corresponding dashboards.

Module features:

  • continuous testing scenarios have been developed for all major cluster components;
  • the test results are saved as metrics;
  • displays a dashboard showing the functionality of the components;
  • the data can be exported to any external Prometheus-compatible monitoring system.

Module composition:

  • agent — runs on master nodes, performs availability tests, and sends results to the server.
  • upmeter — collects results and supports an API server to retrieve them.
  • front
    • status — shows the availability level for the last 10 minutes (requires authorization, but it can be disabled);
    • webui — shows a dashboard with statistics on probes and availability groups (requires authorization).
  • smoke-mini — supports continuous smoke testing using StatefulSet.

The module sends about 100 metric readings every 5 minutes. This figure depends on the number of Deckhouse Kubernetes Platform modules enabled.

Interface

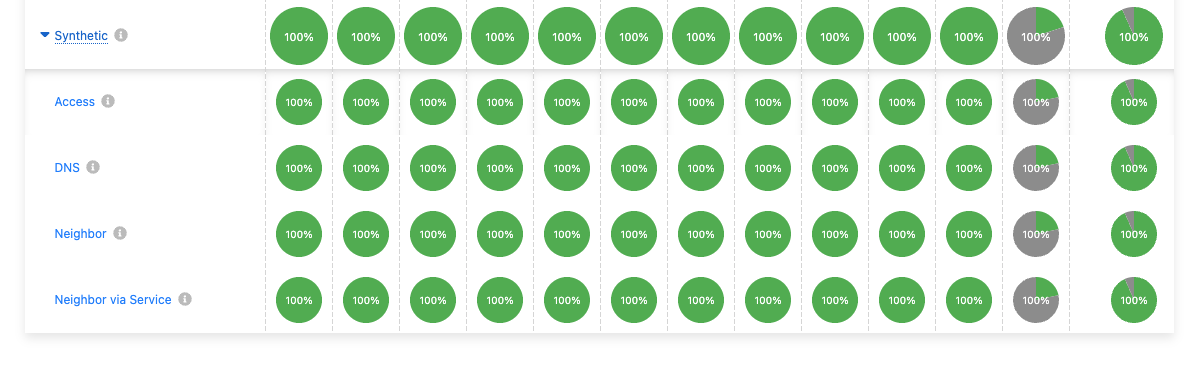

Example of a web interface: Example of a web interface

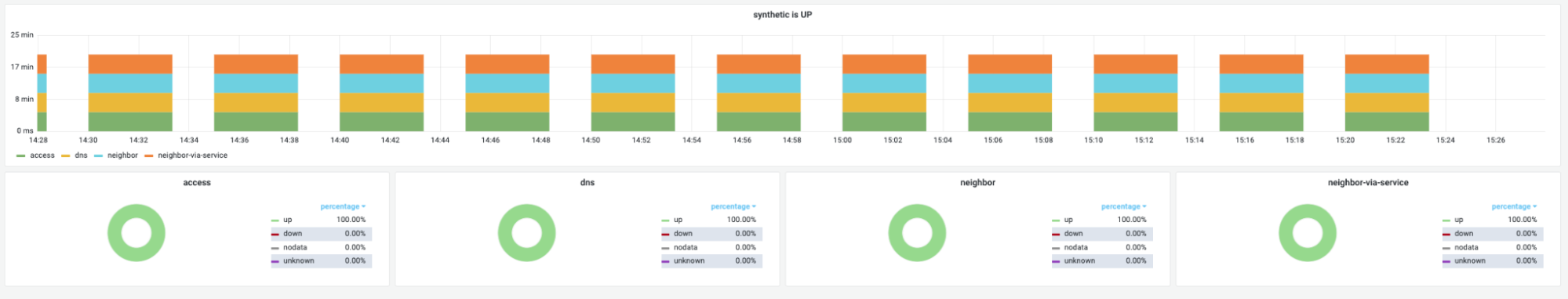

Example of Grafana plots based on upmeter metrics: Example of Grafana plots based on upmeter metrics
