Three layouts are supported. Below is more information about each of them.

Standard

In this placement strategy, nodes do not have public IP addresses allocated to them; they use NAT gateway service in Yandex Cloud to connect to the Internet. NAT Gateway uses random public IP addresses from dedicated ranges. Because of this, it is impossible to whitelist the IP addresses of cloud resources located behind a specific NAT gateway on the side of other services.

Yandex Cloud Standard Layout scheme

Example of the layout configuration:

apiVersion: deckhouse.io/v1
kind: YandexClusterConfiguration
layout: Standard
sshPublicKey: "<SSH_PUBLIC_KEY>"
nodeNetworkCIDR: 192.168.12.13/24
existingNetworkID: <EXISTING_NETWORK_ID>
provider:
  cloudID: <CLOUD_ID>
  folderID: <FOLDER_ID>
  serviceAccountJSON: |
    {
    "id": "id",
    "service_account_id": "service_account_id",
    "key_algorithm": "RSA_2048",
    "public_key": "-----BEGIN PUBLIC KEY-----\nMIIwID....AQAB\n-----END PUBLIC KEY-----\n",
    "private_key": "-----BEGIN PRIVATE KEY-----\nMIIE....1ZPJeBLt+\n-----END PRIVATE KEY-----\n"
    }
masterNodeGroup:
  replicas: 3
  zones:
  - ru-central1-a
  - ru-central1-b
  - ru-central1-d
  instanceClass:
    cores: 4
    memory: 8192
    imageID: <IMAGE_ID>
    externalIPAddresses:
    - "<ZONE_A_EXTERNAL_IP_MASTER_1>"
    - "Auto"
    - "Auto"
    externalSubnetIDs:
    - <ZONE_A_SUBNET_ID>
    - <ZONE_B_SUBNET_ID>
    - <ZONE_D_SUBNET_ID>
    additionalLabels:
      takes: priority
nodeGroups:
- name: worker
  replicas: 2
  zones:
  - ru-central1-a
  - ru-central1-b
  instanceClass:
    cores: 4
    memory: 8192
    imageID: <IMAGE_ID>
    coreFraction: 50
    externalIPAddresses:
    - "Auto"
    - "Auto"
    externalSubnetIDs:
    - <ZONE_A_SUBNET_ID>
    - <ZONE_B_SUBNET_ID>
    additionalLabels:
      role: example
labels:
  billing: prod
dhcpOptions:
  domainName: test.local
  domainNameServers:
  - <DNS_SERVER_1>
  - <DNS_SERVER_2>

WithoutNAT

In this layout, NAT (of any kind) is not used, and each node is assigned a public IP.

Caution! The cloud-provider-yandex module does not support Security Groups, so all cluster nodes will be available without connection restrictions.

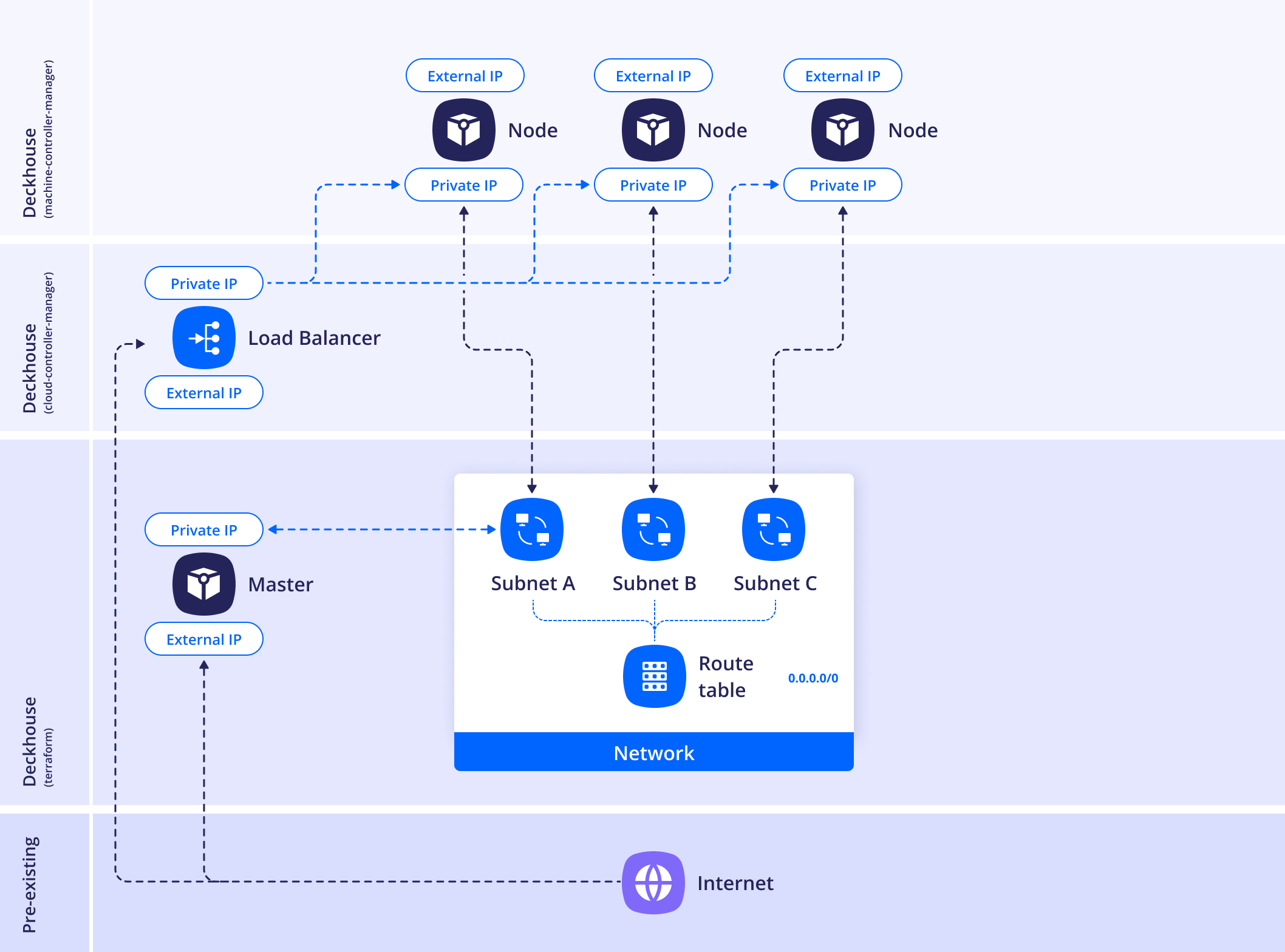

Yandex Cloud WithoutNAT Layout scheme

Example of the layout configuration:

apiVersion: deckhouse.io/v1
kind: YandexClusterConfiguration
layout: WithoutNAT
provider:
  cloudID: <CLOUD_ID>
  folderID: <FOLDER_ID>
  serviceAccountJSON: |
    {
    "id": "id",
    "service_account_id": "service_account_id",
    "key_algorithm": "RSA_2048",
    "public_key": "-----BEGIN PUBLIC KEY-----\nMIIwID....AQAB\n-----END PUBLIC KEY-----\n",
    "private_key": "-----BEGIN PRIVATE KEY-----\nMIIE....1ZPJeBLt+\n-----END PRIVATE KEY-----\n"
    }
masterNodeGroup:
  replicas: 3
  instanceClass:
    cores: 4
    memory: 8192
    imageID: <IMAGE_ID>
    externalIPAddresses:
    - "Auto"
    - "Auto"
    - "Auto"
    externalSubnetIDs:
    - <ZONE_A_SUBNET_ID>
    - <ZONE_B_SUBNET_ID>
    - <ZONE_D_SUBNET_ID>
    zones:
    - ru-central1-a
    - ru-central1-b
    - ru-central1-d
nodeGroups:
- name: worker
  replicas: 2
  instanceClass:
    cores: 4
    memory: 8192
    imageID: <IMAGE_ID>
    coreFraction: 50
    externalIPAddresses:
    - "<ZONE_A_EXTERNAL_IP_WORKER_1>"
    - "Auto"
    externalSubnetIDs:
    - <ZONE_A_SUBNET_ID>
    - <ZONE_B_SUBNET_ID>
    zones:
    - ru-central1-a
    - ru-central1-b
sshPublicKey: "<SSH_PUBLIC_KEY>"
nodeNetworkCIDR: 192.168.12.13/24
existingNetworkID: <EXISTING_NETWORK_ID>
dhcpOptions:
  domainName: test.local
  domainNameServers:
  - <DNS_SERVER_1>
  - <DNS_SERVER_2>

WithNATInstance

In this placement strategy, Deckhouse creates a NAT instance inside new separate subnet and adds a rule to a route table containing a route to 0.0.0.0/0 with a NAT instance as the next hop. The subnet is allocated to prevent routing loops and must not overlap with other networks used in the cluster.

To place the NAT instance in an existing subnet, use the withNATInstance.internalSubnetID parameter — the instance will be created in the zone corresponding to that subnet.

If you need to create a new subnet, specify the withNATInstance.internalSubnetCIDR parameter — the NAT instance will be deployed in it.

One of the parameters — withNATInstance.internalSubnetID or withNATInstance.internalSubnetCIDR — is required.

If the withNATInstance.externalSubnetID is provided in addition to previous ones, the NAT instance will be attached to it via secondary interface.

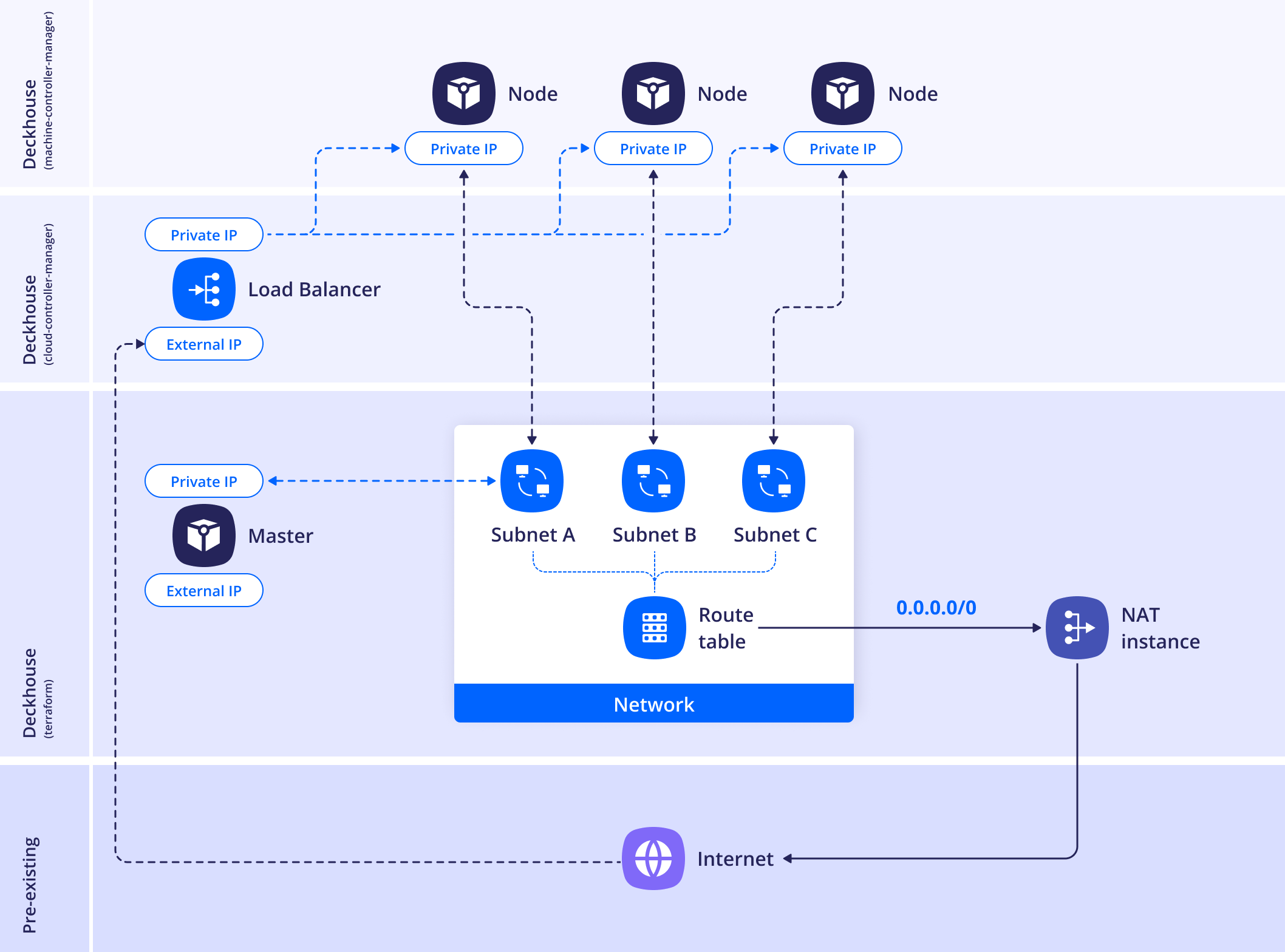

Yandex Cloud WithNATInstance Layout scheme

Example of the layout configuration:

apiVersion: deckhouse.io/v1
kind: YandexClusterConfiguration
layout: WithNATInstance
withNATInstance:
  natInstanceExternalAddress: <NAT_INSTANCE_EXTERNAL_ADDRESS>
  internalSubnetID: <INTERNAL_SUBNET_ID>
  externalSubnetID: <EXTERNAL_SUBNET_ID>
provider:
  cloudID: <CLOUD_ID>
  folderID: <FOLDER_ID>
  serviceAccountJSON: |
    {
    "id": "id",
    "service_account_id": "service_account_id",
    "key_algorithm": "RSA_2048",
    "public_key": "-----BEGIN PUBLIC KEY-----\nMIIwID....AQAB\n-----END PUBLIC KEY-----\n",
    "private_key": "-----BEGIN PRIVATE KEY-----\nMIIE....1ZPJeBLt+\n-----END PRIVATE KEY-----\n"
    }
masterNodeGroup:
  replicas: 1
  instanceClass:
    cores: 4
    memory: 8192
    imageID: <IMAGE_ID>
    externalIPAddresses:
    - "Auto"
    externalSubnetID: <EXTERNAL_SUBNET_ID>
    zones:
    - ru-central1-a
nodeGroups:
- name: worker
  replicas: 1
  instanceClass:
    cores: 4
    memory: 8192
    imageID: <IMAGE_ID>
    coreFraction: 50
    externalIPAddresses:
    - "Auto"
    externalSubnetID: <EXTERNAL_SUBNET_ID>
    zones:
    - ru-central1-a
sshPublicKey: "<SSH_PUBLIC_KEY>"
nodeNetworkCIDR: 192.168.12.13/24
existingNetworkID: <EXISTING_NETWORK_ID>
dhcpOptions:
  domainName: test.local
  domainNameServers:
  - <DNS_SERVER_1>
  - <DNS_SERVER_2>
