Three layouts are supported. Below is more information about each of them.

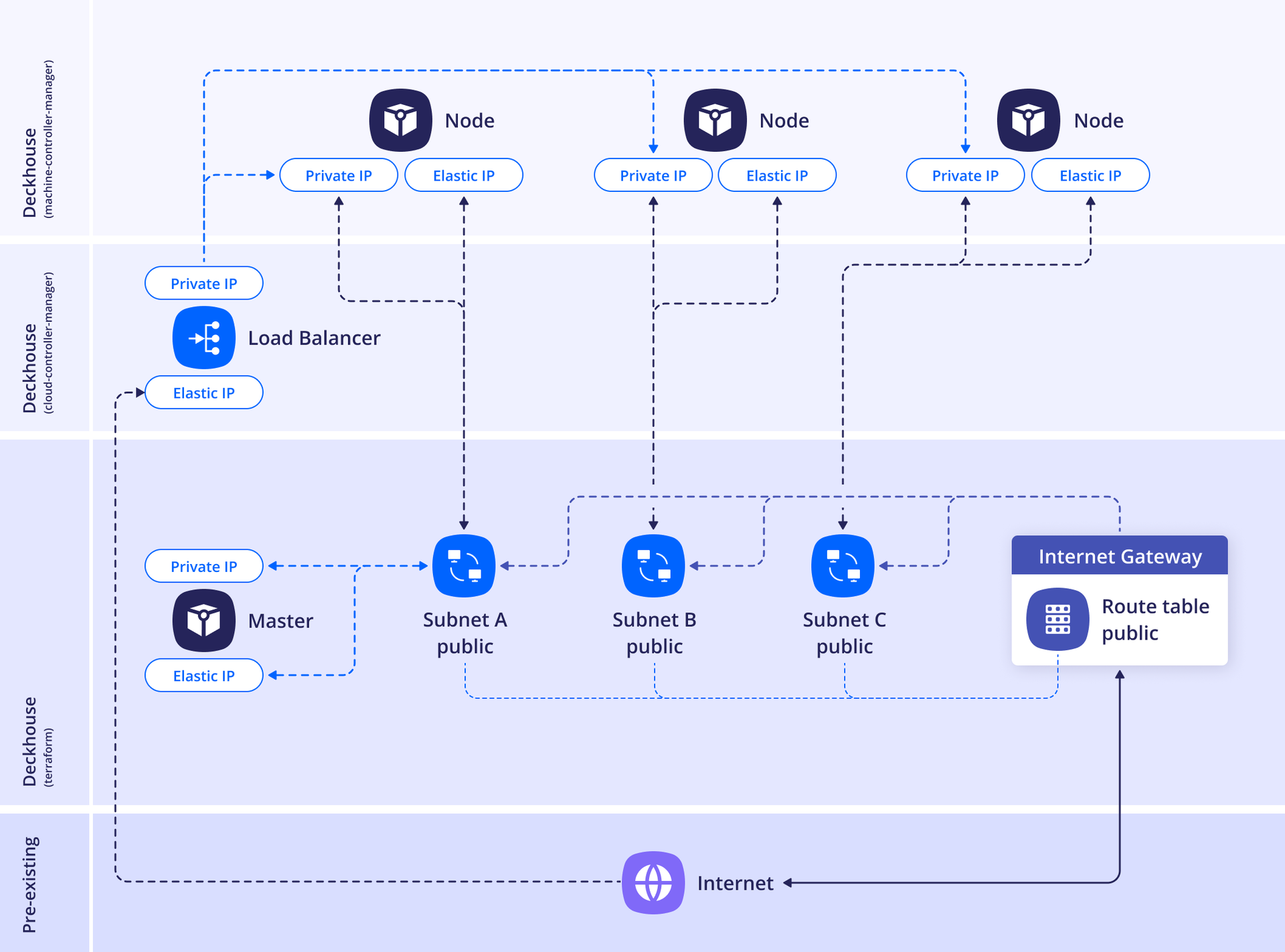

WithoutNAT

Recommended layout.

Under this placement strategy, each node gets a public IP (ElasticIP). NAT is not used at all.

resources

Example of the layout configuration:

apiVersion: deckhouse.io/v1
kind: AWSClusterConfiguration
layout: WithoutNAT
provider:
  providerAccessKeyId: MYACCESSKEY
  providerSecretAccessKey: mYsEcReTkEy
  region: eu-central-1
masterNodeGroup:
  replicas: 1
  instanceClass:
    # type of the instance
    instanceType: m5.xlarge
    # Amazon Machine Image ID
    # AMI Catalog in the AWS console: EC2 -> AMI Catalog
    ami: ami-0caef02b518350c8b
    # master node VM disk size
    diskSizeGb: 30
    # master node VM disk type to use
    diskType: gp3
nodeGroups:
  - name: mydb
    nodeTemplate:
      labels:
        node-role.kubernetes.io/mydb: ""
    replicas: 2
    instanceClass:
      instanceType: t2.medium
      ami: ami-0caef02b518350c8b
    additionalTags:
      backup: me
vpcNetworkCIDR: "10.241.0.0/16"
nodeNetworkCIDR: "10.241.32.0/20"
sshPublicKey: <SSH_PUBLIC_KEY>
tags:
  team: rangers

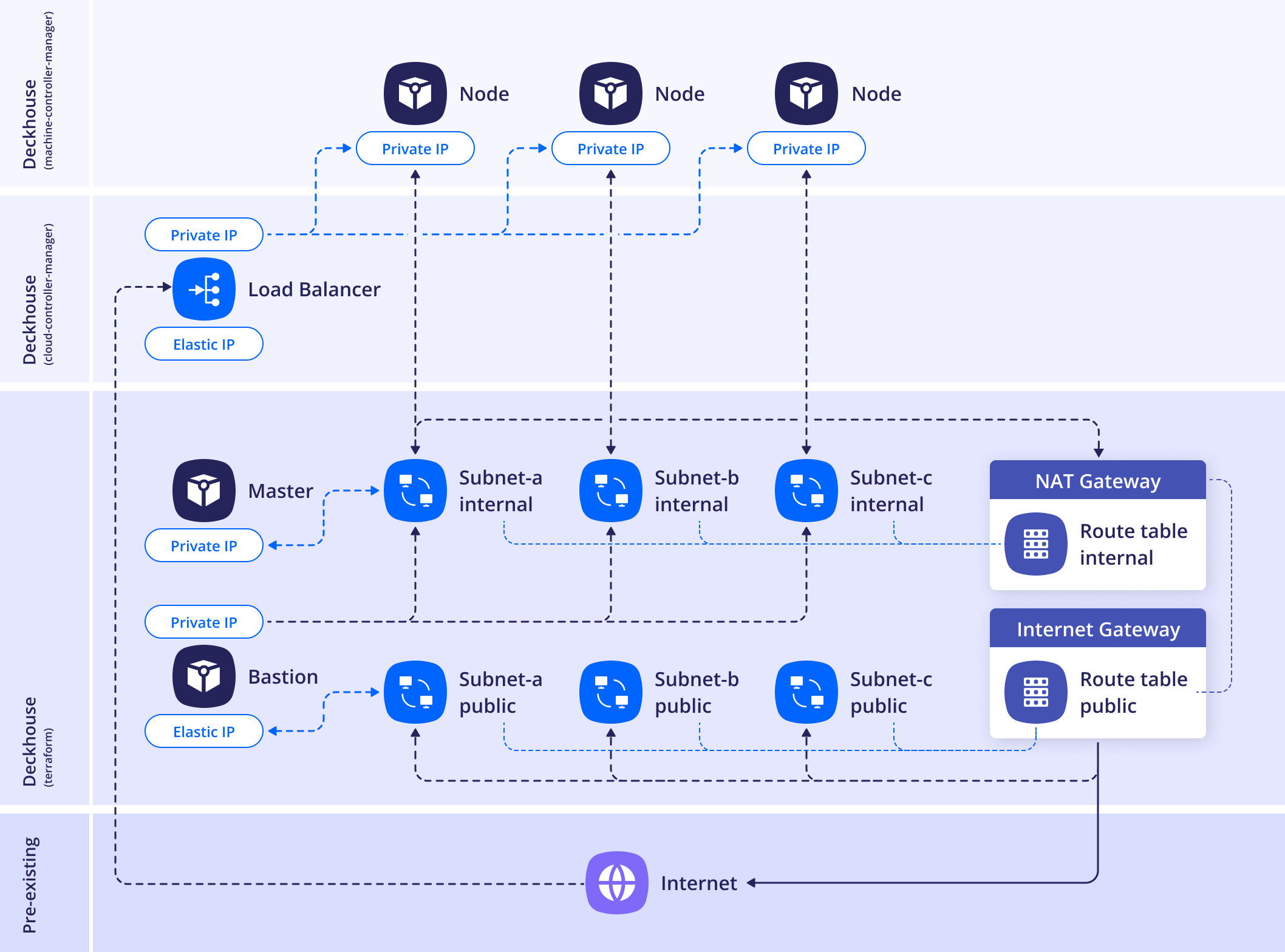

WithNAT

Caution! A bastion host is required to access nodes (it can be created alongside the cluster by specifying the parameters in the section withNAT.bastionInstance).

Caution! The NAT Gateway is always created in zone a in this layout. If cluster nodes are placed in other zones, then if there are problems in zone a, they will also be unavailable. In other words, when choosing the WithNat layout, the availability of the entire cluster will depend on the availability of zone a.

Virtual machines access the Internet using a NAT Gateway with a shared (and single) source IP.

resources

Example of the layout configuration:

apiVersion: deckhouse.io/v1
kind: AWSClusterConfiguration
layout: WithNAT
provider:
  providerAccessKeyId: MYACCESSKEY
  providerSecretAccessKey: mYsEcReTkEy
  region: eu-central-1
withNAT:
  bastionInstance:
    zone: eu-central-1a
    instanceClass:
      instanceType: m5.large
      ami: ami-0caef02b518350c8b
      diskType: gp3
masterNodeGroup:
  # Number of master nodes.
  # If there is more than one master node, the etcd cluster will be set up automatically.
  replicas: 1
  instanceClass:
    # type of the instance
    instanceType: m5.xlarge
    # Amazon Machine Image ID
    # AMI Catalog in the AWS console: EC2 -> AMI Catalog
    ami: ami-0caef02b518350c8b
    # master node VM disk size
    diskSizeGb: 30
    # master node VM disk type to use
    diskType: gp3
nodeGroups:
  - name: mydb
    nodeTemplate:
      labels:
        node-role.kubernetes.io/mydb: ""
    replicas: 2
    instanceClass:
      instanceType: t2.medium
      ami: ami-0caef02b518350c8b
    additionalTags:
      backup: me
vpcNetworkCIDR: "10.241.0.0/16"
nodeNetworkCIDR: "10.241.32.0/20"
sshPublicKey: <SSH_PUBLIC_KEY>
tags:
  team: rangers
