The module lifecycle stage: General Availability

Standard

  • An internal cluster network is created with a gateway to the public network.
  • The elastic IP can be assigned to the master node.
  • Nodes managed by the Cluster API do not have public IP addresses.

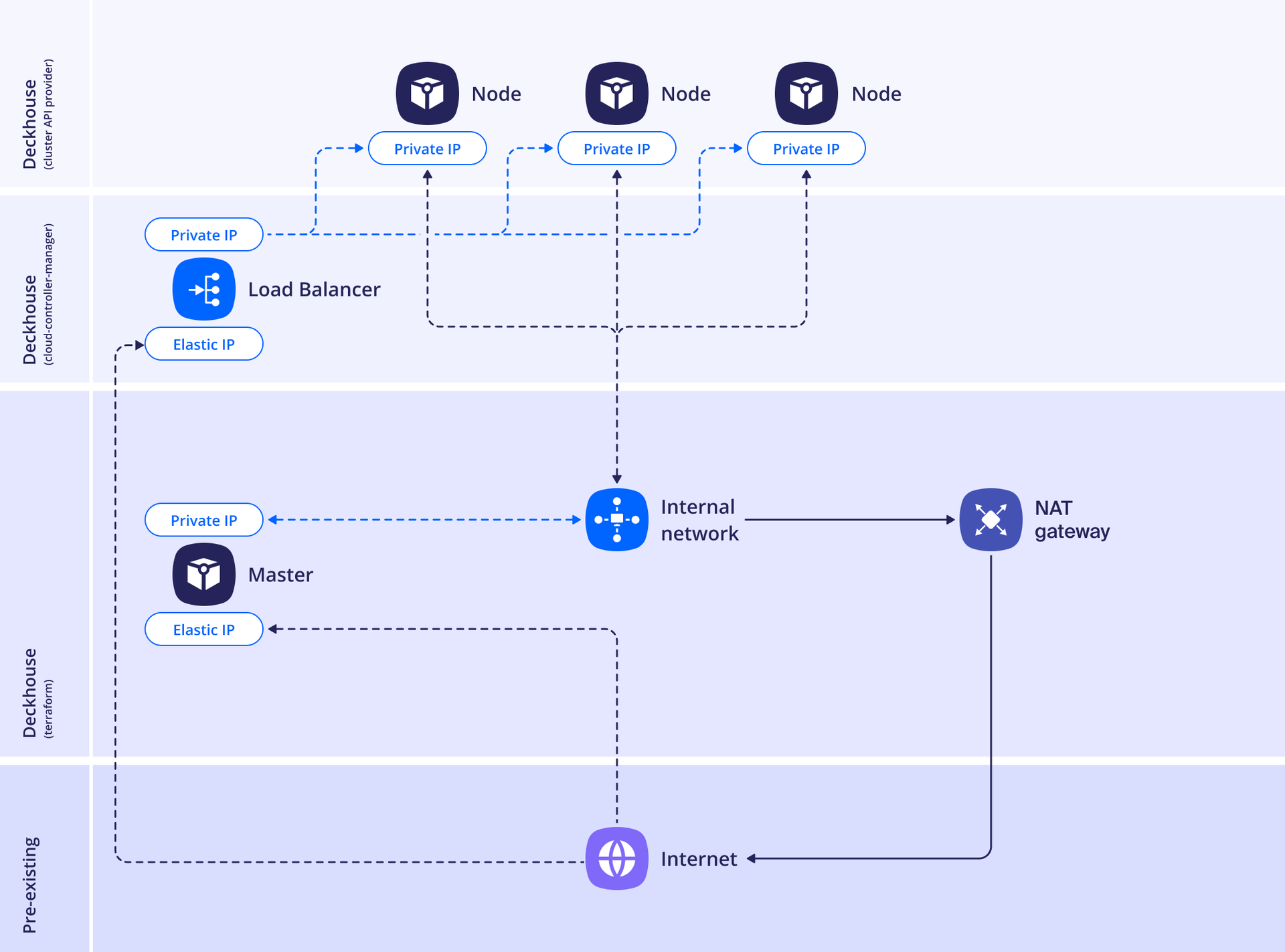

Standard layout

The internalNetworkSecurity parameter (default true) enables the creation of a security group (SecurityGroup) when a cluster is created. The module creates the group named after the cluster prefix and assigns it to the nodes.

The following inbound rules will be created:

  • allow incoming traffic over the TCP protocol on port 22 from 0.0.0.0/0
  • allow incoming traffic over the ICMP protocol from 0.0.0.0/0
  • allow incoming traffic over the TCP protocol on ports 30000–32767 for services of the NodePort type. Inbound UDP traffic to NodePort ports is not allowed by default

Attach custom security groups for CloudEphemeral nodes in the HuaweiCloudInstanceClass resource via spec.securityGroups. They are applied together with the group created by the module.

Example of the layout configuration:

apiVersion: deckhouse.io/v1
kind: HuaweiCloudClusterConfiguration
layout: Standard
sshPublicKey: "<SSH_PUBLIC_KEY>"
standard:
  internalNetworkDNSServers:
    - 8.8.8.8
  internalNetworkCIDR: 192.168.199.0/24
  internalNetworkSecurity: true
  enableEIP: true
provider:
  cloud: hc.sbercloud.ru
  region: ru-moscow-1
  accessKey: "<Access key>"
  secretKey: "<Secret key>"
  projectID: "<Project ID>"
masterNodeGroup:
  replicas: 1
  instanceClass:
    imageName: alt-p11
    flavorName: s7n.xlarge.2
    rootDiskSize: 50
  serverGroup:
    policy: AntiAffinity
  volumeTypeMap:
    ru-moscow-1a: SSD

VpcPeering

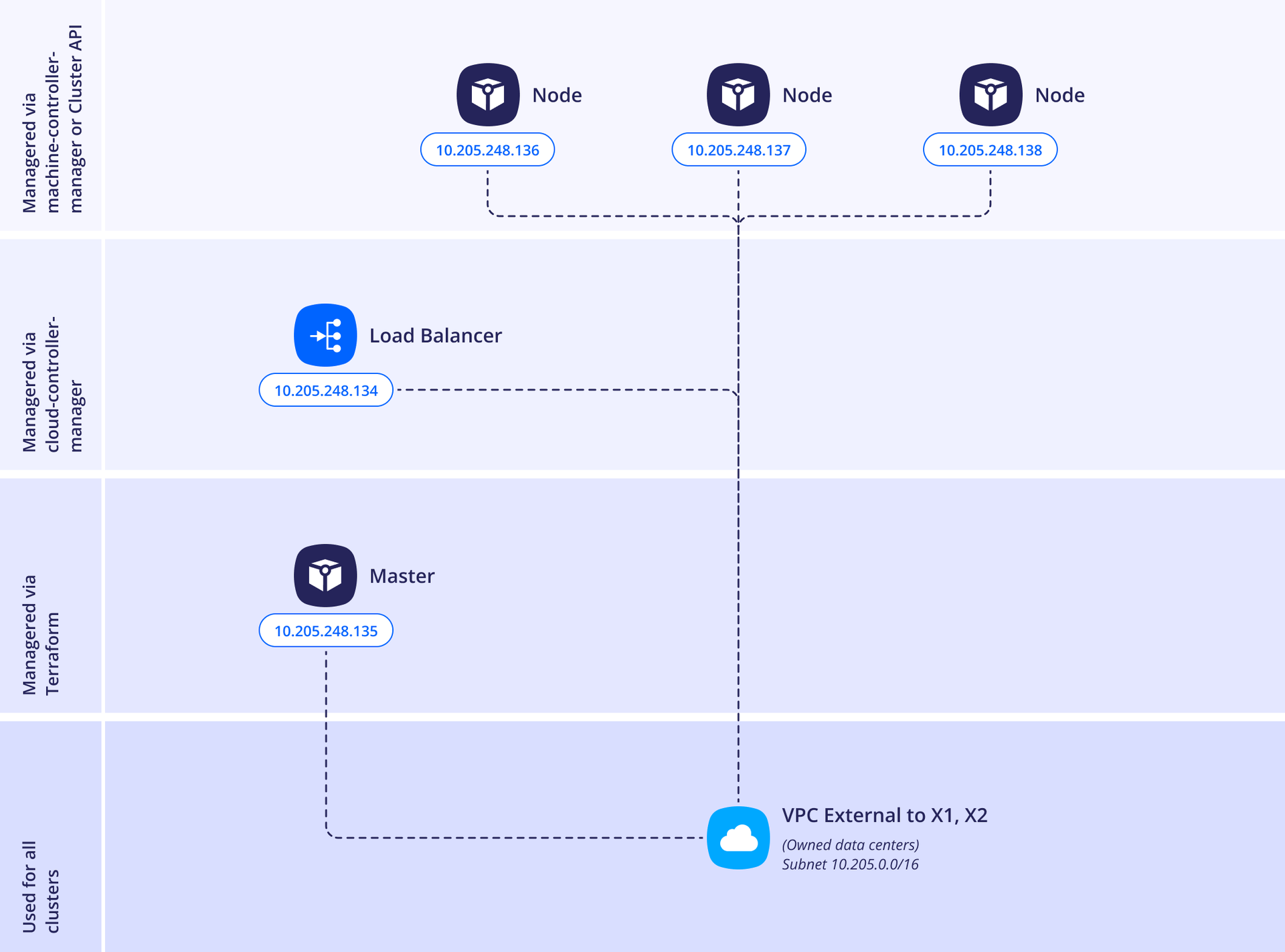

VpcPeering layout

The internalNetworkSecurity parameter (default true) enables the creation of a security group (SecurityGroup) when a cluster is created. The module creates the group named after the cluster prefix and assigns it to the nodes.

The following inbound rules will be created:

  • allow incoming traffic over the TCP protocol on port 22 from 0.0.0.0/0
  • allow incoming traffic over the ICMP protocol from 0.0.0.0/0
  • allow incoming traffic over the TCP protocol on ports 30000–32767 for services of the NodePort type. Inbound UDP traffic to NodePort ports is not allowed by default

Attach custom security groups for CloudEphemeral nodes in the HuaweiCloudInstanceClass resource via spec.securityGroups. They are applied together with the group created by the module.

Example of the layout configuration:

apiVersion: deckhouse.io/v1
kind: HuaweiCloudClusterConfiguration
layout: VpcPeering
sshPublicKey: "<SSH_PUBLIC_KEY>"
vpcPeering:
  internalNetworkDNSServers:
    - 8.8.8.8
  internalNetworkCIDR: 10.221.128.0/24
  internalNetworkSecurity: true
  subnet: subnet-43b4
