The Deckhouse installer is available as a container image and is based on the dhctl utility, which is responsible for:

  • Creating and configuring cloud infrastructure objects using Terraform;
  • Installing necessary OS packages on nodes (including Kubernetes packages);
  • Installing Deckhouse;
  • Creating and configuring nodes for the Kubernetes cluster;
  • Maintaining the cluster state according to the defined configuration.

Deckhouse installation options:

  • In a supported cloud. The dhctl utility automatically creates and configures all necessary resources, including virtual machines, deploys the Kubernetes cluster, and installs Deckhouse. A full list of supported cloud providers is available in the Platform integration with infrastructure section.

  • On bare-metal servers or in unsupported clouds. In this option, dhctl configures the server or virtual machine, deploys the Kubernetes cluster with a single master node, and installs Deckhouse. Additional nodes can be added to the cluster using pre-existing setup scripts.

  • In an existing Kubernetes cluster. If a Kubernetes cluster is already deployed, dhctl installs Deckhouse and integrates it with the existing infrastructure.

Preparing the Infrastructure

Before installation, ensure the following:

  • For bare-metal clusters and unsupported clouds: The server is running an operating system from the supported OS list or a compatible version, and it is accessible via SSH using a key.

  • For supported clouds: Ensure that necessary quotas are available for resource creation and that access credentials to the cloud infrastructure are prepared (these depend on the specific provider).

  • For all installation options: Access to the container registry with Deckhouse images (registry.deckhouse.io or registry.deckhouse.ru) is configured.

Preparing the Configuration

Before starting the Deckhouse installation, you need to prepare the configuration YAML file. This file contains the main parameters for configuring Deckhouse, including information about cluster components, network settings, and integrations, as well as a description of resources to be created after installation (node settings and Ingress controller).

Make sure that the configuration files meet the requirements of your infrastructure and include all the necessary parameters for a correct deployment.

Installation config

The installation configuration YAML file contains parameters for several resources (manifests):

  1. InitConfiguration — initial parameters for Deckhouse configuration, necessary for the proper startup of Deckhouse after installation.

    Key settings specified in this resource:

  2. ClusterConfiguration — general cluster parameters, such as control plane version, network settings, CRI parameters, etc.

    This resource is needed only when Deckhouse is being installed with a pre-deployed Kubernetes cluster. If Deckhouse is being installed in an already existing cluster, this resource is not required.

  3. StaticClusterConfiguration — parameters for Kubernetes clusters deployed on bare-metal servers or virtual machines in unsupported clouds.

    This resource is needed only when Deckhouse is being installed with a pre-deployed Kubernetes cluster. If Deckhouse is being installed in an already existing cluster, this resource is not required.

  4. <CLOUD_PROVIDER>ClusterConfiguration — a set of resources containing configuration parameters for supported cloud providers. These include:
    • Cloud infrastructure access settings (authentication parameters);
    • Resource placement scheme type and parameters;
    • Network settings;
    • Node group creation settings.

    List of cloud provider configuration resources:

  5. ModuleConfig — a set of resources containing configuration parameters for Deckhouse built-in modules.

    If the cluster is initially created with nodes dedicated to specific types of workloads (e.g., system nodes or monitoring nodes), it is recommended to explicitly set the nodeSelector parameter in the configuration of modules that use persistent storage volumes.

    For example, for the prometheus module, the configuration is specified in the nodeSelector parameter.

  6. IngressNginxController — deploying the Ingress controller.

  7. NodeGroup — creating additional node groups.

  8. InstanceClass — adding configuration resources.

  9. ClusterAuthorizationRule, User — setting up roles and users.

An example of the installation config…

apiVersion: deckhouse.io/v1
kind: ClusterConfiguration
clusterType: Cloud
cloud:
  provider: Azure
  prefix: cloud-demo
podSubnetCIDR: 10.111.0.0/16
serviceSubnetCIDR: 10.222.0.0/16
kubernetesVersion: "Automatic"
clusterDomain: cluster.local
---
apiVersion: deckhouse.io/v1
kind: AzureClusterConfiguration
layout: Standard
sshPublicKey: <SSH_PUBLIC_KEY>
vNetCIDR: 10.241.0.0/16
subnetCIDR: 10.241.0.0/24
masterNodeGroup:
  replicas: 3
  instanceClass:
    machineSize: Standard_D4ds_v4
    urn: Canonical:UbuntuServer:18.04-LTS:18.04.202010140
    enableExternalIP: true
provider:
  subscriptionId: <SUBSCRIPTION_ID>
  clientId: <CLIENT_ID>
  clientSecret: <CLIENT_SECRET>
  tenantId: <TENANT_ID>
  location: westeurope
---
apiVersion: deckhouse.io/v1alpha1
kind: ModuleConfig
metadata:
  name: cni-flannel
spec:
  enabled: true
---
apiVersion: deckhouse.io/v1alpha1
kind: ModuleConfig
metadata:
  name: deckhouse
spec:
  enabled: true
  settings:
    releaseChannel: Stable
    bundle: Default
    logLevel: Info
  version: 1
---
apiVersion: deckhouse.io/v1alpha1
kind: ModuleConfig
metadata:
  name: global
spec:
  enabled: true
  settings:
    modules:
      publicDomainTemplate: "%s.k8s.example.com"
  version: 1
---
apiVersion: deckhouse.io/v1alpha1
kind: ModuleConfig
metadata:
  name: node-manager
spec:
  version: 1
  enabled: true
  settings:
    earlyOomEnabled: false
---
apiVersion: deckhouse.io/v1alpha1
kind: ModuleConfig
metadata:
  name: prometheus
spec:
  version: 2
  enabled: true
  # Specify, in case of using dedicated nodes for monitoring.
  # settings:
  #   nodeSelector:
  #     node.deckhouse.io/group: monitoring
---
apiVersion: deckhouse.io/v1
kind: IngressNginxController
metadata:
  name: main
spec:
  ingressClass: "nginx"
  controllerVersion: "1.1"
  inlet: "LoadBalancer"
  nodeSelector:
    node.deckhouse.io/group: worker
---
apiVersion: deckhouse.io/v1
kind: AzureInstanceClass
metadata:
  name: worker
spec:
  machineSize: Standard_F4
---
apiVersion: deckhouse.io/v1
kind: NodeGroup
metadata:
  name: worker
spec:
  cloudInstances:
    classReference:
      kind: AzureInstanceClass
      name: worker
    maxPerZone: 3
    minPerZone: 1
    zones: ["1"]
  nodeType: CloudEphemeral
---
apiVersion: deckhouse.io/v1
kind: ClusterAuthorizationRule
metadata:
  name: admin
spec:
  subjects:
  - kind: User
    name: admin@deckhouse.io
  accessLevel: SuperAdmin
  portForwarding: true
---
apiVersion: deckhouse.io/v1
kind: User
metadata:
  name: admin
spec:
  email: admin@deckhouse.io
  password: '$2a$10$isZrV6uzS6F7eGfaNB1EteLTWky7qxJZfbogRs1egWEPuT1XaOGg2'
---
apiVersion: deckhouse.io/v1alpha1
kind: ModuleConfig
metadata:
  name: deckhouse-admin
spec:
  enabled: true

Post-bootstrap script

After Deckhouse installation is complete, the installer offers the option to run a custom script on one of the master nodes. This script can be used for:

  • Performing additional cluster configurations;
  • Collecting diagnostic information;
  • Integrating with external systems or other tasks.

The path to the post-bootstrap script can be specified using the --post-bootstrap-script-path parameter during the installation process.

Example: a script that retrieves the IP address of the load balancer…

This sample script retrieves the IP address of the load balancer after the cluster is deployed in the cloud and Deckhouse is installed:

#!/usr/bin/env bash

set -e
set -o pipefail


INGRESS_NAME="nginx"


echo_err() { echo "$@" 1>&2; }

# declare the variable
lb_ip=""

# get the load balancer IP
for i in {0..100}
do
  if lb_ip="$(kubectl -n d8-ingress-nginx get svc "${INGRESS_NAME}-load-balancer" -o jsonpath='{.status.loadBalancer.ingress[0].ip}')"; then
    if [ -n "$lb_ip" ]; then
      break
    fi
  fi

  lb_ip=""

  sleep 5
done

if [ -n "$lb_ip" ]; then
  echo_err "The load balancer external IP: $lb_ip"
else
  echo_err "Could not get the external IP of the load balancer"
  exit 1
fi

outContent="{\"frontend_ips\":[\"$lb_ip\"]}"

if [ -z "$OUTPUT" ]; then
  echo_err "The OUTPUT env is empty. The result was not saved to the output file."
else
  echo "$outContent" > "$OUTPUT"
fi

Installing Deckhouse

When installing a commercial edition of Deckhouse Kubernetes Platform from the official container registry registry.deckhouse.io, you must first log in with your license key:

docker login -u license-token registry.deckhouse.io

The command to pull the installer container from the Deckhouse public registry and run it looks as follows:

docker run --pull=always -it [<MOUNT_OPTIONS>] registry.deckhouse.io/deckhouse/<DECKHOUSE_REVISION>/install:<RELEASE_CHANNEL> bash

Where:

  1. <DECKHOUSE_REVISION> — the Deckhouse edition, such as ee for Enterprise Edition, ce for Community Edition, etc.
  2. <MOUNT_OPTIONS> — parameters for mounting files into the installer container, such as:
    • SSH access keys;
    • Configuration file;
    • Resource file, etc.
  3. <RELEASE_CHANNEL> — the release channel in kebab-case format:
    • alpha — for the Alpha release channel;
    • beta — for the Beta release channel;
    • early-access — for the Early Access release channel;
    • stable — for the Stable release channel;
    • rock-solid — for the Rock Solid release channel.

Here is an example of a command to run the installer container for Deckhouse CE:

docker run -it --pull=always \
  -v "$PWD/config.yaml:/config.yaml" \
  -v "$PWD/dhctl-tmp:/tmp/dhctl" \
  -v "$HOME/.ssh/:/tmp/.ssh/" registry.deckhouse.io/deckhouse/ce/install:stable bash

Deckhouse installation is performed within the installer container using the dhctl utility:

  • To start the installation of Deckhouse with the deployment of a new cluster (for all cases except installing into an existing cluster), use the command dhctl bootstrap.
  • To install Deckhouse into an already existing cluster, use the command dhctl bootstrap-phase install-deckhouse.

Run dhctl bootstrap -h to learn more about the parameters available.

Example of running the Deckhouse installation with cloud cluster deployment:

dhctl bootstrap \
  --ssh-user=<SSH_USER> --ssh-agent-private-keys=/tmp/.ssh/id_rsa \
  --config=/config.yml

Where:

  • /config.yml — the installation configuration file;
  • <SSH_USER> — the username for SSH connection to the server;
  • --ssh-agent-private-keys — the private SSH key file for SSH connection.

Pre-Installation Checks

List of checks performed by the installer before starting Deckhouse installation:

  1. General checks:
    • The values of the parameters PublicDomainTemplate and clusterDomain do not match.
    • The authentication data for the container image registry specified in the installation configuration is correct.
    • The host name meets the following requirements:
      • The length does not exceed 63 characters;
      • It consists only of lowercase letters;
      • It does not contain special characters (hyphens - and periods . are allowed, but they cannot be at the beginning or end of the name).
    • The server (VM) has a supported container runtime (containerd) installed.
    • The host name is unique within the cluster.
    • The server’s system time is correct.
    • The address spaces for Pods (podSubnetCIDR) and services (serviceSubnetCIDR) do not intersect.
  2. Checks for static and hybrid cluster installation:
    • Only one --ssh-host parameter is specified. For static cluster configuration, only one IP address can be provided for configuring the first master node.
    • SSH connection is possible using the specified authentication data.
    • SSH tunneling to the master node server (or VM) is possible.
    • The server (VM) selected for the master node installation must meet the minimum system requirements:
      • at least 4 CPU cores;
      • at least 8 GB of RAM;
      • at least 60 GB of disk space with 400+ IOPS performance;
      • Linux kernel version 5.8 or newer;
      • one of the package managers installed: apt, apt-get, yum, or rpm;
      • access to standard OS package repositories.
    • Python is installed on the master node server (VM).
    • The container image registry is accessible through a proxy (if proxy settings are specified in the installation configuration).
    • Required installation ports are free on the master node server (VM) and the installer host.
    • DNS must resolve localhost to IP address 127.0.0.1.
    • The user has sudo privileges on the server (VM).
    • Required ports for the installation must be open:
      • port 22/TCP between the host running the installer and the server;
      • no port conflicts with those used by the installation process.
    • The server (VM) has the correct time.
    • The user deckhouse must not exist on the server (VM).
    • The address spaces for Pods (podSubnetCIDR) services (serviceSubnetCIDR) and internal network (internalNetworkCIDRs) do not intersect.
  3. Checks for cloud cluster installation:
    • The configuration of the virtual machine for the master node meets the minimum requirements.
    • The cloud provider API is accessible from the cluster nodes.
    • For Yandex Cloud deployments with NAT Instance, the configuration for Yandex Cloud with NAT Instance is verified.

List of preflight skip flags…

  • --preflight-skip-all-checks — skip all preflight checks.
  • --preflight-skip-ssh-forward-check — skip the SSH forwarding check.
  • --preflight-skip-availability-ports-check — skip the check for the availability of required ports.
  • --preflight-skip-resolving-localhost-check — skip the localhost resolution check.
  • --preflight-skip-deckhouse-version-check — skip the Deckhouse version check.
  • --preflight-skip-registry-through-proxy — skip the check for access to the registry through a proxy server.
  • --preflight-skip-public-domain-template-check — skip the check for the publicDomain template.
  • --preflight-skip-ssh-credentials-check — skip the check for SSH user credentials.
  • --preflight-skip-registry-credential — skip the check for registry access credentials.
  • --preflight-skip-containerd-exist — skip the check for the existence of containerd.
  • --preflight-skip-python-checks — skip the check for Python installation.
  • --preflight-skip-sudo-allowed — skip the check for sudo privileges.
  • --preflight-skip-system-requirements-check — skip the system requirements check.
  • --preflight-skip-one-ssh-host — skip the check for the number of specified SSH hosts.
  • --preflight-cloud-api-accesibility-check — skip the Cloud API accessibility check.
  • --preflight-time-drift-check — skip the time drift check.
  • --preflight-skip-cidr-intersection — skip the CIDR intersection check.
  • --preflight-skip-deckhouse-user-check — skip deckhouse user existence check.
  • --preflight-skip-yandex-with-nat-instance-check — skip the Yandex Cloud with NAT Instance configuration check.

Example of using the preflight skip flag:

      dhctl bootstrap \
      --ssh-user=<SSH_USER> --ssh-agent-private-keys=/tmp/.ssh/id_rsa \
      --config=/config.yml \
      --preflight-skip-all-checks

Aborting the installation

If the installation was interrupted or issues occurred during the installation process in a supported cloud, there might be leftover resources created during the installation. To remove them, use the dhctl bootstrap-phase abort command within the installer container.

The configuration file provided through the --config parameter when running the installer must be the same one used during the initial installation.

Air-Gapped environment, working via proxy and using external registries

Installing Deckhouse Kubernetes Platform from an external registry

Available in the following editions: BE, SE, SE+, EE, CSE Lite (1.67), CSE Pro (1.67).

DKP supports only the Bearer token authentication scheme for container registries.
The following container registries are tested and officially supported:

Nexus, Harbor, Artifactory, Docker Registry, Quay.

During installation, DKP can be configured to work with an external registry (e.g., a proxy registry in an air-gapped environment).

Set the following parameters in the InitConfiguration resource:

  • imagesRepo: <PROXY_REGISTRY>/<DECKHOUSE_REPO_PATH>/ee — the path to the DKP EE image in the external registry.
    Example: imagesRepo: registry.deckhouse.ru/deckhouse/ee;
  • registryDockerCfg: <BASE64> — base64-encoded Docker config with access credentials to the external registry.

If anonymous access is allowed to DKP images in the external registry, the registryDockerCfg should look like this:

{"auths": { "<PROXY_REGISTRY>": {}}}

The provided value must be Base64-encoded.

If authentication is required to access DKP images in the external registry, the registryDockerCfg should look like this:

{"auths": { "<PROXY_REGISTRY>": {"username":"<PROXY_USERNAME>","password":"<PROXY_PASSWORD>","auth":"<AUTH_BASE64>"}}}

where:

  • <PROXY_USERNAME> — the username for authenticating to <PROXY_REGISTRY>;
  • <PROXY_PASSWORD> — the password for authenticating to <PROXY_REGISTRY>;
  • <PROXY_REGISTRY> — the address of the external registry in the format <HOSTNAME>[:PORT];
  • <AUTH_BASE64> — a Base64-encoded string of <PROXY_USERNAME>:<PROXY_PASSWORD>.

The final value for registryDockerCfg must also be Base64-encoded.

You can use the following script to generate the registryDockerCfg:

declare MYUSER='<PROXY_USERNAME>'
declare MYPASSWORD='<PROXY_PASSWORD>'
declare MYREGISTRY='<PROXY_REGISTRY>'
MYAUTH=$(echo -n "$MYUSER:$MYPASSWORD" | base64 -w0)
MYRESULTSTRING=$(echo -n "{\"auths\":{\"$MYREGISTRY\":{\"username\":\"$MYUSER\",\"password\":\"$MYPASSWORD\",\"auth\":\"$MYAUTH\"}}}" | base64 -w0)
echo "$MYRESULTSTRING"

Custom external registry configuration

To support non-standard configurations of external registries, the InitConfiguration resource provides two additional parameters:

  • registryCA — a root certificate to validate the registry’s certificate (used if the registry uses self-signed certificates);
  • registryScheme — the protocol used to access the registry (HTTP or HTTPS). Defaults to HTTPS.

Nexus configuration notes

When interacting with a docker-type repository in Nexus (e.g., using docker pull or docker push), you must specify the address in the format <NEXUS_URL>:<REPOSITORY_PORT>/<PATH>.
Using the URL value from the Nexus repository settings is not supported.

When using the Nexus repository manager, the following requirements must be met:

  • A proxy Docker repository must be created (AdministrationRepositoryRepositories):
    • Set the Maximum metadata age parameter to 0.
  • Access control must be configured:
    • Create a role named Nexus (AdministrationSecurityRoles) with the following privileges:
      • nx-repository-view-docker-<repository>-browse
      • nx-repository-view-docker-<repository>-read
    • Create a user (AdministrationSecurityUsers) and assign them the Nexus role.

Setup Steps:

  1. Create a proxy Docker repository (AdministrationRepositoryRepositories) that points to the Deckhouse registry:

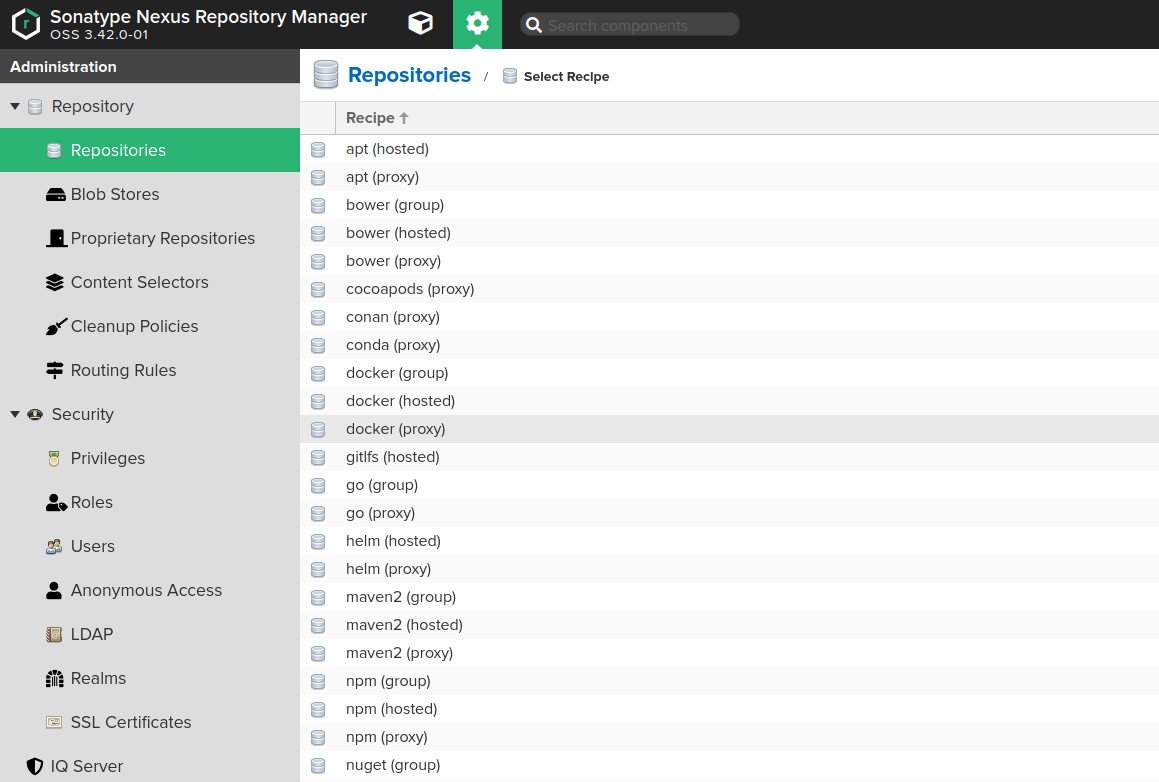

    Create Proxy Docker Repository

  2. Fill out the repository creation form with the following values:
    • Name: the desired repository name, e.g., d8-proxy.
    • Repository Connectors / HTTP or HTTPS: a dedicated port for the new repository, e.g., 8123 or another.
    • Remote storage: must be set to https://registry.deckhouse.ru/.
    • Auto blocking enabled and Not found cache enabled: can be disabled for debugging; otherwise, enable them.
    • Maximum Metadata Age: must be set to 0.
    • If using a commercial edition of Deckhouse Kubernetes Platform, enable the Authentication checkbox and fill in the following:
      • Authentication Type: Username
      • Username: license-token
      • Password: your Deckhouse Kubernetes Platform license key

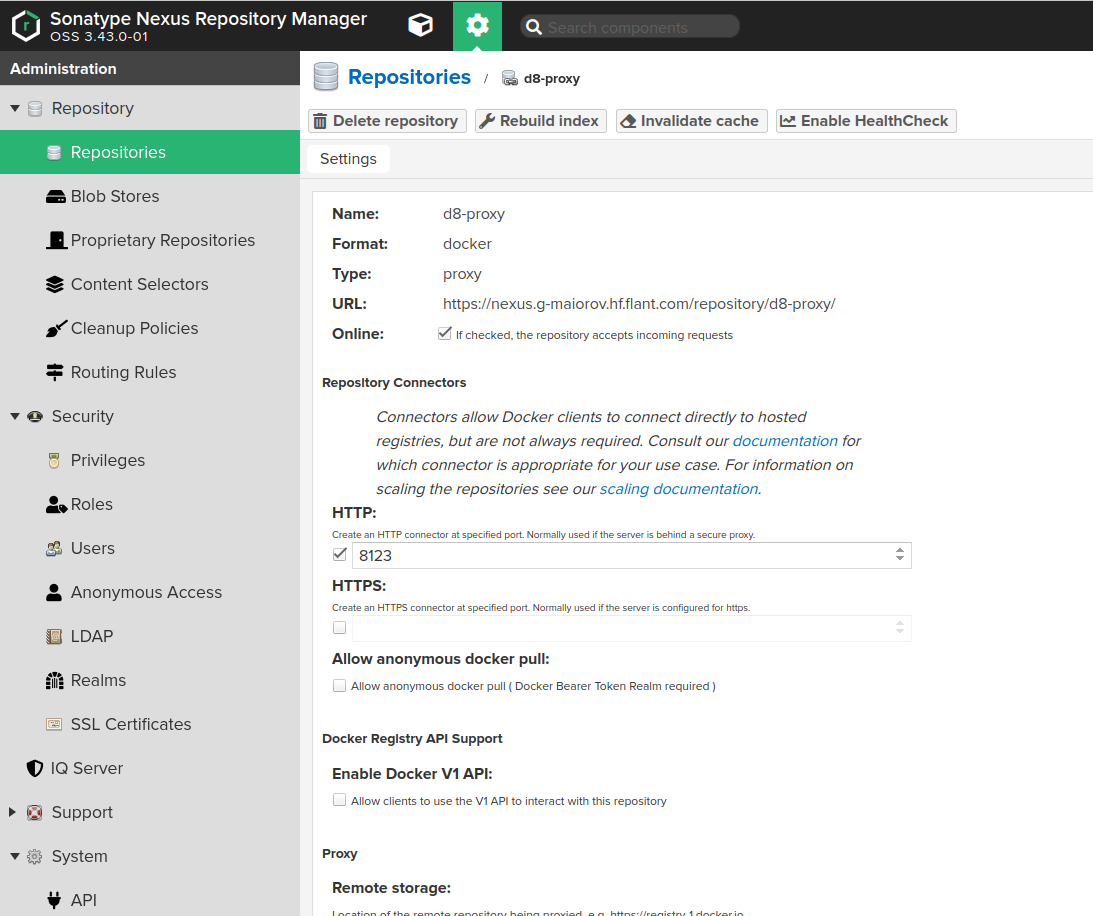

    Example repository settings 1

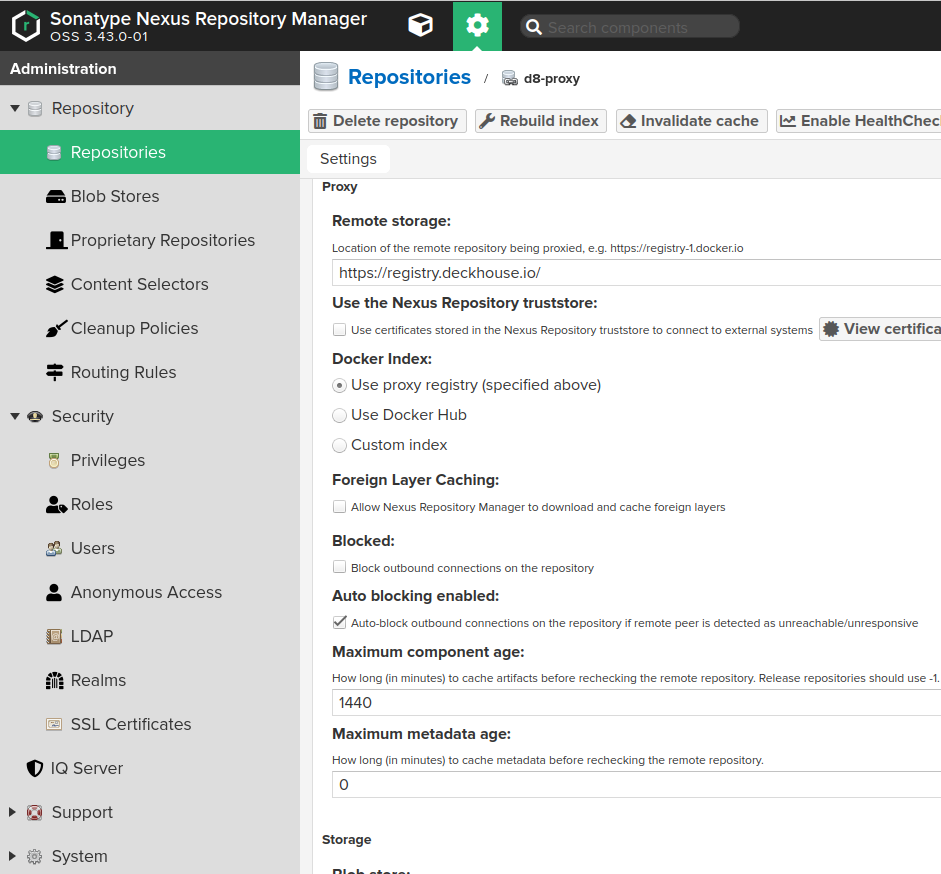

    Example repository settings 2

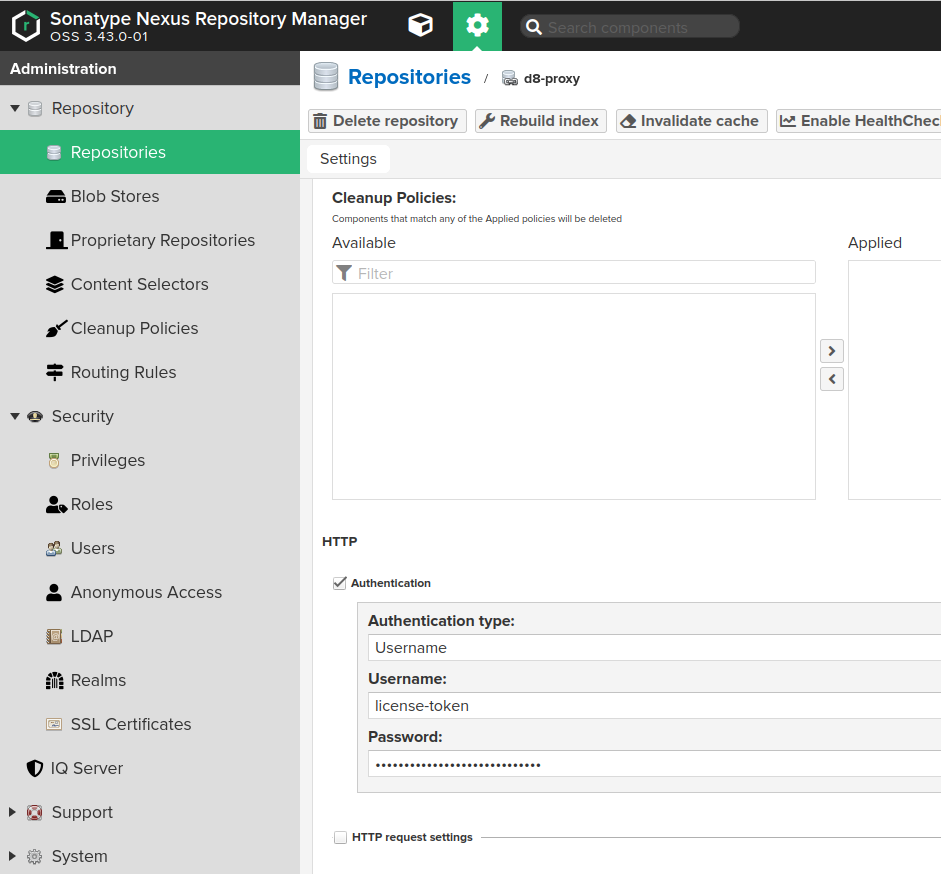

    Example repository settings 3

  3. Configure Nexus access control to allow DKP to access the created repository:

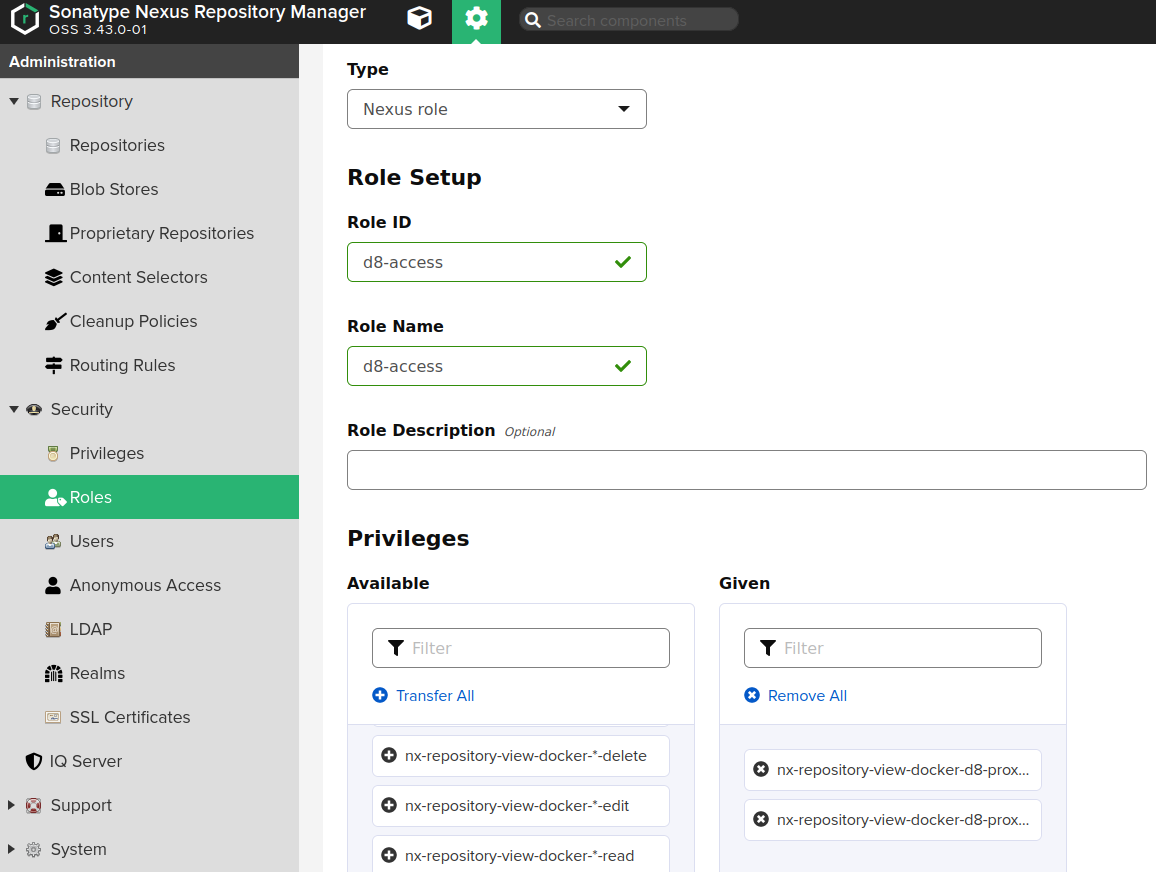

    • Create a Nexus role (AdministrationSecurityRoles) with the following privileges:
      nx-repository-view-docker-<repository>-browse and nx-repository-view-docker-<repository>-read.

      Create Nexus Role

    • Create a user (AdministrationSecurityUsers) and assign them the role created above.

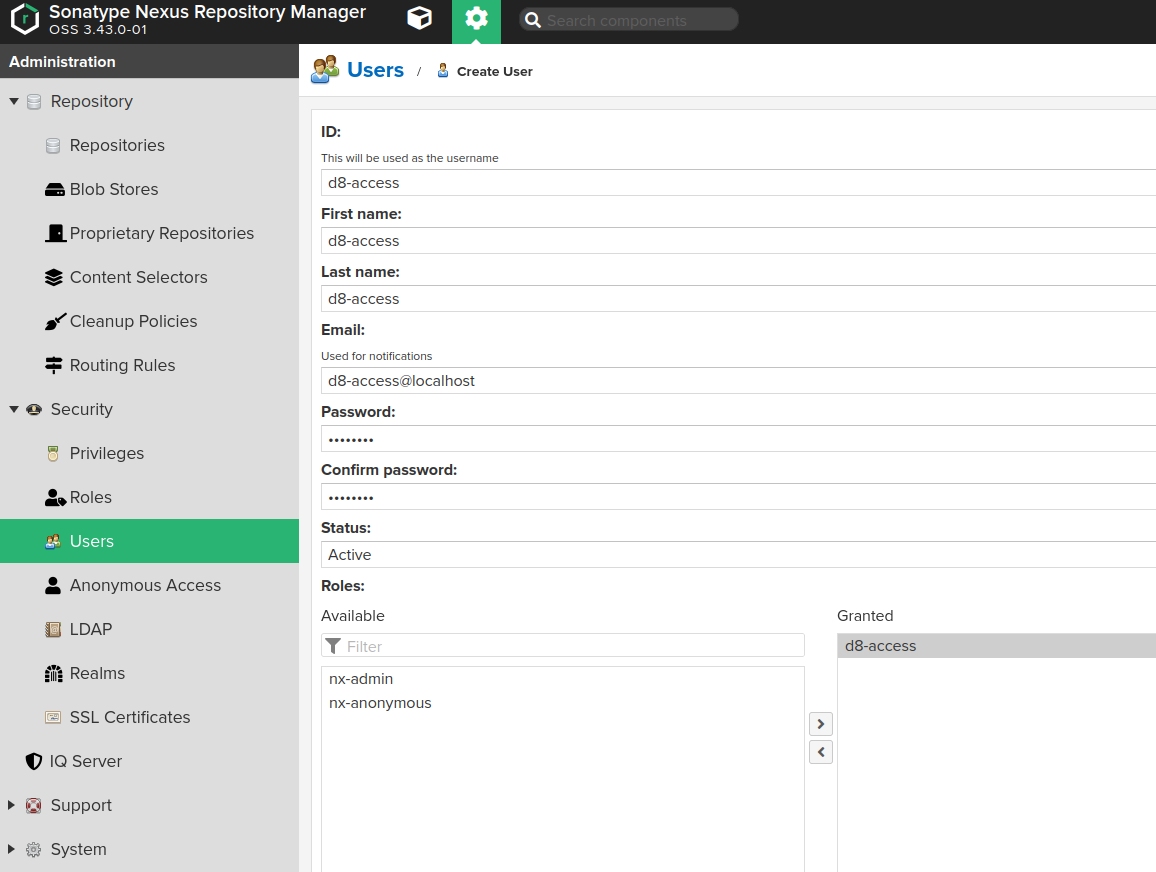

      Create Nexus User

      As a result, DKP images will be available at a URL like: https://<NEXUS_HOST>:<REPOSITORY_PORT>/deckhouse/ee:<d8s-version>.

Harbor configuration notes

Use the Harbor Proxy Cache feature.

  • Configure the registry:
    • Go to AdministrationRegistriesNew Endpoint.
    • Provider: Docker Registry.
    • Name: arbitrary value of your choice.
    • Endpoint URL: https://registry.deckhouse.ru.
    • Set Access ID and Access Secret (your Deckhouse Kubernetes Platform license key).

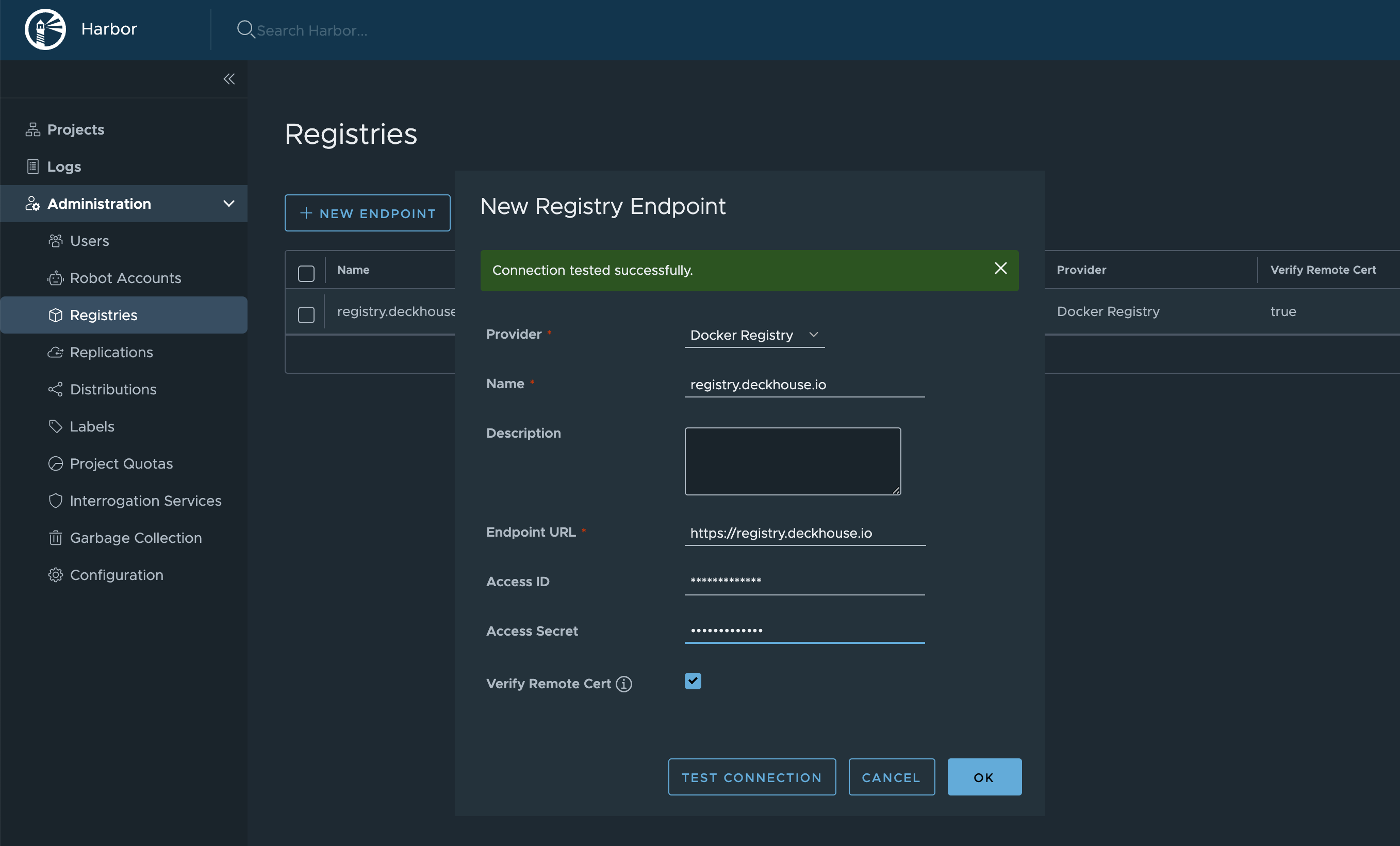

      Registry Configuration

  • Create a new project:
    • Navigate to Projects → New Project.
    • Project Name will be part of the URL. Choose any name, e.g., d8s.
    • Access Level: Public.
    • Enable Proxy Cache and select the registry created in the previous step.

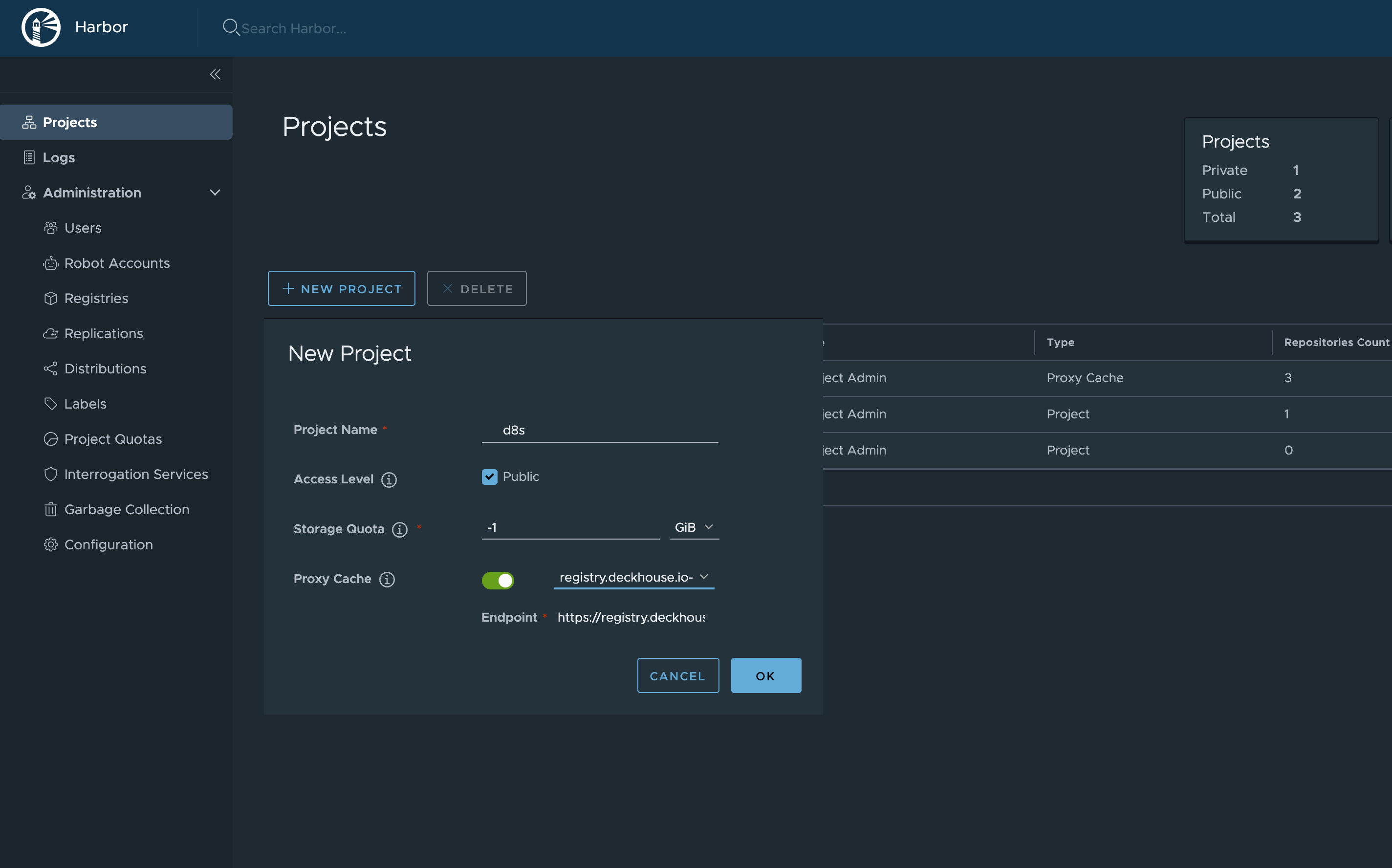

      Create New Project

      As a result, DKP images will be available at a URL like: https://your-harbor.com/d8s/deckhouse/ee:{d8s-version}.

Manual loading of Deckhouse Kubernetes Platform images, vulnerability scanner DB, and DKP modules into a private registry

The d8 mirror utility is not available for use with the Community Edition (CE) and Basic Edition (BE).

You can check the current status of versions in the release channels at releases.deckhouse.ru.

  1. Download and install the Deckhouse CLI utility.

  2. Download DKP images to a dedicated directory using the d8 mirror pull command.

    By default, d8 mirror pull downloads only the current versions of DKP, vulnerability scanner databases (if included in the DKP edition), and officially delivered modules.

    For example, for Deckhouse Kubernetes Platform 1.59, only version 1.59.12 will be downloaded, as it is sufficient for upgrading the platform from 1.58 to 1.59.

    Run the following command (specify the edition code and license key) to download the current version images:

    d8 mirror pull \
      --source='registry.deckhouse.ru/deckhouse/<EDITION>' \
      --license='<LICENSE_KEY>' /home/user/d8-bundle


    where:

    • <EDITION> — Deckhouse Kubernetes Platform edition code (e.g., ee, se, se-plus). By default, the --source parameter refers to the Enterprise Edition (ee) and can be omitted;
    • <LICENSE_KEY> — Deckhouse Kubernetes Platform license key;
    • /home/user/d8-bundle — directory where the image packages will be placed. It will be created if it does not exist.

    If the image download is interrupted, rerunning the command will resume the download, provided no more than one day has passed since the interruption.

    You can also use the following command options:

    • --no-pull-resume — force the download to start from the beginning;
    • --no-platform — skip downloading the Deckhouse Kubernetes Platform image package (platform.tar);
    • --no-modules — skip downloading module packages (module-*.tar);
    • --no-security-db — skip downloading the vulnerability scanner database package (security.tar);
    • --include-module / -i = name[@Major.Minor] — download only a specific set of modules using a whitelist (and, if needed, their minimum versions). Use multiple times to add more modules to the whitelist. These flags are ignored if used with --no-modules.

      The following syntax options are supported for specifying module versions:

      • module-name@1.3.0 — pulls versions with semver ^ constraint (^1.3.0), including v1.3.0, v1.3.3, v1.4.1;
      • module-name@~1.3.0 — pulls versions with semver ~ constraint (>=1.3.0 <1.4.0), including only v1.3.0, v1.3.3;
      • module-name@=v1.3.0 — pulls exact tag match v1.3.0, publishing to all release channels;
      • module-name@=bobV1 — pulls exact tag match “bobV1”, publishing to all release channels;
    • --exclude-module / -e = name — skip downloading a specific set of modules using a blacklist. Use multiple times to add more modules to the blacklist. Ignored if --no-modules or --include-module is used;
    • --modules-path-suffix — change the suffix of the path to the module repository in the main DKP registry. The default suffix is /modules (e.g., full path to the module repo will be registry.deckhouse.ru/deckhouse/EDITION/modules);
    • --since-version=X.Y — download all DKP versions starting from the specified minor version. This option is ignored if the specified version is higher than the version on the Rock Solid update channel. Cannot be used with --deckhouse-tag;
    • --deckhouse-tag — download only the specific DKP version (regardless of update channels). Cannot be used with --since-version;
    • --gost-digest — calculate the checksum of the final DKP image bundle using the GOST R 34.11-2012 (Streebog) algorithm. The checksum will be displayed and written to a .tar.gostsum file in the folder containing the image tarball;
    • --source — specify the source image registry address (default: registry.deckhouse.ru/deckhouse/ee);
    • use the --license parameter with a valid license key to authenticate with the official DKP image registry;
    • use the --source-login and --source-password parameters to authenticate with an external image registry;
    • --images-bundle-chunk-size=N — set the maximum file size (in GB) to split the image archive. As a result, instead of one image archive, a set of .chunk files will be created (e.g., d8.tar.NNNN.chunk). To upload images from such a set, use the file name without the .NNNN.chunk suffix (e.g., d8.tar for files d8.tar.NNNN.chunk);
    • --tmp-dir — path to a directory for temporary files used during image download and upload. All processing is done in this directory. It must have enough free disk space to hold the entire image bundle. Defaults to the .tmp subdirectory in the image bundle directory.

    Additional configuration parameters for the d8 mirror command family are available as environment variables:

    • HTTP_PROXY / HTTPS_PROXY — proxy server URL for HTTP(S) requests not listed in the $NO_PROXY variable;
    • NO_PROXY — comma-separated list of hosts to exclude from proxying. Each entry can be an IP (1.2.3.4), CIDR (1.2.3.4/8), domain, or wildcard (*). IPs and domains may include a port (1.2.3.4:80). A domain matches itself and all subdomains. A domain starting with a . matches only subdomains. For example, foo.com matches foo.com and bar.foo.com; .y.com matches x.y.com but not y.com. The * disables proxying;
    • SSL_CERT_FILE — path to an SSL certificate. If set, system certificates are not used;
    • SSL_CERT_DIR — colon-separated list of directories to search for SSL certificate files. If set, system certificates are not used. More info…;
    • MIRROR_BYPASS_ACCESS_CHECKS — set this variable to 1 to disable credential validation for the registry;

    Example command to download all DKP EE versions starting from version 1.59 (specify your license key):

    d8 mirror pull \
    --license='<LICENSE_KEY>' \
    --since-version=1.59 /home/user/d8-bundle


    Example command to download the current DKP SE versions (specify your license key):

    d8 mirror pull \
    --license='<LICENSE_KEY>' \
    --source='registry.deckhouse.ru/deckhouse/se' \
    /home/user/d8-bundle


    Example command to download DKP images from an external image registry:

    d8 mirror pull \
    --source='corp.company.com:5000/sys/deckhouse' \
    --source-login='<USER>' --source-password='<PASSWORD>' /home/user/d8-bundle


    Example command to download the vulnerability scanner database package:

    d8 mirror pull \
    --license='<LICENSE_KEY>' \
    --no-platform --no-modules /home/user/d8-bundle


    Example command to download all available additional module packages:

    d8 mirror pull \
    --license='<LICENSE_KEY>' \
    --no-platform --no-security-db /home/user/d8-bundle


    Example command to download module packages stronghold and secrets-store-integration:

    d8 mirror pull \
    --license='<LICENSE_KEY>' \
    --no-platform --no-security-db \
    --include-module stronghold \
    --include-module secrets-store-integration \
    /home/user/d8-bundle


    Example command to download stronghold module with semver ^ constraint from version 1.2.0:

    d8 mirror pull \
    --license='<LICENSE_KEY>' \
    --no-platform --no-security-db \
    --include-module stronghold@1.2.0 \
    /home/user/d8-bundle


    Example command to download secrets-store-integration module with semver ~ constraint from version 1.1.0:

    d8 mirror pull \
    --license='<LICENSE_KEY>' \
    --no-platform --no-security-db \
    --include-module secrets-store-integration@~1.1.0 \
    /home/user/d8-bundle


    Example command to download exact version of stronghold module 1.2.5 and publish to all release channels:

    d8 mirror pull \
    --license='<LICENSE_KEY>' \
    --no-platform --no-security-db \
    --include-module stronghold@=v1.2.5 \
    /home/user/d8-bundle

  3. On the host with access to the registry where DKP images should be uploaded, copy the downloaded DKP image bundle and install the Deckhouse CLI.

  4. Copy the downloaded DKP image bundle and install the Deckhouse CLI on the host that has access to the target image registry.

  5. Upload the DKP images to the registry using the d8 mirror push command.

    The d8 mirror push command uploads images from all packages located in the specified directory. If you only want to push specific packages, you can either run the command separately for each .tar image bundle by specifying the direct path to it, or temporarily remove the .tar extension from unwanted files or move them out of the directory.

    Example command to upload image packages from the /mnt/MEDIA/d8-images directory (provide authentication data if required):

    d8 mirror push /mnt/MEDIA/d8-images 'corp.company.com:5000/sys/deckhouse' \
      --registry-login='<USER>' --registry-password='<PASSWORD>'


    Before uploading the images, make sure that the target path in the image registry exists (in the example — /sys/deckhouse) and that the account used has write permissions.

    If you’re using Harbor, you won’t be able to upload images to the root of a project. Use a dedicated repository within the project to store DKP images.

  6. After uploading the images to the registry, you can proceed with installing DKP. Use the Quick Start Guide.

    When running the installer, use the address of your own image registry (where the images were uploaded earlier) instead of the official public DKP registry. For the example above, the installer image address will be corp.company.com:5000/sys/deckhouse/install:stable instead of registry.deckhouse.ru/deckhouse/ee/install:stable.

    In the InitConfiguration resource during installation, also use your registry address and authorization data (parameters imagesRepo, registryDockerCfg, or Step 3 of the Quick Start Guide).

Creating a cluster and running DKP without using update channels

This method should only be used if your isolated private registry does not contain images with update channel metadata.

If you need to install DKP with automatic updates disabled:

  1. Use the installer image tag corresponding to the desired version. For example, to install release v1.44.3, use the image your.private.registry.com/deckhouse/install:v1.44.3.
  2. Specify the appropriate version number in the deckhouse.devBranch parameter of the InitConfiguration resource.

    Do not specify the deckhouse.releaseChannel parameter in the InitConfiguration resource.

If you want to disable automatic updates in an already running Deckhouse installation (including patch updates), remove the releaseChannel parameter from the deckhouse module configuration.

Using a proxy server

Available in the following editions: BE, SE, SE+, EE, CSE Lite (1.67), CSE Pro (1.67).

Example steps for configuring a proxy server using Squid…

  1. Prepare a server (or virtual machine). The server must be reachable from the required cluster nodes and must have internet access.
  2. Install Squid (the following examples are for Ubuntu):

    apt-get install squid

  3. Create the Squid configuration file:

    cat <<EOF > /etc/squid/squid.conf
    auth_param basic program /usr/lib/squid3/basic_ncsa_auth /etc/squid/passwords
    auth_param basic realm proxy
    acl authenticated proxy_auth REQUIRED
    http_access allow authenticated
    # Specify the required port. Port 3128 is used by default.
    http_port 3128

  4. Create a username and password for proxy server authentication:

    Example for user test with password test (make sure to change it):

    echo "test:$(openssl passwd -crypt test)" >> /etc/squid/passwords

  5. Start Squid and enable it to start on server boot:

    systemctl restart squid
    systemctl enable squid


To configure DKP to use a proxy, use the proxy parameter in the ClusterConfiguration resource.

Example:

apiVersion: deckhouse.io/v1
kind: ClusterConfiguration
clusterType: Cloud
cloud:
  provider: OpenStack
  prefix: main
podSubnetCIDR: 10.111.0.0/16
serviceSubnetCIDR: 10.222.0.0/16
kubernetesVersion: "Automatic"
cri: "Containerd"
clusterDomain: "cluster.local"
proxy:
  httpProxy: "http://user:password@proxy.company.my:3128"
  httpsProxy: "https://user:password@proxy.company.my:8443"

Automatic proxy variable loading for users in CLI

Starting from DKP v1.67, the /etc/profile.d/d8-system-proxy.sh file is no longer configured to set proxy variables for users.
To automatically load proxy variables for users in CLI, use the NodeGroupConfiguration resource:

apiVersion: deckhouse.io/v1alpha1
kind: NodeGroupConfiguration
metadata:
  name: profile-proxy.sh
spec:
  bundles:
    - '*'
  nodeGroups:
    - '*'
  weight: 99
  content: |
    {{- if .proxy }}
      {{- if .proxy.httpProxy }}
    export HTTP_PROXY={{ .proxy.httpProxy | quote }}
    export http_proxy=${HTTP_PROXY}
      {{- end }}
      {{- if .proxy.httpsProxy }}
    export HTTPS_PROXY={{ .proxy.httpsProxy | quote }}
    export https_proxy=${HTTPS_PROXY}
      {{- end }}
      {{- if .proxy.noProxy }}
    export NO_PROXY={{ .proxy.noProxy | join "," | quote }}
    export no_proxy=${NO_PROXY}
      {{- end }}
    bb-sync-file /etc/profile.d/profile-proxy.sh - << EOF
    export HTTP_PROXY=${HTTP_PROXY}
    export http_proxy=${HTTP_PROXY}
    export HTTPS_PROXY=${HTTPS_PROXY}
    export https_proxy=${HTTPS_PROXY}
    export NO_PROXY=${NO_PROXY}
    export no_proxy=${NO_PROXY}
    EOF
    {{- else }}
    rm -rf /etc/profile.d/profile-proxy.sh
    {{- end }}
