External Vault integration

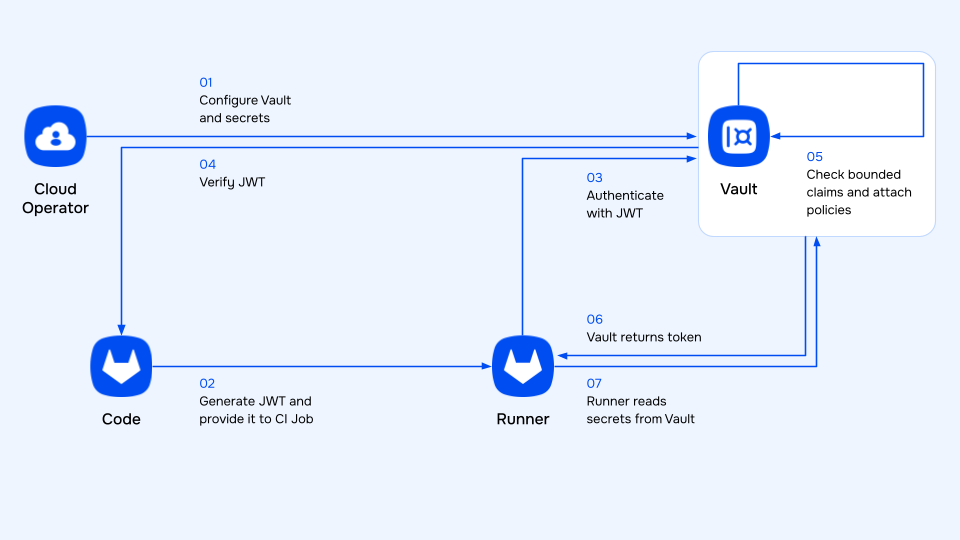

This feature allows you to configure integration with a Vault server and use secrets in CI pipelines. Before getting started, you need to configure the Vault server and create the appropriate roles and policies.

Vault configuration

1. Enable JWT authentication:

   vault auth enable jwt

   vault write auth/jwt/config \
     oidc_discovery_url="https://code.example.com" \
     bound_issuer="https://code.example.com" \
     default_role="gitlab-role"


2. Create a role:

   vault write auth/jwt/role/gitlab-role - <<EOF
   {
     "role_type": "jwt",
     "user_claim": "sub",
     "bound_audiences": ["vault"],
     "bound_claims": {
       "project_id": "23"
     },
     "policies": ["gitlab-policy"],
     "ttl": "1h"
   }
   EOF


   Always use bound_claims to restrict access to the role. Otherwise, any JWT issued by the platform will be able to authenticate using this role.

3. Create a policy:

   vault policy write gitlab-policy - <<EOF
   path "kv/data/code/vault-demo" {
     capabilities = ["read"]
   }
   EOF


CI configuration

Environment variables

To work correctly with Vault in a CI/CD pipeline, you need to define the following environment variables:

• VAULT_SERVER_URL — required. The URL of the Vault server (e.g., https://vault.example.com).
• VAULT_AUTH_ROLE — optional. The name of the role in Vault. If not specified, the default role configured for the authentication method will be used.
• VAULT_AUTH_PATH — optional. Path to the authentication method in Vault. Defaults to jwt.
• VAULT_NAMESPACE — optional. Vault namespace, if a multi-level hierarchy is used.

Using secrets in CI

To retrieve secrets from Vault, you can use the following job template:

stages:
  - test
vault-login:
  stage: test
  image: ruby:3.2
  id_tokens:
    VAULT_ID_TOKEN:
      aud: vault
  secrets:
    DATABASE_PASSWORD:
      vault: code/vault-demo/DATABASE_PASSWORD@kv
      token: $VAULT_ID_TOKEN
  script: echo $DATABASE_PASSWORD

Secret parameters

Example:

DATABASE_PASSWORD:
  vault: code/vault-demo/DATABASE_PASSWORD@kv
  token: $VAULT_ID_TOKEN
  file: false

Parameter details:

1. vault (required) — the path to the secret in the string format path/to/secret/KEY@ENGINE, where:
   • code/vault-demo/ — the path to the secret in Vault;
   • DATABASE_PASSWORD — the name of the field inside the secret;
   • kv — the mount point of the secret engine (default is secret).

By default, the kv-v2 engine is used. If you need to use a different engine, you can specify it as an object instead of a string:

DATABASE_PASSWORD:
  vault:
    path: code/vault-demo
    field: DATABASE_PASSWORD
    engine:
      name: 'kv-v1'
      path: 'kv1'
  token: $VAULT_ID_TOKEN
  file: false

1. token (required) — a JWT token from the id_tokens section used to authenticate with Vault.

2. file (optional, defaults to true) — defines how the secret is provided:

   • true — the secret is saved to a temporary file;
   • false — the secret is passed as a string to an environment variable.

JWT claims

The following fields are automatically included in the JWT token and can be used by Vault to validate access rights:

Quick start

This section provides an example of the minimum required configuration for integrating HashiCorp Vault with Deckhouse Code and verifying that a CI job can retrieve secrets from Vault.

Step 1. Set environment variables

Set the environment variables for Vault and Deckhouse Code. Some parameters can be left unchanged, but VAULT_ADDR, VAULT_TOKEN, CODE_URL, and PROJECT_PATH must be set manually.

export VAULT_ADDR="https://vault.example.com"
export VAULT_TOKEN="<your-token>"

# Deckhouse Code URL.
export CODE_URL="https://code.example.com"

# Vault role and policy names.
export VAULT_ROLE="code-role"
export VAULT_POLICY="code-policy"

# Secret path and data.
export VAULT_SECRET_PATH="code/vault-demo"
export VAULT_SECRET_FIELD="DATABASE_PASSWORD"
export VAULT_SECRET_VALUE="super-secret-password"

# Value of the project_path claim that Vault will validate.

export PROJECT_PATH="root/my-pr"

Step 2. Enable the JWT authentication method

Enable the JWT authentication method in Vault. Without it, Vault will not be able to accept ID tokens that Deckhouse Code passes to CI jobs.

curl \
  -H "X-Vault-Token: $VAULT_TOKEN" \
  -X POST "$VAULT_ADDR/v1/sys/auth/jwt" \
  -d '{"type":"jwt"}'

Step 3. Configure JWT and OIDC

The following request:

• Sets the OIDC discovery URL ($CODE_URL).
• Specifies the expected issuer.
• Defines the default role that Vault issues during authentication.

curl \
  -H "X-Vault-Token: $VAULT_TOKEN" \
  -X POST "$VAULT_ADDR/v1/auth/jwt/config" \
  --data @- <<EOF
{
  "oidc_discovery_url": "$CODE_URL",
  "bound_issuer": "$CODE_URL",
  "default_role": "$VAULT_ROLE"
}
EOF

Step 4. Mount the KV v2 secret engine

KV v2 is the most commonly used Vault secret engine. The following request enables it at the /kv path:

curl \
  -H "X-Vault-Token: $VAULT_TOKEN" \
  -X POST "$VAULT_ADDR/v1/sys/mounts/kv" \
  -d '{"type": "kv-v2"}'

Step 5. Create a test secret

Create a secret that will later be read by a CI job. The secret is stored at the code/vault-demo path and contains a single field.

curl \
  -H "X-Vault-Token: $VAULT_TOKEN" \
  -X POST "$VAULT_ADDR/v1/kv/data/$VAULT_SECRET_PATH" \
  --data @- <<EOF
{
  "data": {
    "$VAULT_SECRET_FIELD": "$VAULT_SECRET_VALUE"
  }
}
EOF

Step 6. Create an ACL policy

The policy defines which paths in Vault can be accessed. In the following example, the policy grants read-only access to the specified secret.

curl \
  -H "X-Vault-Token: $VAULT_TOKEN" \
  -X PUT "$VAULT_ADDR/v1/sys/policies/acl/$VAULT_POLICY" \
  --data @- <<EOF
{
  "policy": "path \"kv/data/$VAULT_SECRET_PATH\" { capabilities = [\"read\"] }"
}
EOF

Step 7. Create a Vault role

The role defines:

• Authentication type
• Required claims in the token (project_path)
• Policies granted to the authenticated subject
• Allowed audiences (aud)
• Token TTL

Deckhouse Code will issue an ID token with aud=vault, and Vault will verify that the project_path value matches the configured one.

curl \
  -H "X-Vault-Token: $VAULT_TOKEN" \
  -X POST "$VAULT_ADDR/v1/auth/jwt/role/$VAULT_ROLE" \
  --data @- <<EOF
{
  "role_type":   "jwt",
  "user_claim":  "sub",
  "bound_audiences": ["vault"],

  "bound_claims": {
    "project_path": "$PROJECT_PATH"
  },

  "policies": ["$VAULT_POLICY"],
  "ttl": "1h"
}
EOF

At this point, the Vault configuration is complete.

Testing the integration in Deckhouse Code

1. Open the project specified in PROJECT_PATH. The project CI token must match the project_path claim. Otherwise, Vault will deny access to secrets.

2. In the project CI/CD settings, add the VAULT_SERVER_URL variable with the value of $VAULT_ADDR used earlier. This variable tells Deckhouse Code where to send Vault API requests.

3. Create the .gitlab-ci.yml file. The file runs a test CI job that:

   • Obtains an ID token with aud=vault.
   • Passes it to Vault.
   • Retrieves a secret from KV.
   • Outputs the secret value.

   stages:
     - test

   vault-demo:
     stage: test
     image: alpine
     id_tokens:
       VAULT_ID_TOKEN:
         aud: vault
     secrets:
       DATABASE_PASSWORD:
         vault: code/vault-demo/DATABASE_PASSWORD@kv
         token: $VAULT_ID_TOKEN
         file: false
     script:
       - echo "Raw value (masked by GitLab):"
       - echo "$DATABASE_PASSWORD"

       - echo
       - echo "Value with spaces (not masked):"
       - printf '%s\n' "$DATABASE_PASSWORD" | sed 's/./& /g'


Result

If the integration is configured correctly:

• The CI job successfully obtains an ID token.
• Vault validates the project_path value and grants access.
• The secret is retrieved and printed to the log.

In the job output, you will see the value of the DATABASE_PASSWORD field loaded directly from Vault.
