Three layouts are supported. Below is more information about each of them.

Standard

In this placement strategy, nodes do not have public IP addresses allocated to them; they use NAT gateway service in Yandex Cloud to connect to the Internet.

Yandex Cloud Standard Layout scheme

Example of the layout configuration:

apiVersion: deckhouse.io/v1
kind: YandexClusterConfiguration
layout: Standard
sshPublicKey: "<SSH_PUBLIC_KEY>"
nodeNetworkCIDR: 192.168.12.13/24
existingNetworkID: <EXISTING_NETWORK_ID>
provider:
  cloudID: <CLOUD_ID>
  folderID: <FOLDER_ID>
  serviceAccountJSON: |
    {
    "id": "id",
    "service_account_id": "service_account_id",
    "key_algorithm": "RSA_2048",
    "public_key": "-----BEGIN PUBLIC KEY-----\nMIIwID....AQAB\n-----END PUBLIC KEY-----\n",
    "private_key": "-----BEGIN PRIVATE KEY-----\nMIIE....1ZPJeBLt+\n-----END PRIVATE KEY-----\n"
    }
masterNodeGroup:
  replicas: 3
  zones:
  - ru-central1-a
  - ru-central1-b
  - ru-central1-d
  instanceClass:
    cores: 4
    memory: 8192
    imageID: <IMAGE_ID>
    externalIPAddresses:
    - "<ZONE_A_EXTERNAL_IP_MASTER_1>"
    - "Auto"
    - "Auto"
    externalSubnetIDs:
    - <ZONE_A_SUBNET_ID>
    - <ZONE_B_SUBNET_ID>
    - <ZONE_D_SUBNET_ID>
    additionalLabels:
      takes: priority
nodeGroups:
- name: worker
  replicas: 2
  zones:
  - ru-central1-a
  - ru-central1-b
  instanceClass:
    cores: 4
    memory: 8192
    imageID: <IMAGE_ID>
    coreFraction: 50
    externalIPAddresses:
    - "Auto"
    - "Auto"
    externalSubnetIDs:
    - <ZONE_A_SUBNET_ID>
    - <ZONE_B_SUBNET_ID>
    additionalLabels:
      role: example
labels:
  billing: prod
dhcpOptions:
  domainName: test.local
  domainNameServers:
  - <DNS_SERVER_1>
  - <DNS_SERVER_2>

WithoutNAT

In this layout, NAT (of any kind) is not used, and each node is assigned a public IP.

Caution! Currently, the cloud-provider-yandex module does not support Security Groups; thus, is why all cluster nodes connect directly to the Internet.

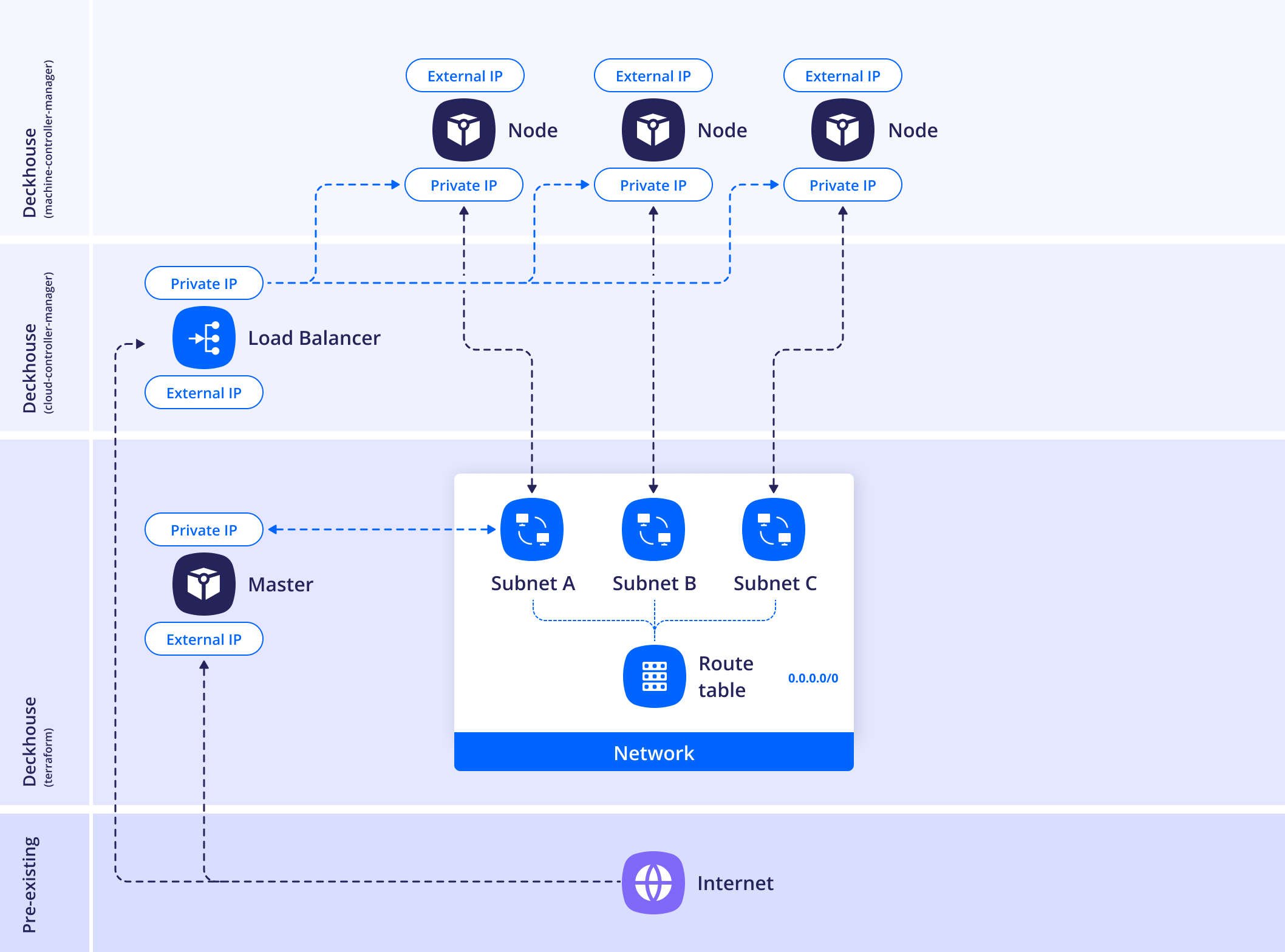

Yandex Cloud WithoutNAT Layout scheme

Example of the layout configuration:

apiVersion: deckhouse.io/v1
kind: YandexClusterConfiguration
layout: WithoutNAT
provider:
  cloudID: <CLOUD_ID>
  folderID: <FOLDER_ID>
  serviceAccountJSON: |
    {
    "id": "id",
    "service_account_id": "service_account_id",
    "key_algorithm": "RSA_2048",
    "public_key": "-----BEGIN PUBLIC KEY-----\nMIIwID....AQAB\n-----END PUBLIC KEY-----\n",
    "private_key": "-----BEGIN PRIVATE KEY-----\nMIIE....1ZPJeBLt+\n-----END PRIVATE KEY-----\n"
    }
masterNodeGroup:
  replicas: 3
  instanceClass:
    cores: 4
    memory: 8192
    imageID: <IMAGE_ID>
    externalIPAddresses:
    - "Auto"
    - "Auto"
    - "Auto"
    externalSubnetIDs:
    - <ZONE_A_SUBNET_ID>
    - <ZONE_B_SUBNET_ID>
    - <ZONE_D_SUBNET_ID>
    zones:
    - ru-central1-a
    - ru-central1-b
    - ru-central1-d
nodeGroups:
- name: worker
  replicas: 2
  instanceClass:
    cores: 4
    memory: 8192
    imageID: <IMAGE_ID>
    coreFraction: 50
    externalIPAddresses:
    - "<ZONE_A_EXTERNAL_IP_WORKER_1>"
    - "Auto"
    externalSubnetIDs:
    - <ZONE_A_SUBNET_ID>
    - <ZONE_B_SUBNET_ID>
    zones:
    - ru-central1-a
    - ru-central1-b
sshPublicKey: "<SSH_PUBLIC_KEY>"
nodeNetworkCIDR: 192.168.12.13/24
existingNetworkID: <EXISTING_NETWORK_ID>
dhcpOptions:
  domainName: test.local
  domainNameServers:
  - <DNS_SERVER_1>
  - <DNS_SERVER_2>

WithNATInstance

In this placement strategy, Deckhouse creates a NAT instance and adds a rule to a route table containing a route to 0.0.0.0/0 with a NAT instance as the next hop.

If the withNATInstance.externalSubnetID parameter is set, the NAT instance will be created in this subnet.

IF the withNATInstance.externalSubnetID parameter is not set and withNATInstance.internalSubnetID is set, the NAT instance will be created in this last subnet.

If neither withNATInstance.externalSubnetID nor withNATInstance.internalSubnetID is set, the NAT instance will be created in the ru-central1-a zone.

If the IP address of the NAT-instance does not matter, you can pass an empty object withNATInstance: {}, then the necessary networks and dynamic IP will be created automatically.

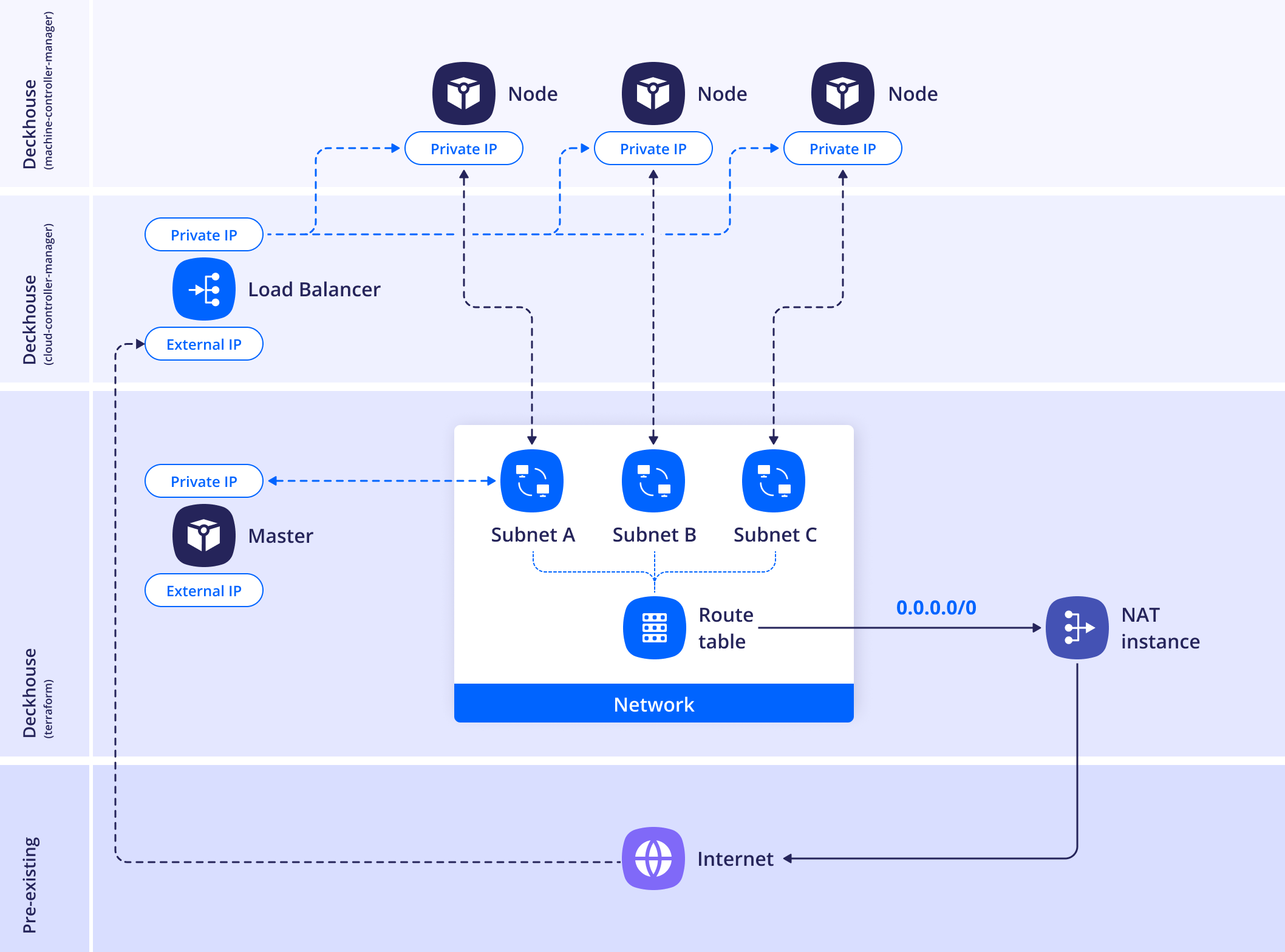

Yandex Cloud WithNATInstance Layout scheme

Example of the layout configuration:

apiVersion: deckhouse.io/v1
kind: YandexClusterConfiguration
layout: WithNATInstance
withNATInstance:
  natInstanceExternalAddress: <NAT_INSTANCE_EXTERNAL_ADDRESS>
  internalSubnetID: <INTERNAL_SUBNET_ID>
  externalSubnetID: <EXTERNAL_SUBNET_ID>
provider:
  cloudID: <CLOUD_ID>
  folderID: <FOLDER_ID>
  serviceAccountJSON: |
    {
    "id": "id",
    "service_account_id": "service_account_id",
    "key_algorithm": "RSA_2048",
    "public_key": "-----BEGIN PUBLIC KEY-----\nMIIwID....AQAB\n-----END PUBLIC KEY-----\n",
    "private_key": "-----BEGIN PRIVATE KEY-----\nMIIE....1ZPJeBLt+\n-----END PRIVATE KEY-----\n"
    }
masterNodeGroup:
  replicas: 1
  instanceClass:
    cores: 4
    memory: 8192
    imageID: <IMAGE_ID>
    externalIPAddresses:
    - "Auto"
    externalSubnetID: <EXTERNAL_SUBNET_ID>
    zones:
    - ru-central1-a
nodeGroups:
- name: worker
  replicas: 1
  instanceClass:
    cores: 4
    memory: 8192
    imageID: <IMAGE_ID>
    coreFraction: 50
    externalIPAddresses:
    - "Auto"
    externalSubnetID: <EXTERNAL_SUBNET_ID>
    zones:
    - ru-central1-a
sshPublicKey: "<SSH_PUBLIC_KEY>"
nodeNetworkCIDR: 192.168.12.13/24
existingNetworkID: <EXISTING_NETWORK_ID>
dhcpOptions:
  domainName: test.local
  domainNameServers:
  - <DNS_SERVER_1>
  - <DNS_SERVER_2>
