Getting started

Here is minimum required configuration(so-called happy path) to get Deckhouse Code running and ready

Minimum requirements

The following requirements must be met to run the Code module:

Deckhouse cluster resources

Minimum resources are calculated for 100 users (the minimum supported scaling.targetUserCount):

For high availability (HA) installations, plan for at least double the resources.

For more details on scaling, refer to the scaling documentation.

External dependencies

• PostgreSQL version 17 or higher
• Redis version 7.0 or higher
• S3 storage (YCloud or Generic providers)

Other components

• A StorageClass for storing Git repositories (gitData.storageClass parameter)
• An IngressClass for routing external traffic to the Code web interface

Enable module

Enable the code module in your Deckhouse Kubernetes Cluster to get code-operator installed. You might use ModuleConfig to achieve that. Example below:

apiVersion: deckhouse.io/v1alpha1
kind: ModuleConfig
metadata:
  name: code
spec:
  enabled: true # whether to enable this module or not
  version: 1
  settings:
    logLevel: Info

Configure dependencies

You need to install and configure dependencies: postgres, redis and s3 storage.

Few configuration notices:

• Postgres
  • Deckhouse Code requires 2 different databases to be provided from postgres cluster: main and the small one for praefect component
  • Postgres extensions to be enabled: btree_gist, pg_trgm, plpgsql
  • Connections per user should be not less than 150
  • More information and examples are here
• Redis
  • Supports either direct connection or sentinels (Sentinel level authorization is not supported, only node level)
  • More information and examples are here
• S3 storage
  • User policy must contain following permissions: s3:ListAllMyBuckets, s3:ListBucket, s3:GetObject, s3:PutObject, s3:DeleteObject
  • If provided credentials don’t have enough permissions to create needed buckets, then they required to be created manually. Default s3 bucket names are below:
    • d8-code-artifacts
    • d8-code-ci-secure-files
    • d8-code-mr-diffs
    • d8-code-git-lfs
    • d8-code-packages
    • d8-code-terraform-state
    • d8-code-uploads
    • d8-code-pages (if pages is enabled)
  • More information and examples are here

Prepare Kubernetes nodes

Managing placement of Deckhouse components

By default, CRD resources are placed on nodes with label node-role.deckhouse.io/code=. To disable this behaviour set spec.placement.dedicated: false in CodeInstance resource.

Apply CodeInstance custom resource

code-operator handles installation and configuration of Deckhouse Code based on CodeInstance custom resource. Example below:

Currently, the system supports only one CodeInstance, and it must be named code (see example below).

Note that passwords must be enclosed in double quotes.

apiVersion: deckhouse.io/v1
kind: CodeInstance
metadata:
   name: code
spec:
  scaling:
    targetUserCount: 100
  storages:
    s3: # only external is supported for now
      mode: External
      external:
        provider: YCloud # Generic
        accessKey: "<REPLACE_ME>" # accessKey of SA having access to S3
        secretKey: "<REPLACE_ME>" # secretKey of SA having access to S3
    postgres: # only external is supported for now
      mode: External
      external:
        host: <REPLACE_ME>  # URL of postgres-master node
        port: 5432 # might differ depending on your postgres settings
        database: <REPLACE_ME> # database name
        username: <REPLACE_ME> # database username
        password: "<REPLACE_ME>" # database password in plain text
        praefectDatabase: "<REPLACE_ME>" # name of praefect database
        praefectUsername: <REPLACE_ME> # username for praefect database
        praefectPassword: "<REPLACE_ME>" # password for praefect database
    redis: # only external is supported for now
      mode: External
      external:
        host: <REPLACE_ME> # for raw redis cluster. Host URL
        port: 6379
        auth:
          enabled: true
          password: "<REPLACE_ME>" # password in plain text
  gitData:
    storageClass: <REPLACE_ME> # storage class available for your setup
    storagePerReplicaGb: 10

Verify CodeInstance is applied correctly

To verify that the module started correctly, follow these steps:

1. Check the operator logs for errors:

   kubectl -n d8-code logs deploy/code-operator | grep error

   You may see an error message about a missing PostgreSQL extension: "controller-runtime.reconcile.preflight-shared","message":"Missing required extensions: [btree_gin]"

   This message is not critical and can be safely ignored.

2. Check the status of migration pods:

   kubectl -n d8-code get pods | grep migration-v

   All pods should have the Completed status.

3. Check the status of all other pods in the d8-code namespace:

   kubectl -n d8-code get pods

   All pods except those with the migration- prefix should have the Running status.

Pod startup time depends on your Deckhouse cluster’s capacity and resources. On average, it takes 3–4 minutes.

First launch

Create DNS records

• If spec.network.web.hostname is not set in CodeInstance, the web interface will be available at the address based on Deckhouse global settings: code.company.my.

• If spec.network.web.hostname is set in CodeInstance, the web interface will be available at that address. Create an A-type DNS record pointing to the IP address of the Ingress controller serving code. To find the IP address of the Ingress controller, run: kubectl -n d8-code get ingress webservice-default.

• For advanced CodeInstance configurations, refer to the network documentation.

Get the root password for Code

kubectl -n d8-code get secret initial-root-password -oyaml | yq .data.password | base64 -d

This command outputs the password for the root user.

Other section

CodeInstance custom resource provides much more configuration options to consider. All of them are described in openapi-spec. Let’s walk through each root-level CR key and get high-level description of their purposes.

Network

All sort of network-related configuration issues addressed at this section. You can specify custom CA certificates, overwrite ingress hostnames, manage HAProxy loadbalancer in front of the app and much more depending on your cluster configuration Refer to this page to get more details.

GitData

Deckhouse code uses gitaly to store your git repositories. All settings related to how repositories storage configured are stored here.

Backup

Adhoc and regular backups to s3 support. All configurations related to backup/restore process are here. Kindly check also this doc to get more information on how backup/restore process goes.

Scaling

Scaling support. All vertical and horizontal scaling properties are stored here. Vertical scaling stands for number of active users the app capable to process and horizontal scaling primarly stands for high availability and fault tolerance. Refer here for more details

AppConfig

We exposed some gitlab config-file properties AS-IS to our CodeInstance custom resource. All of them are under this section.

Features

Additionally, such features as pages, registry and incoming/outgoing/service_desk email support provided. Their configuration options available here. Please also check this doc to get more information on how to configure auth

Code components overview

Section provides high-level overview of existing components and their functions

1. Gitaly - git RPC service for handling all Git calls made by GitLab
2. Praefect - a transparent proxy between any Git client and Gitaly storage nodes.
3. Sidekiq - background jobs processor
4. Webservice - exposes product UI and public API
5. Webservice-internal-api - serves API request from other components of Gitlab
6. Shell - a program designed at GitLab to handle SSH-based git sessions, and modifies the list of authorized keys
7. Toolbox - a swiss-knife that enables administrators to do restore from backups or use rails-console
8. Exporter - process designed in house that allows us to export metrics about Code application internals to Prometheus
9. MRA - stands for merge request approval. A service that implements corresponding Gitlab functionality along with CODEOWNERS feature
10. Migrations-job - job that does database migrations
11. Backup - cronjob - cronjob responsible for backup process. Optional component
12. Pages - a feature that allows you to publish static websites directly from a repository in GitLab. Optional component
13. Registry - Container registry, allows pushing and pulling of images. Optional component
14. HAProxy - if used, serves as single entry proxy for all ingress traffic. Optional component

Bolded are mandatory components

To learn more about specific components and their purposes you can do here in official documentation.

Code components schema

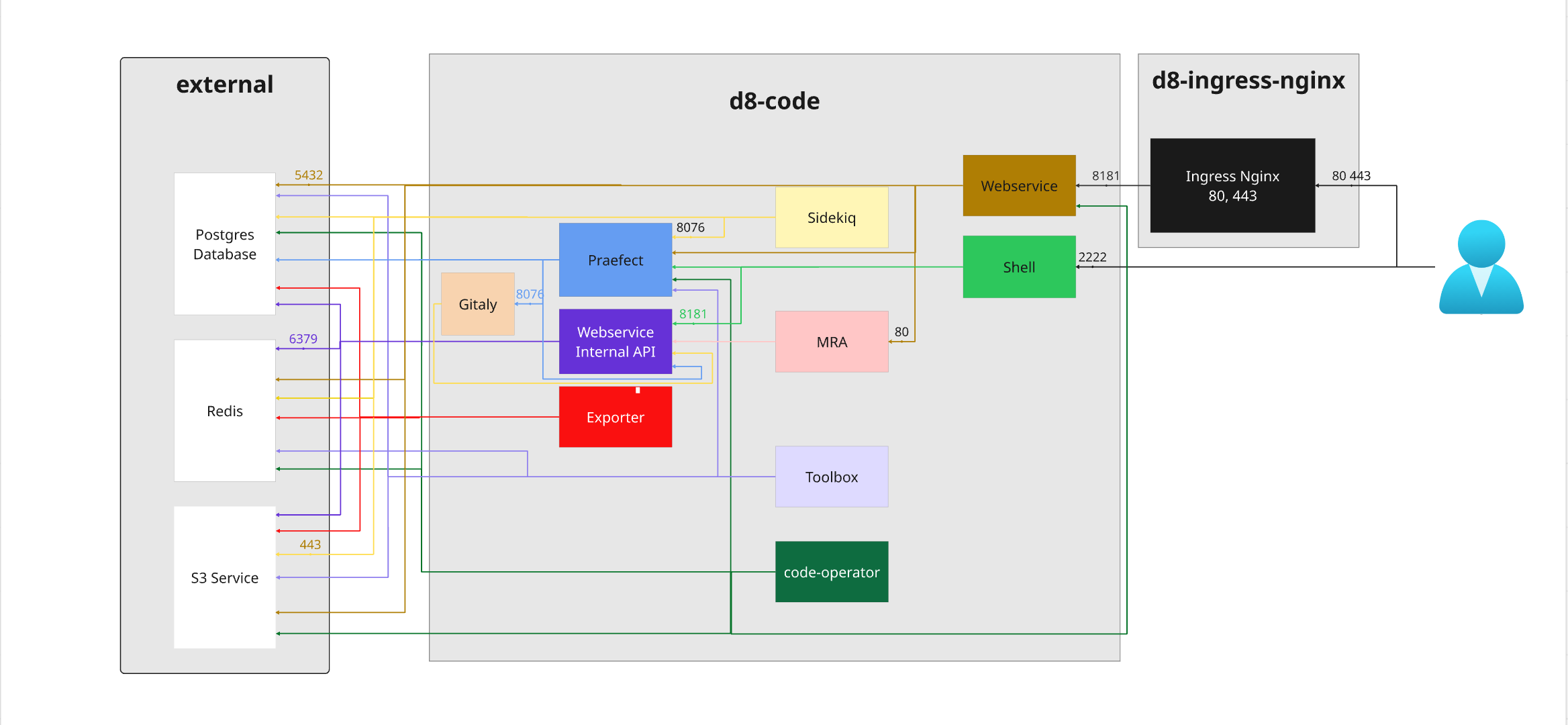

Minimal setup

Only mandatory components included

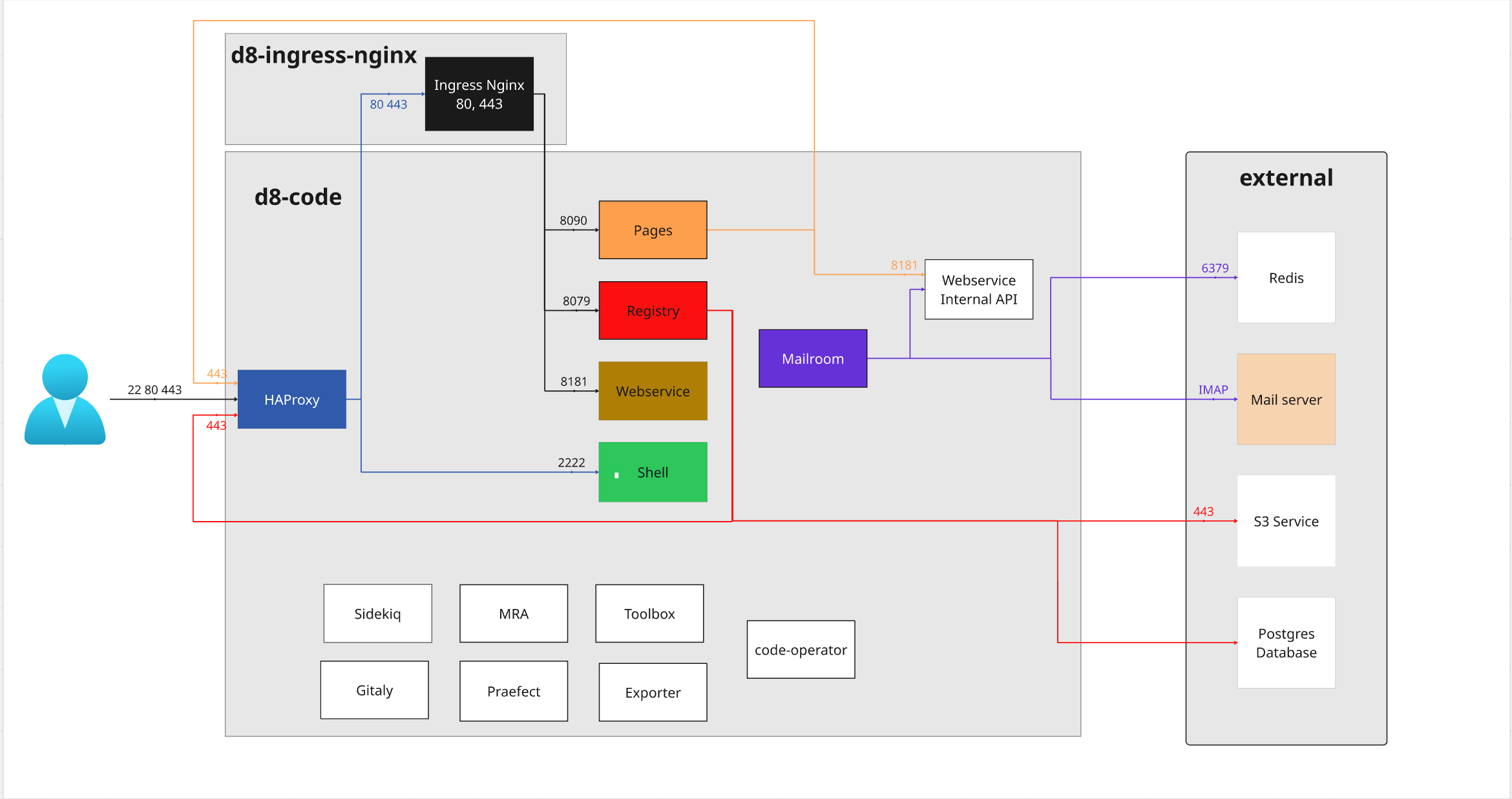

Full setup

All optional components included
