The cloud-provider-yandex module is responsible for interacting with the Yandex Cloud cloud resources. It allows the node manager module to use Yandex Cloud resources for provisioning nodes for the defined node group (a group of nodes that are acted upon as if they were a single entity).

The cloud-provider-yandex module:

  • Manages Yandex Cloud resources using the cloud-controller-manager (CCM) module:
    • The CCM module creates network routes for the PodNetwork network on the Yandex Cloud side.
    • The CCM module updates the Yandex Cloud Instances and Kubernetes Nodes metadata and deletes from Kubernetes nodes that no longer exist in Yandex Cloud.
  • Provisions disks in Yandex Cloud using the CSI storage component.
  • Registers with the node-manager module so that YandexInstanceClasses can be used when creating the NodeGroup.
  • Enables the necessary CNI plugin (using the simple bridge).

Yandex Cloud integration

Configuring security groups

When creating a cloud network, Yandex Cloud creates a default security group for all networks, including the Deckhouse Kubernetes Platform cluster network. The default security group contains rules that allow for any traffic to pass in any direction (inbound and outbound) and applies to all subnets within the cloud network, unless an object (VM interface) is explicitly assigned to a different security group. You can change the default security group rules if you need to control traffic in your cluster.

Do not delete the default rules that allow for traffic to pass in any direction before finishing configuring all the other rules for the security group. Doing so may disrupt the performance of the cluster.

This section provides general guidelines for setting up a security group. Incorrect configuration of security groups may affect the performance of the cluster. Please consult security group usage details in Yandex Cloud before using it in production environments.

  1. Find out in which cloud network the Deckhouse Kubernetes Platform cluster is running.

    The network name matches the prefix field of the ClusterConfiguration resource. It can be retrieved using the following command:

    kubectl get secrets -n kube-system d8-cluster-configuration -ojson | \
  jq -r '.data."cluster-configuration.yaml"' | base64 -d | grep prefix | cut -d: -f2

  2. In the Yandex Cloud console, select the Virtual Private Cloud service and navigate to the Security Groups section. You should see a single security group labeled Default.

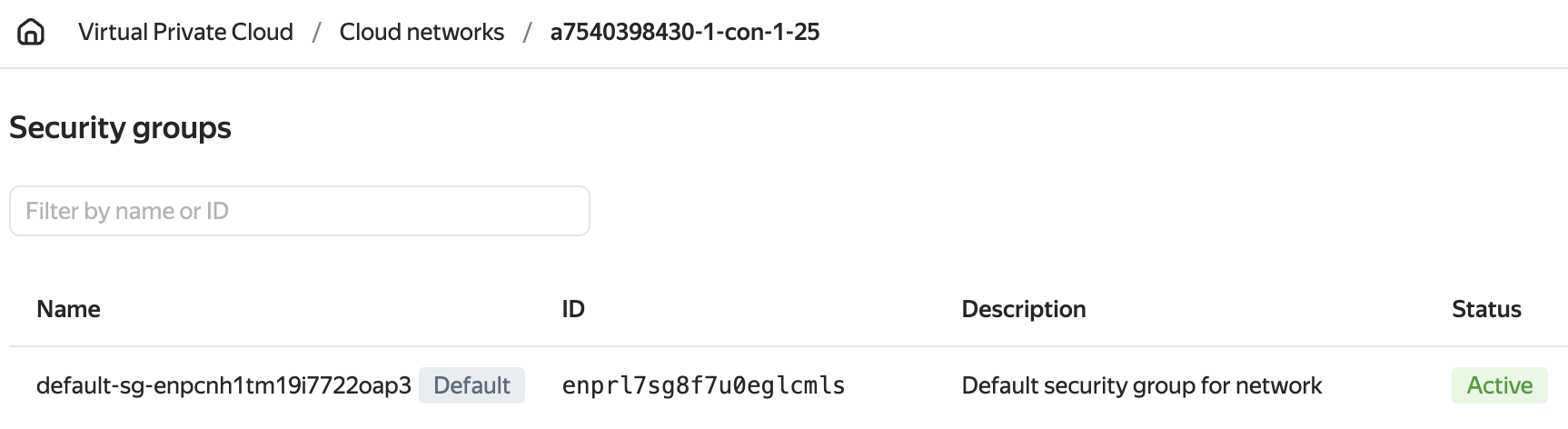

    The default security group

  3. Create rules as described in Yandex Cloud instructions.

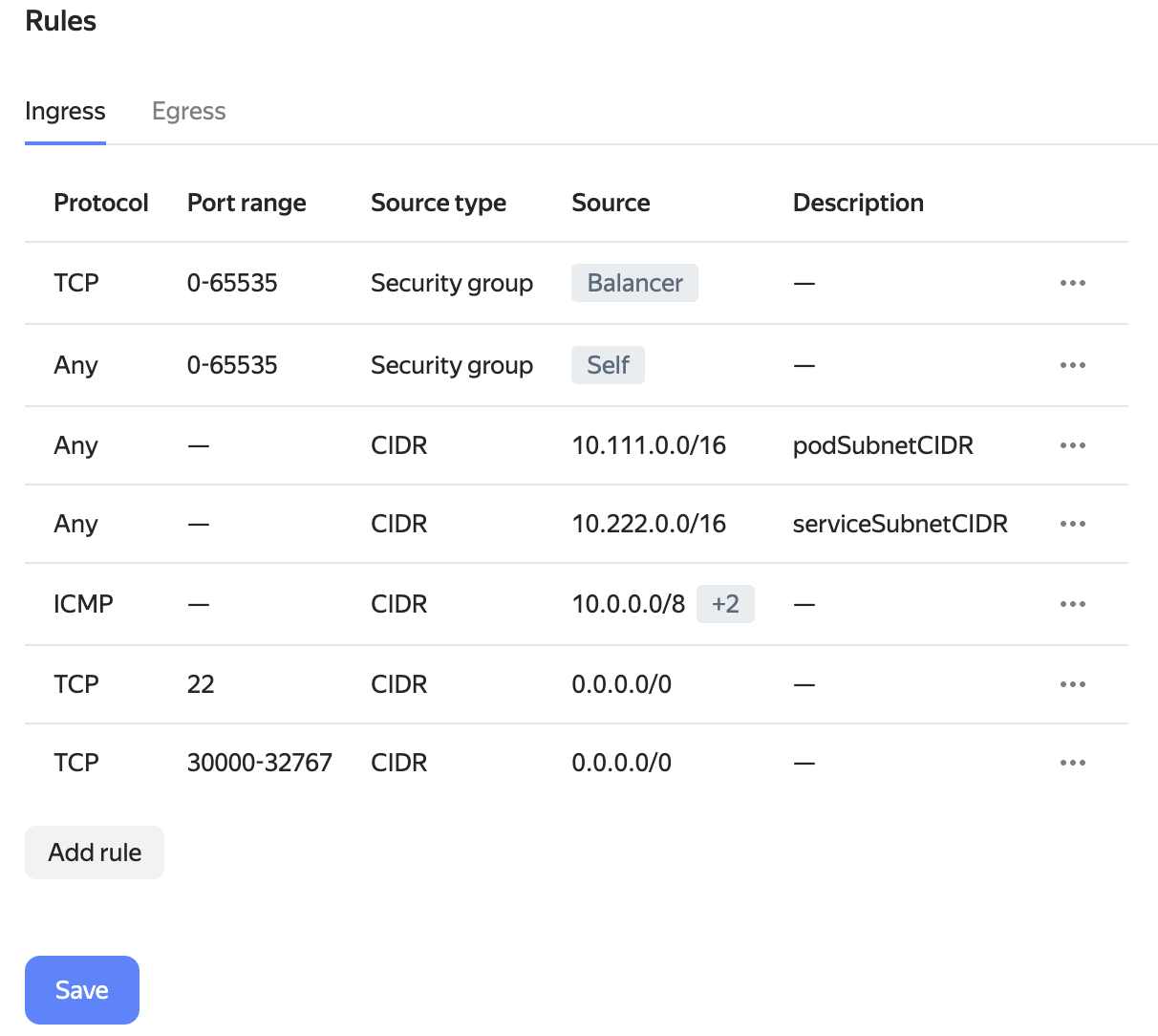

    Rules for the security group

  4. Delete the rule that allows for any inbound traffic (in the screenshot above it has already been deleted), and save the changes.

Yandex Lockbox integration

The External Secrets Operator allows you to synchronize Yandex Lockbox secrets with the Deckhouse Kubernetes Platform cluster secrets.

The instructions below are meant to be viewed as a Quick Start guide. To use integration in production environments, please review the following resources:

Deployment instructions

  1. Create a service account required for the External Secrets Operator:

    yc iam service-account create --name eso-service-account

  2. Create an authorized key for the service account and save it to a file:

    yc iam key create --service-account-name eso-service-account --output authorized-key.json

  3. Assign lockbox.editor, lockbox.payloadViewer, and kms.keys.encrypterDecrypter roles to a service account to access all catalog secrets:

    folder_id=<folder id>
yc resource-manager folder add-access-binding --id=${folder_id} --service-account-name eso-service-account --role lockbox.editor
yc resource-manager folder add-access-binding --id=${folder_id} --service-account-name eso-service-account --role lockbox.payloadViewer
yc resource-manager folder add-access-binding --id=${folder_id} --service-account-name eso-service-account --role kms.keys.encrypterDecrypter

    For advanced customization, check out access control in Yandex Lockbox.

  4. Install the External Secrets Operator using the Helm chart according to instructions.

    Note that you may need to set nodeSelector, tolerations and other parameters. To do this, use the ./external-secrets/values.yaml file after unpacking the Helm-chart.

    Pull and extract the chart:

    helm pull oci://cr.yandex/yc-marketplace/yandex-cloud/external-secrets/chart/external-secrets \
  --version 0.5.5 \
  --untar

    Install the Helm chart:

    helm install -n external-secrets --create-namespace \
  --set-file auth.json=authorized-key.json \
  external-secrets ./external-secrets/

    Where:

    • authorized-key.json — the name of the file with the authorized key from step 2.

  5. Create a SecretStore with the sa-creds secret in it:

    kubectl -n external-secrets apply -f - <<< '
apiVersion: external-secrets.io/v1alpha1
kind: SecretStore
metadata:
  name: secret-store
spec:
  provider:
    yandexlockbox:
      auth:
        authorizedKeySecretRef:
          name: sa-creds
          key: key'

    Where:

    • sa-creds — the name of the Secret that contains the authorized key. This secret should show up after the Helm Chart has been installed.
    • key — the name of the key in the .data field of the secret above.

Checking that everything works as expected

  1. Check the status of the External Secrets Operator and the secrets store you created:

    $ kubectl -n external-secrets get po
NAME                                                READY   STATUS    RESTARTS   AGE
external-secrets-55f78c44cf-dbf6q                   1/1     Running   0          77m
external-secrets-cert-controller-78cbc7d9c8-rszhx   1/1     Running   0          77m
external-secrets-webhook-6d7b66758-s7v9c            1/1     Running   0          77m

$ kubectl -n external-secrets get secretstores.external-secrets.io
NAME           AGE   STATUS
secret-store   69m   Valid

  2. Create a Yandex Lockbox secret with the following parameters:

    • Name — lockbox-secret.
    • Key — enter the non-confidential identifier password.
    • Value — enter the confidential data to store p@$$w0rd.

  3. Create an ExternalSecret object that refers to the lockbox-secret secret in the secret-store:

    kubectl -n external-secrets apply -f - <<< '
apiVersion: external-secrets.io/v1alpha1
kind: ExternalSecret
metadata:
  name: external-secret
spec:
  refreshInterval: 1h
  secretStoreRef:
    name: secret-store
    kind: SecretStore
  target:
    name: k8s-secret
  data:
  - secretKey: password
    remoteRef:
      key: <SECRET_ID>
      property: password'

    Where:

    • spec.target.name — the name of the new secret. The External Secret Operator will create this secret in the Deckhouse Kubernetes Platform cluster and populate it with the parameters of the Yandex Lockbox’s lockbox-secret.
    • spec.data[].secretKey — the name of the key in the .data field of the secret that the External Secret Operator will create.
    • spec.data[].remoteRef.key — identifier of the Yandex Lockbox’s lockbox-secret created earlier, e.g., e6q28nvfmhu539******.
    • spec.data[].remoteRef.property — the key you specified earlier for the Yandex Lockbox’s lockbox-secret.

  4. Make sure that the new k8s-secret key contains the lockbox-secret value:

    kubectl -n external-secrets get secret k8s-secret -ojson | jq -r '.data.password' | base64 -d

    The output of the command should contain the value of the password key of the lockbox-secret created earlier:

    p@$$w0rd

Yandex Managed Service for Prometheus integration

This integration lets you use the Yandex Managed Service for Prometheus as an external metrics repository, e.g., for long-term metrics storage.

Writing metrics

  1. Create a service account with the monitoring.editor role.
  2. Create an API key for the service account.

  3. Create a PrometheusRemoteWrite resource:

    kubectl apply -f - <<< '
apiVersion: deckhouse.io/v1
kind: PrometheusRemoteWrite
metadata:
  name: yc-remote-write
spec:
  url: <URL_TO_WRITE_METRICS>
  bearerToken: <API_KEY>
'

    Where:

    • <URL_TO_WRITE_METRICS> — URL from the Yandex Monitoring/Prometheus/Writing Metrics page.
    • <API_KEY> — the API key you created in the previous step, e.g., AQVN1HHJRSrfo9jU3aopsXrJyfq_UHs********.

    You may also specify additional parameters; refer to the documentation.

More details about this feature can be found in Yandex Cloud documentation.

Reading metrics with Grafana

  1. Create a service account with the monitoring.viewer role.
  2. Create an API key for the service account.

  3. Create a GrafanaAdditionalDatasource resource:

    kubectl apply -f - <<< '
apiVersion: deckhouse.io/v1
kind: GrafanaAdditionalDatasource
metadata:
  name: managed-prometheus
spec:
  type: prometheus
  access: Proxy
  url: <URL_READING_METRICS_WITH_GRAFANA>
  basicAuth: false
  jsonData:
    timeInterval: 30s
    httpMethod: POST
    httpHeaderName1: Authorization
  secureJsonData:
    httpHeaderValue1: Bearer <API_KEY>
'

    Where:

    • <URL_READING_METRICS_WITH_GRAFANA> — URL from the Yandex Monitoring/Prometheus/Reading Metrics with Grafana page.
    • <API_KEY> — the API key you created in the previous step, e.g., AQVN1HHJReSrfo9jU3aopsXrJyfq_UHs********.

    You may also specify additional parameters; refer to the documentation.

More details about this feature can be found in Yandex Cloud documentation.
