The Console (‘console’ module) is a web interface aiming the simplicity of control and transparency of a state of Deckhouse Kubernetes Platform.
Assuming public domain template is %s.example.com, the web app will be available at
https://console.example.com. Only cluster administrators are allowed to use the app.
Features

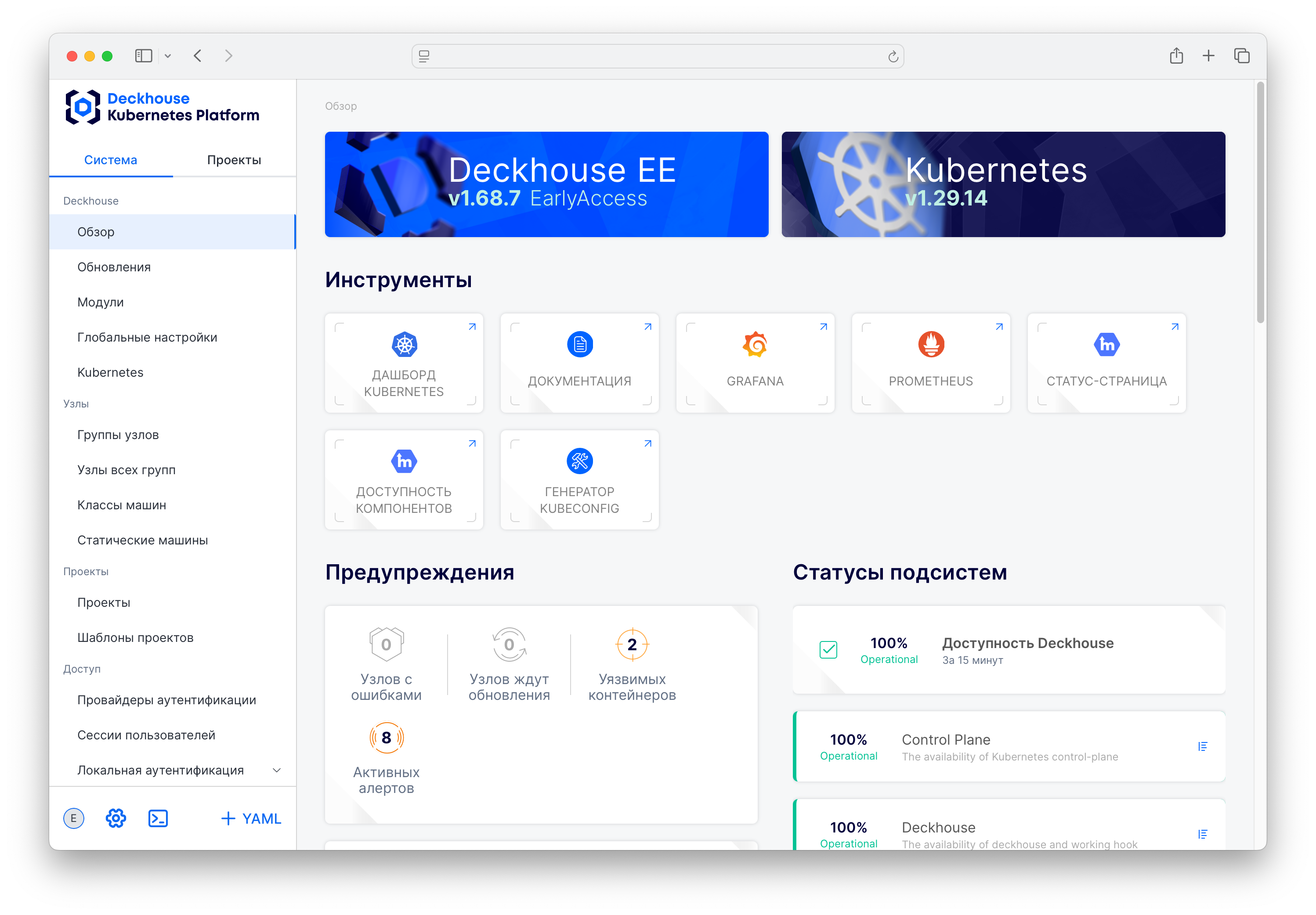

- Cluster overview, versions of Deckhouse and Kubernetes, the overall condition and updates
- Deckhouse modules and their settings
- Node management: configuration, scaling, and update settings
- Multitenancy: projects and project templates
- Access control: external authentication providers, group and user permissions
- Ingress controllers to rul incoming traffic
- Journaling: collecting logs from node file and pods, and sending them to various storage types
- Monitoring: processing and sending of metrics, recording rules and alerts, Grafana dashboards and data sources, Prometheus settings, and a list of firing alerts
- GitOps support: special marks on Kubernetes resources, created by automation like werf, Argo CD, Helm.
- Metrics and monitoring dashboards in Nodegroups, Nodes, and Ingress Controllers
- Pods of Prometheus, Ingress Controllers, and Nodes
- And much more!
Turning on
The module must be turned on explicitly in ModuleConfig:
apiVersion: deckhouse.io/v1alpha1
kind: ModuleConfig
metadata:
name: console
spec:
enabled: true
Resources requirements
Resources consumed by server-side pods are estimated as follows
| Users | CPU, cores | RAM, MiB |
|---|---|---|
| 0 | 0.0005 | 18 |
| 1 | 0.0500 | 25 |
| 10 | 0.4000 | 53 |
| 100 | 0.6500 | 130 |
Vertical Pod Autoscaler is configured with a minimum CPU/memory limit of 100m/100MiB and a maximum of 1/512MiB. The server side pods are deployed in two replicas automatically for Deckhouse platform installation in HA mode.
