Snapshots

Snapshots allow you to capture the current state of a resource for later recovery or cloning: a disk snapshot saves only the data from the selected disk, while a virtual machine snapshot includes the VM settings and the state of all its disks.

Consistent snapshots

Snapshots can be consistent or inconsistent; this is controlled by the requiredConsistency parameter. By default, requiredConsistency is set to true, which means a consistent snapshot is required.

A consistent snapshot captures a complete and consistent state of disk data. You can create such a snapshot when one of the following conditions is met:

• The disk is not attached to any virtual machine — the snapshot will always be consistent.
• The virtual machine is turned off.
• qemu-guest-agent is installed and running in the guest OS. When a snapshot is created, it temporarily suspends (“freezes”) the file system to ensure consistency.

QEMU Guest Agent supports hook scripts that allow you to prepare applications for snapshot creation without stopping services, ensuring application-level consistency. For more information on configuring hooks scripts, see the Guest OS agent section.

An inconsistent snapshot may not reflect a consistent state of the virtual machine’s disks and its components. Such a snapshot is created in the following cases:

• The VM is running, and qemu-guest-agent is not installed or not running in the guest OS.
• The snapshot manifest explicitly specifies the requiredConsistency: false parameter, and you want to avoid suspending the file system.

Creating disk snapshots

The VirtualDiskSnapshot resource is used to create snapshots of virtual disks. These snapshots can serve as a data source when creating new disks, such as for cloning or information recovery.

To ensure data integrity, a disk snapshot can be created in the following cases:

• The disk is not attached to any virtual machine.
• The VM is powered off.
• The VM is running, but qemu-guest-agent is installed in the guest OS. The file system has been successfully “frozen” (fsfreeze operation).

If data consistency is not required (for example, for test scenarios), a snapshot can be created:

• On a running VM without “freezing” the file system.
• Even if the disk is attached to an active VM.

To do this, specify in the VirtualDiskSnapshot manifest:

spec:
  requiredConsistency: false

An example manifest for creating a disk snapshot:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualDiskSnapshot
metadata:
  name: linux-vm-root-$(date +%s)
spec:
  requiredConsistency: true
  virtualDiskName: linux-vm-root
EOF

To view a list of disk snapshots, run the following command:

d8 k get vdsnapshot

Example output:

NAME                       PHASE     CONSISTENT   AGE
linux-vm-root-1728027905   Ready     true         3m2s

The CONSISTENT field indicates whether the snapshot is consistent (true) or not (false). This value is determined automatically based on the snapshot creation conditions and cannot be changed.

After creation, VirtualDiskSnapshot can be in the following states (phases):

• Pending: Waiting for all dependent resources required for snapshot creation to be ready.
• InProgress: The process of creating a virtual disk snapshot is in progress.
• Ready: Snapshot creation has been successfully completed and the virtual disk snapshot is available for use.
• Failed: An error occurred during the virtual disk snapshot creation process.
• Terminating: The resource is in the process of being deleted.

Diagnosing problems with a resource is done by analyzing the information in the .status.conditions block.

A full description of the VirtualDiskSnapshot resource configuration parameters for machines can be found at link.

How to create a disk image in the web interface:

• Go to the “Projects” tab and select the desired project.
• Go to the “Virtualization” → “Disk Images” section.
• Click “Create Disk Snapshot”.
• In the “Disk Snapshot Name” field, enter a name for the snapshot.
• On the “Configuration” tab, in the “Disk Name” field, select the disk from which the snapshot will be created.
• Enable the “Consistency Guarantee” switch.
• Click the “Create” button.
• The image status is displayed at the top left, under the snapshot name.

Recovering disks from snapshots

In order to restore a disk from a previously created disk snapshot, you must specify a corresponding object as dataSource:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualDisk
metadata:
  name: linux-vm-root
spec:
  persistentVolumeClaim:
    size: 10Gi
    # Substitute your StorageClass name.
    storageClassName: rv-thin-r2
  dataSource:
    type: ObjectRef
    objectRef:
      kind: VirtualDiskSnapshot
      name: linux-vm-root-1728027905
EOF

How to restore a disk from a previously created snapshot in the web interface:

• Go to the “Projects” tab and select the desired project.
• Go to the “Virtualization” → “VM Disks” section.
• Click “Create Disk””
• In the form that opens, enter a name for the disk in the “Disk Name” field.
• In the “Source” field, make sure the “Snapshots” checkbox is selected.
• From the drop-down list, select the disk snapshot you want to restore from.
• In the “Size” field, set a size that is the same or larger than the size of the original disk.
• In the “StorageClass Name” field, enter the “StorageClass” of the original disk.
• Click the “Create” button.
• The disk status is displayed at the top left, under the disk name.

Creating snapshots of virtual machines

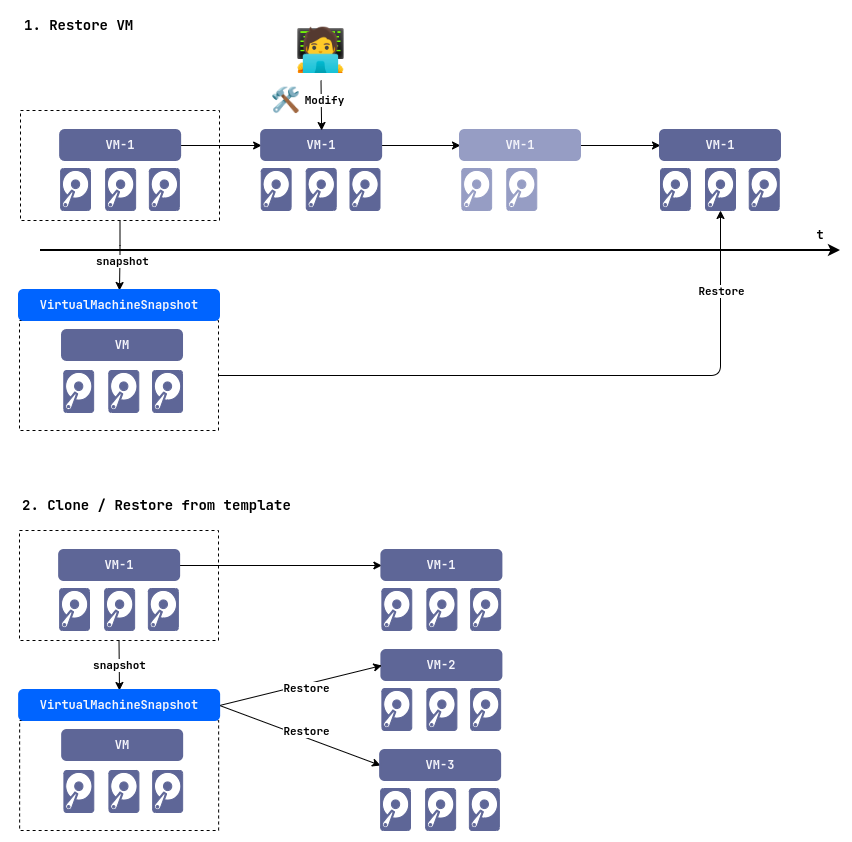

A virtual machine snapshot is a saved state of a virtual machine at a specific point in time. The VirtualMachineSnapshot resource is used to create virtual machine snapshots.

Creating snapshots

Creating a virtual machine snapshot will fail if at least one of the following conditions is met:

• Not all dependencies of the virtual machine are ready.
• There is a disk in the process of resizing among the dependent devices.

When a snapshot is created, the dynamic IP address of the VM is automatically converted to a static IP address and saved for recovery.

If you do not want to convert and use the old IP address of the virtual machine, you can set the corresponding policy to Never. In this case, the address type without conversion (Auto or Static) will be used.

spec:
  keepIPAddress: Never

An example manifest to create a snapshot of a virtual machine:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineSnapshot
metadata:
  name: linux-vm-snapshot
spec:
  virtualMachineName: linux-vm
  requiredConsistency: true
  keepIPAddress: Never
EOF

After successfully creating a snapshot, its status will show the list of resources saved in the snapshot.

Output example:

status:
  ...
  resources:
  - apiVersion: virtualization.deckhouse.io/v1alpha2
    kind: VirtualMachine
    name: linux-vm
  - apiVersion: v1
    kind: Secret
    name: cloud-init
  - apiVersion: virtualization.deckhouse.io/v1alpha2
    kind: VirtualDisk
    name: linux-vm-root

How to create a VM snapshot in the web interface:

• Go to the “Projects” tab and select the desired project.
• Go to the “Virtualization” → “Virtual Machines” section.
• Select the required VM from the list and click on its name.
• Go to the “Snapshots” tab.
• Click the “Create” button.
• In the form that opens, enter linux-vm-snapshot in the “Snapshot name” field.
• On the “Configuration” tab, select Never in the “IP address conversion policy” field.
• Enable the “Consistency Guarantee” switch.
• In the “Snapshot Storage Class” field, select a class for the disk snapshot.
• Click the “Create” button.
• The snapshot status is displayed at the top left, under the snapshot name.

Restore a virtual machine

To restore a VM from a snapshot, use the VirtualMachineOperation resource with the restore type.

Example:

apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineOperation
metadata:
  name: restore-vm
spec:
  type: Restore
  virtualMachineName: <name of the VM to be restored>
  restore:
    mode: DryRun | Strict | BestEffort
    virtualMachineSnapshotName: <name of the VM snapshot from which to restore>

One of three modes can be used for this operation:

• DryRun: Idle run of the restore operation, used to check for possible conflicts, which will be displayed in the resource status (status.resources).
• Strict: Strict recovery mode, used when the VM must be restored exactly as captured in the snapshot; missing external dependencies may cause the VM to remain in Pending status after recovery.
• BestEffort: Missing external dependencies (ClusterVirtualImage, VirtualImage) are ignored and removed from the VM configuration.

Restoring a virtual machine from a snapshot is only possible if all the following conditions are met:

• The VM to be restored exists in the cluster (the VirtualMachine resource exists and its .metadata.uid matches the identifier used when creating the snapshot).
• The disks to be restored (identified by name) are either not attached to other VMs or do not exist in the cluster.
• The IP address to be restored is either not used by any other VM or does not exist in the cluster.
• The MAC addresses to be restored are either not used by any other VMs or do not exist in the cluster.

You can view information about conflicts when restoring a VM from a snapshot in the resource status:

d8 k get vmop <vmop-name> -o json | jq “.status.resources”

Creating a VM clone

You can create a VM clone in two ways: from an existing VM or from a previously created snapshot of that VM.

d8 k label vm <vm-name> label-name=label-value

Cloning creates a copy of a VM, so the resources of the new VM must have unique names. To do this, use the nameReplacements and/or customization parameters:

• nameReplacements: Allows you to replace the names of existing resources with new ones to avoid conflicts.
• customization: Sets a prefix or suffix for the names of all cloned VM resources (disks, IP addresses, etc.).

Example of renaming specific resources:

nameReplacements:
  - from:
      kind: VirtualMachine
      name: <old-vm-name>
    to:
      name: <new-vm-name>
  - from:
      kind: VirtualDisk
      name: <old-disk-name>
    to:
      name: <new-disk-name>
# ...

As a result, a VM named <prefix><original-vm-name><suffix> will be created, and all resources (disks, IP addresses, etc.) will receive the prefix and suffix.

Example of adding a prefix or suffix to all resources:

customization:
  namePrefix: <prefix>
  nameSuffix: <suffix>

As a result, a VM named will be created.

One of three modes can be used for the cloning operation:

• DryRun: Test run to check for possible conflicts. The results are displayed in the status.resources field of the corresponding operation resource.
• Strict: Strict mode requiring all resources with new names and their dependencies (e.g., images) to be present in the cloned VM.
• BestEffort: Mode in which missing external dependencies (e.g., ClusterVirtualImage, VirtualImage) are automatically removed from the configuration of the cloned VM.

Information about conflicts that arose during cloning can be viewed in the operation resource status:

# For cloning from an existing VM.
d8 k get vmop <vmop-name> -o json | jq '.status.resources'
# For cloning from a VM snapshot.
d8 k get vmsop <vmsop-name> -o json | jq '.status.resources'

Creating a clone from an existing VM

VM cloning is performed using the VirtualMachineOperation resource with the Clone operation type.

Cloning is supported for both powered-off and running virtual machines. When cloning a running VM, a consistent snapshot is automatically created, from which the clone is then formed.

Before cloning, you need to prepare the guest OS to avoid conflicts with unique identifiers and network settings.

Linux:

• Clear the machine-id using sudo truncate -s 0 /etc/machine-id (for systemd) or delete the /var/lib/dbus/machine-id file.
• Remove SSH host keys: sudo rm -f /etc/ssh/ssh_host_*.
• Clear network interface configuration (if static settings are used).
• Clear the Cloud-Init cache (if used): sudo cloud-init clean.

Windows:

• Run sysprep with the /generalize option, or use tools to reset unique identifiers (SID, hostname, etc.).

To create a VM clone, use the following resource:

apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineOperation
metadata:
  name: <vmop-name>
spec:
  type: Clone
  virtualMachineName: <name of the VM to be cloned>
  clone:
    mode: DryRun | Strict | BestEffort
    nameReplacements: []
    customization: {}

The nameReplacements and customization parameters are configured in the .spec.clone block (see general description above).

The following example demonstrates cloning a VM named database with an attached disk database-root:

Example with renaming specific resources:

apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineOperation
metadata:
  name: clone-database
spec:
  type: Clone
  virtualMachineName: database
  clone:
    mode: Strict
    nameReplacements:
      - from:
          kind: VirtualMachine
          name: database
        to:
          name: database-clone
      - from:
          kind: VirtualDisk
          name: database-root
        to:
          name: database-clone-root

As a result, a VM named database-clone and a disk named database-clone-root will be created.

Example with using a prefix for all resources:

apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineOperation
metadata:
  name: clone-database
spec:
  type: Clone
  virtualMachineName: database
  clone:
    mode: Strict
    customization:
      namePrefix: clone-
      nameSuffix: -prod

As a result, a VM named clone-database-prod and a disk named clone-database-root-prod will be created.

Creating a clone from a VM snapshot

Cloning a VM from a snapshot is performed using the VirtualMachineSnapshotOperation resource with the CreateVirtualMachine operation type.

To create a VM clone from a snapshot, use the following resource:

apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineSnapshotOperation
metadata:
  name: <vmsop-name>
spec:
  type: CreateVirtualMachine
  virtualMachineSnapshotName: <name of the VM snapshot from which to clone>
  createVirtualMachine:
    mode: DryRun | Strict | BestEffort
    nameReplacements: []
    customization: {}

The nameReplacements and customization parameters are configured in the .spec.createVirtualMachine block (see general description above).

To view the list of resources saved in a snapshot, use the command:

d8 k get vmsnapshot <snapshot-name> -o jsonpath='{.status.resources}' | jq

The following example demonstrates cloning from a VM snapshot named database-snapshot, which contains a VM database and a disk database-root:

Example with renaming specific resources:

apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineSnapshotOperation
metadata:
  name: clone-database-from-snapshot
spec:
  type: CreateVirtualMachine
  virtualMachineSnapshotName: database-snapshot
  createVirtualMachine:
    mode: Strict
    nameReplacements:
      - from:
          kind: VirtualMachine
          name: database
        to:
          name: database-clone
      - from:
          kind: VirtualDisk
          name: database-root
        to:
          name: database-clone-root

As a result, a VM named database-clone and a disk named database-clone-root will be created.

Example with using a prefix for all resources:

apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineSnapshotOperation
metadata:
  name: clone-database-from-snapshot
spec:
  type: CreateVirtualMachine
  virtualMachineSnapshotName: database-snapshot
  createVirtualMachine:
    mode: Strict
    customization:
      namePrefix: clone-
      nameSuffix: -prod

As a result, a VM named clone-database-prod and a disk named clone-database-root-prod will be created.

USB Devices

DVP supports USB device passthrough to virtual machines using DRA (Dynamic Resource Allocation). This section describes how to use USB devices with virtual machines.

Overview

DVP provides two custom resources for managing USB devices:

• NodeUSBDevice (cluster-scoped) — represents a USB device discovered on a specific node. Created automatically by the DRA system when a USB device is detected on a node.
• USBDevice (namespace-scoped) — represents a USB device available for attachment to virtual machines in a given namespace.

How It Works

USB device passthrough follows a defined lifecycle — from device discovery on a node to attachment to a virtual machine:

1. The DRA driver automatically discovers USB devices on cluster nodes and creates NodeUSBDevice resources.

2. An administrator assigns a namespace to the NodeUSBDevice resource by setting the .spec.assignedNamespace field. This makes the device available in that namespace.

3. After the namespace is assigned, the controller automatically creates a corresponding USBDevice resource in that namespace.

4. The USBDevice is attached to a virtual machine by adding it to the .spec.usbDevices field of the VirtualMachine resource.

Quick Start

The following steps describe the minimal workflow for attaching a USB device to a virtual machine:

1. Connect the USB device to a cluster node.

2. Verify that a NodeUSBDevice resource has been created:

   d8 k get nodeusbdevice


3. Assign a namespace to the NodeUSBDevice by setting .spec.assignedNamespace.

   d8 k apply -f - <<EOF
   apiVersion: virtualization.deckhouse.io/v1alpha2
   kind: NodeUSBDevice
   metadata:
     name: logitech-webcam
   spec:
     assignedNamespace: my-project
   EOF


4. Verify that a corresponding USBDevice resource has been created in the target namespace:

   d8 k get usbdevice -n my-project


5. Add the device to the .spec.usbDevices field of a VirtualMachine resource and ensure that the VM is scheduled on the node where the USB device is physically connected.

   d8 k apply -f - <<EOF
   apiVersion: virtualization.deckhouse.io/v1alpha2
   kind: VirtualMachine
   metadata:
     name: linux-vm
   spec:
     # ... other VM settings ...
     usbDevices:
       - name: logitech-webcam
   EOF


NodeUSBDevice

NodeUSBDevice resource reflects the state of a physical USB device detected on a cluster node. It is a cluster-scoped resource that represents a physical USB device on a node. It is created automatically by the DRA system.

Example of viewing all discovered USB devices:

d8 k get nodeusbdevice

Example output:

NAME                 NODE           READY   ASSIGNED   NAMESPACE   AGE
usb-flash-drive     node-1         True    False                  10m
logitech-webcam     node-2         True    True      my-project   15m

NodeUSBDevice Conditions

The status of a NodeUSBDevice resource is represented by a set of conditions that describe its availability and assignment state:

• Ready: Indicates whether the device is ready to use.
  • Ready: Device is ready to use.
  • NotReady: Device exists but is not ready.
  • NotFound: Device is absent on the host.
• Assigned: Indicates whether a namespace is assigned to the device.
  • Assigned: Namespace is assigned and USBDevice resource is created.
  • Available: No namespace is assigned for the device.
  • InProgress: Device connection to namespace is in progress.

Assigning a Namespace

Before a USB device can be attached to a virtual machine, it must be exposed to a specific namespace. To make a USB device available in a specific namespace, set the .spec.assignedNamespace field:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: NodeUSBDevice
metadata:
  name: logitech-webcam
spec:
  assignedNamespace: my-project
EOF

After assigning the namespace, a corresponding USBDevice resource is automatically created in the specified namespace.

USBDevice

Once a namespace is assigned to a NodeUSBDevice, a corresponding USBDevice resource is created in automatically that namespace. It is a namespace-scoped resource that represents a USB device available for attachment to virtual machines within a given namespace.

Example of viewing USB devices in a namespace:

d8 k get usbdevice -n my-project

Example output:

NAME               NODE     MANUFACTURER   PRODUCT              SERIAL       ATTACHED   AGE
logitech-webcam    node-2   Logitech       Webcam C920         ABC123456   False      10m

USBDevice Attributes

The USBDevice resource exposes detailed information about the physical USB device through its status fields. This attributes are available in .status.attributes:

• vendorID: USB vendor ID (hexadecimal format).
• productID: USB product ID (hexadecimal format).
• bus: USB bus number.
• deviceNumber: USB device number on the bus.
• serial: Device serial number.
• manufacturer: Device manufacturer name.
• product: Device product name.
• name: Device name.

USBDevice Conditions

The USBDevice resource provides status conditions that reflect its readiness and attachment state.

• Ready: Indicates whether the device is ready to use.
  • Ready: Device is ready to use.
  • NotReady: Device exists but is not ready.
  • NotFound: Device is absent on the host.
• Attached: Indicates whether the device is attached to a virtual machine.
  • AttachedToVirtualMachine: Device is attached to a VM.
  • Available: Device is available for attachment.
  • DetachedForMigration: Device was detached for migration.

Attaching USB Device to VM

After the USBDevice resource is available in a namespace, it can be attached to a virtual machine. To attach a USB device to a virtual machine, add the device to the .spec.usbDevices field of the VirtualMachine resource specification:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachine
metadata:
  name: linux-vm
spec:
  # ... other VM settings ...
  usbDevices:
    - name: logitech-webcam
EOF

After creating or updating the VM, the USB device will be attached to the specified virtual machine.

Viewing USB Device Details

To view detailed information about a USB device:

d8 k describe nodeusbdevice <device-name>

Example output:

Name:         logitech-webcam
Namespace:
Labels:       <none>
Annotations:  <none>
API Version:  virtualization.deckhouse.io/v1alpha2
Kind:         NodeUSBDevice
Metadata:
  Creation Timestamp:  2024-01-15T10:30:00Z
  Generation:          1
  UID:                 abc123-def456-ghi789
Spec:
  Assigned Namespace:  my-project
Status:
  Node Name:           node-2
  Attributes:
    Bus:               1
    Device Number:     2
    Manufacturer:      Logitech
    Name:              Webcam C920
    Product:           Webcam C920
    Product ID:        082d
    Serial:            ABC123456
    Vendor ID:         046d
  Conditions:
    Type:              Ready
    Status:            True
    Reason:            Ready
    Message:           Device is ready to use
    Type:              Assigned
    Status:            True
    Reason:            Assigned
    Message:           Namespace is assigned for the device
  Observed Generation: 1

Requirements and Limitations

USB device passthrough has several operational requirements and limitations that must be considered before use:

• The DRA driver must be installed on nodes where USB devices are to be discovered.
• USB devices are forwarded to the VM node over the network using USBIP. The VM does not need to run on the same node where the device is physically connected. When connecting over the network, the following limitations on the number of devices and hub selection apply:
  • Node can attach at most 16 USB devices: up to 8 on the USB 2.0 hub and up to 8 on the USB 3.0 hub.
  • Hub is determined by the device speed and cannot be changed. A device that operates at USB 2.0 speed cannot be attached to the USB 3.0 hub, and vice versa.
• USB devices support hot-plug — they can be attached to and detached from a running VM without stopping it.
• USB device passthrough requires proper kernel modules on the node.

Data export

You can export virtual machine disks and disk snapshots using the d8 utility (version 0.20.7 and above). For this function to work, the module storage-volume-data-manager must be enabled.

Example: export a disk (run on a cluster node):

d8 data export download -n <namespace> vd/<virtual-disk-name> -o file.img

Example: export a disk snapshot (run on a cluster node):

d8 data export download -n <namespace> vd/<virtual-disk-name> -o file.img

If you are exporting data from a machine other than a cluster node (for example, from your local machine), use the --publish flag.
