The module lifecycle stage: Preview

Available with limitations in:  CE

Available without limitations in:  SE, SE+, EE

The module is only guaranteed to work if the system requirements are met. As for any other configurations, the module may work, but its smooth operation is not guaranteed.

How to explicitly enable the module…

You may explicitly enable or disable the module in one of the following ways:

  • Via Deckhouse web UI. In the “System” → “System Management” → “Deckhouse” → “Modules” section, open the sds-replicated-volume module and enable (or disable) the “Module enabled” toggle. Save changes.

    Example:

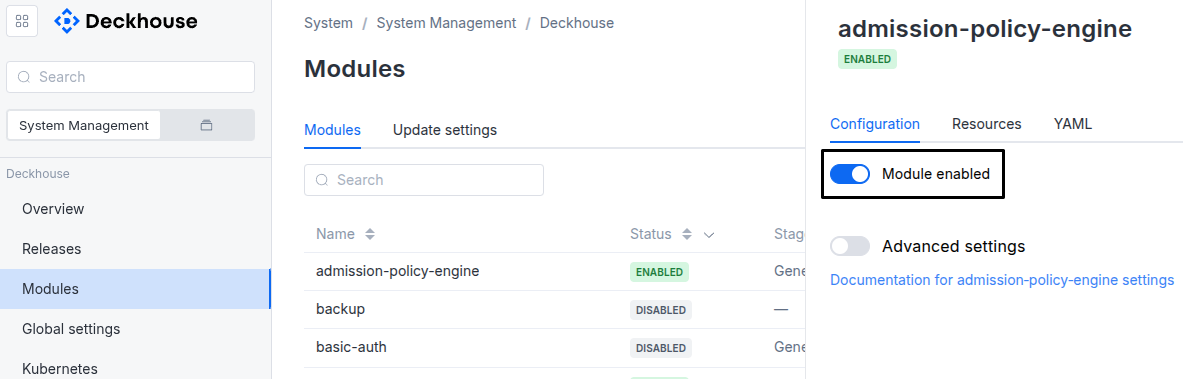

    Module enable/disable interface

  • Via Deckhouse CLI (d8).

    Use the d8 system module enable command for enabling, or d8 system module disable command for disabling the module (you need Deckhouse CLI (d8), configured to work with the cluster).

    Example of enabling the module:

    d8 system module enable sds-replicated-volume

  • Using ModuleConfig sds-replicated-volume.

    Set spec.enabled to true or false in ModuleConfig sds-replicated-volume (create it if necessary);

    Example of a manifest to enable module sds-replicated-volume:

    apiVersion: deckhouse.io/v1alpha1
kind: ModuleConfig
metadata:
  name: sds-replicated-volume
spec:
  enabled: true

How to configure the module…

You can configure the module in one of the following ways:

  • Via Deckhouse web UI.

    In the “System” → “System Management” → “Deckhouse” → “Modules” section, open the sds-replicated-volume module and enable the “Advanced Settings” switch. Fill in the required fields in the “Configuration” tab or specify the module settings in YAML format on the “YAML” tab, excluding the settings section. Save the changes.

    Example:

    Module Setup Interface

    You can also edit the ModuleConfig object sds-replicated-volume on the “YAML” tab in the module settings window (“System” → “System Management” → “Deckhouse” → “Modules”, open the module sds-replicated-volume) by specifying the schema version in the spec.version parameter and the necessary module parameters in the spec.settings section.

  • Via Deckhouse CLI (d8) (requires Deckhouse CLI (d8) configured to work with the cluster).

    Edit the existing ModuleConfig sds-replicated-volume (for more details on configuring Deckhouse, see the documentation) by executing the following command:

    d8 k edit mc sds-replicated-volume

    Make the necessary changes in the spec.settings section. If necessary, specify the schema version in the spec.version parameter. Save the changes.

    You can also create a file with manifest for ModuleConfig sds-replicated-volume using the example below. Fill in the spec.settings section with the required module parameters. If necessary, specify the schema version in the spec.version parameter.

    Apply the manifest using the following command (indicate the manifest file name):

    d8 k apply -f <FILENAME>

    Example of a manifest for ModuleConfig sds-replicated-volume:

    apiVersion: deckhouse.io/v1alpha1
kind: ModuleConfig
metadata:
  name: sds-replicated-volume
spec:
  version: 1
  enabled: true
  settings: # Module parameters from the "Parameters" section below.

Requirements

To the Deckhouse version: 1.67 and above.

To the versions of other modules:

  • sds-node-configurator: any version.
  • snapshot-controller: any version.

Parameters

Schema version: 1

  • settings
    object
    • settings.backup
      object
      Module backup settings
      • settings.backup.enabled
        boolean
        Module backup state

        Default: true

      • settings.backup.retentionCount
        integer
        Number of backups to keep

        Default: 7

      • settings.backup.schedule
        string
        Backup schedule

        Default: 0 3 * * *

    • settings.dataNodes
      object
      Settings for Linstor on nodes with data

      Default: {}

      • settings.dataNodes.nodeSelector
        object

        The same as in the Pods spec.nodeSelector parameter in Kubernetes.

        If parameter is omitted, Linstor nodes will be placed on all nodes.

        Caution! Changing this parameter does not result in data redistribution. If node with data no longer matches the nodeSelector, data on that node will become inaccessible.

        Default: { "kubernetes.io/os": "linux" }

    • settings.drbdPortRange
      object
      Settings for DRBD TCP ports

      Default: {}

      • settings.drbdPortRange.maxPort
        integer
        DRBD ports range end

        Default: 7999

      • settings.drbdPortRange.minPort
        integer
        DRBD ports range start

        Default: 7000

    • settings.enableThinProvisioning
      boolean
      Allow thin LVM volumes usage

      Default: false

    • settings.logLevel
      string
      Module log level

      Default: INFO

      Allowed values: ERROR, WARN, INFO, DEBUG, TRACE

    • settings.registryScheme
      string
      Deprecated parameter. Remove it from ModuleConfig for Deckhouse with version greater than 1.57.

      Default: https
