Introduction

This guide is intended for administrators of Deckhouse Virtualization Platform and describes how to create and modify cluster resources.

The administrator also has rights to manage project resources, which are described in the “User Guide” document.

Images

The ClusterVirtualImage resource is used to load virtual machine images into the intra-cluster storage, after which it can be used to create virtual machine disks. It is available in all cluster namespaces/projects.

The image creation process includes the following steps:

• The user creates a ClusterVirtualImage resource.
• Once created, the image is automatically uploaded from the source specified in the specification to the storage (DVCR).
• Once the upload is complete, the resource becomes available for disk creation.

There are different types of images:

• ISO image - an installation image used for the initial installation of an operating system. Such images are released by OS vendors and are used for installation on physical and virtual servers.
• Preinstalled disk image - contains an already installed and configured operating system ready for use after the virtual machine is created. These images are offered by several vendors and can be provided in formats such as qcow2, raw, vmdk, and others.

Example of resource for obtaining virtual machine images: https://cloud-images.ubuntu.com

Once a share is created, the image type and size are automatically determined, and this information is reflected in the share status.

Images can be downloaded from various sources, such as HTTP servers where image files are located or container registries. It is also possible to download images directly from the command line using the curl utility.

Images can be created from other images and virtual machine disks.

A full description of the ClusterVirtualImage resource configuration parameters can be found at link.

Translated with DeepL.com (free version)

Creating an image from an HTTP server

Consider creating a cluster image

Run the following command to create a ClusterVirtualImage:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: ClusterVirtualImage
metadata:
  name: ubuntu-22.04
spec:
  # A source for image creation.
  dataSource:
    type: HTTP
    http:
      url: "https://cloud-images.ubuntu.com/minimal/releases/jammy/release/ubuntu-22.04-minimal-cloudimg-amd64.img"
EOF

Check the result of the ClusterVirtualImage creation:

d8 k get clustervirtualimage ubuntu-22.04
# or shorter
d8 k get cvi ubuntu-22.04

# NAME           PHASE   CDROM   PROGRESS   AGE
# ubuntu-22.04   Ready   false   100%       23h

After creation, the ClusterVirtualImage resource can be in the following states (phases):

• Pending - waiting for all dependent resources required for image creation to be ready.
• WaitForUserUpload - waiting for the user to upload the image (this phase is present only for type=Upload).
• Provisioning - the image creation process is in progress.
• Ready - the image is created and ready for use.
• Failed - an error occurred during the image creation process.
• Terminating - the image is being deleted. The image may “hang” in this state if it is still connected to the virtual machine.

As long as the image has not entered the Ready phase, the contents of the .spec block can be changed. If you change it, the disk creation process will start again. After entering the Ready phase, the contents of the .spec block cannot be changed!

You can trace the image creation process by adding the -w key to the previous command:

d8 k get cvi ubuntu-22.04 -w

# NAME           PHASE          CDROM   PROGRESS   AGE
# ubuntu-22.04   Provisioning   false              4s
# ubuntu-22.04   Provisioning   false   0.0%       4s
# ubuntu-22.04   Provisioning   false   28.2%      6s
# ubuntu-22.04   Provisioning   false   66.5%      8s
# ubuntu-22.04   Provisioning   false   100.0%     10s
# ubuntu-22.04   Provisioning   false   100.0%     16s
# ubuntu-22.04   Ready          false   100%       18s

The ClusterVirtualImage resource description provides additional information about the downloaded image:

d8 k describe cvi ubuntu-22.04

Creating an image from Container Registry

An image stored in Container Registry has a certain format. Let’s look at an example:

First, download the image locally:

curl -L https://cloud-images.ubuntu.com/minimal/releases/jammy/release/ubuntu-22.04-minimal-cloudimg-amd64.img -o ubuntu2204.img

Next, create a Dockerfile with the following contents:

FROM scratch
COPY ubuntu2204.img /disk/ubuntu2204.img

Build the image and load it into the container registry. The example below uses docker.io as the container registry. you need to have a service account and a customized environment to run it.

docker build -t docker.io/<username>/ubuntu2204:latest

where username is the username specified when registering with docker.io.

Load the created image into the container registry:

docker push docker.io/<username>/ubuntu2204:latest

To use this image, create a resource as an example:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: ClusterVirtualImage
metadata:
  name: ubuntu-2204
spec:
  dataSource:
    type: ContainerImage
    containerImage:
      image: docker.io/<username>/ubuntu2204:latest
EOF

Load the image from the command line

To load an image from the command line, first create the following resource as shown below with the ClusterVirtualImage example:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: ClusterVirtualImage
metadata:
  name: some-image
spec:
  dataSource:
    type: Upload
EOF

Once created, the resource will enter the WaitForUserUpload phase, which means it is ready for image upload.

There are two options available for uploading from a cluster node and from an arbitrary node outside the cluster:

d8 k get cvi some-image -o jsonpath="{.status.imageUploadURLs}"  | jq

# {
#   "external":"https://virtualization.example.com/upload/g2OuLgRhdAWqlJsCMyNvcdt4o5ERIwmm",
#   "inCluster":"http://10.222.165.239"
# }

As an example, download the Cirros image:

curl -L http://download.cirros-cloud.net/0.5.1/cirros-0.5.1-x86_64-disk.img -o cirros.img

Upload the image using the following command:

curl https://virtualization.example.com/upload/g2OuLgRhdAWqlJsCMyNvcdt4o5ERIwmm --progress-bar -T cirros.img | cat

After the upload is complete, the image should be created and enter the Ready phase:

d8 k get cvi some-image
# NAME         PHASE   CDROM   PROGRESS   AGE
# some-image   Ready   false   100%       1m

Virtual Machine Classes

The VirtualMachineClass resource is designed for centralized configuration of preferred virtual machine settings. It allows you to define CPU instructions and configuration policies for CPU and memory resources for virtual machines, as well as define ratios of these resources. In addition, VirtualMachineClass provides management of virtual machine placement across platform nodes. This allows administrators to effectively manage virtualization platform resources and optimally place virtual machines on platform nodes.

The virtualization platform provides 3 predefined VirtualMachineClass resources:

kubectl get virtualmachineclass
NAME               PHASE   AGE
host               Ready   6d1h
host-passthrough   Ready   6d1h
generic            Ready   6d1h

• host - this class uses a virtual CPU that is as close as possible to the platform node’s CPU in terms of instruction set. This provides high performance and functionality, as well as compatibility with live migration for nodes with similar processor types. For example, VM migration between nodes with Intel and AMD processors will not work. This is also true for different generations of processors, as their instruction set is different.
• host-passthrough - uses the physical CPU of the platform node directly without any modifications. When using this class, the guest VM can only be migrated to a target node that has a CPU that exactly matches the CPU of the source node.
• generic is a universal CPU model that uses a fairly old, but supported by most modern CPUs, Nehalem model. This allows VMs to be run on any nodes in the cluster with live migration capability.

VirtualMachineClass is mandatory to be specified in the virtual machine configuration, an example of how to specify a class in the VM specification:

apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachine
metadata:
  name: linux-vm
spec:
  virtualMachineClassName: generic # the name of VirtualMachineClass
  ...

Platform administrators can create the required classes of virtual machines according to their needs, but it is recommended to create the minimum required. Consider the following example:

VirtualMachineClass configuration example

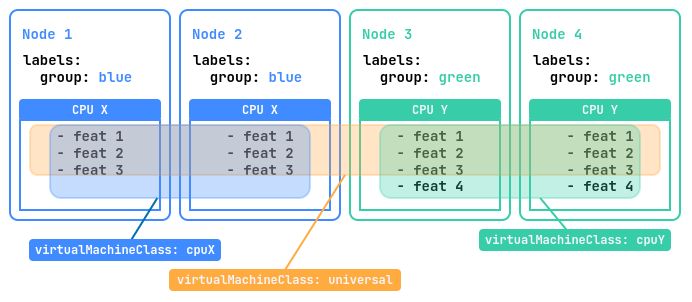

Let’s imagine that we have a cluster of four nodes. Two of these nodes labeled group=blue have a “CPU X” processor with three instruction sets, and the other two nodes labeled group=green have a newer “CPU Y” processor with four instruction sets.

To optimally utilize the resources of this cluster, it is recommended to create three additional virtual machine classes (VirtualMachineClass):

• universal: This class will allow virtual machines to run on all nodes in the platform and migrate between them. It will use the instruction set for the lowest CPU model to ensure the greatest compatibility.
• cpuX: This class will be for virtual machines that should only run on nodes with a “CPU X” processor. VMs will be able to migrate between these nodes using the available “CPU X” instruction sets.
• cpuY: This class is for VMs that should only run on nodes with a “CPU Y” processor. VMs will be able to migrate between these nodes using the available “CPU Y” instruction sets.

CPU instruction sets are a list of all the instructions that a processor can execute, such as addition, subtraction, or memory operations. They determine what operations are possible, affect program compatibility and performance, and can change from one generation of processors to the next.

Sample resource configurations for a given cluster:

---
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineClass
metadata:
  name: universal
spec:
  cpu:
    discovery: {}
    type: Discovery
  sizingPolicies: { ... }
---
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineClass
metadata:
  name: cpuX
spec:
  cpu:
    discovery: {}
    type: Discovery
  nodeSelector:
    matchExpressions:
      - key: group
        operator: In
        values: ["blue"]
  sizingPolicies: { ... }
---
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineClass
metadata:
  name: cpuY
spec:
  cpu:
    discovery:
      nodeSelector:
        matchExpressions:
          - key: group
            operator: In
            values: ["green"]
    type: Discovery
  sizingPolicies: { ... }

Other configuration options

Example of the VirtualMachineClass resource configuration:

apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineClass
metadata:
  name: discovery
spec:
  cpu:
    # configure a generic vCPU for a given set of nodes
    discovery:
      nodeSelector:
        matchExpressions:
          - key: node-role.kubernetes.io/control-plane
            operator: DoesNotExist
    type: Discovery
  # allow VMs with this class to run only on nodes in the worker group
  nodeSelector:
    matchExpressions:
      - key: node.deckhouse.io/group
        operator: In
        values:
          - worker
  # resource configuration policy
  sizingPolicies:
    # for a range of 1 to 4 cores, it is possible to use 1 to 8GB of RAM in 512Mi increments
    # i.e. 1GB, 1.5GB, 2GB, 2.5GB etc.
    # no dedicated cores allowed
    # and all corefraction options are available
    - cores:
        min: 1
        max: 4
      memory:
        min: 1Gi
        max: 8Gi
        step: 512Mi
      dedicatedCores: [false]
      coreFractions: [5, 10, 20, 50, 100]
    # for a range of 5 to 8 cores, it is possible to use 5 to 16GB of RAM in 1GB increments
    # i.e. 5GB, 6GB, 7GB, etc.
    # it is not allowed to use dedicated cores
    # and some corefraction options are available
    - cores:
        min: 5
        max: 8
      memory:
        min: 5Gi
        max: 16Gi
        step: 1Gi
      dedicatedCores: [false]
      coreFractions: [20, 50, 100]
    # for a range of 9 to 16 cores, it is possible to use 9 to 32GB of RAM in 1GB increments
    # it is possible to use dedicated cores (or not)
    # and some variants of the corefraction parameter are available
    - cores:
        min: 9
        max: 16
      memory:
        min: 9Gi
        max: 32Gi
        step: 1Gi
      dedicatedCores: [true, false]
      coreFractions: [50, 100]
    # for the range from 17 to 1024 cores it is possible to use from 1 to 2 GB of RAM per core
    # only dedicated cores are available for use
    # and the only parameter corefraction = 100%
    - cores:
        min: 17
        max: 1024
      memory:
        perCore:
          min: 1Gi
          max: 2Gi
      dedicatedCores: [true]
      coreFractions: [100]

The following are fragments of VirtualMachineClass configurations for different tasks:

• a class with a vCPU with the required set of processor instructions, for this we use type: Features to specify the required set of supported instructions for the processor:

spec:
cpu:
features: - vmx
type: Features

• class c universal vCPU for a given set of nodes, for this we use type: Discovery:

spec:
  cpu:
    discovery:
      nodeSelector:
        matchExpressions:
          - key: node-role.kubernetes.io/control-plane
            operator: DoesNotExist
    type: Discovery

• to create a vCPU of a specific CPU with a pre-defined instruction set, we use type: Model. In advance, to get a list of supported CPU names for the cluster node, run the command:

kubectl get nodes <node-name> -o json | jq '.metadata.labels | to_entries[] | select(.key | test(“cpu-model”)) | .key | split(“/”)[1]'' -r

# Sample output:
#
# IvyBridge
# Nehalem
# Opteron_G1
# Penryn
# SandyBridge
# Westmere

then specify VirtualMachineClass in the resource specification:

spec:
  cpu:
    model: IvyBridge
    type: Model

Reliability mechanisms

Migration / Maintenance Mode

Virtual machine migration is an important feature in virtualized infrastructure management. It allows you to move running virtual machines from one physical host to another without shutting them down. Virtual machine migration is required for a number of tasks and scenarios:

• Load balancing: Moving virtual machines between nodes allows you to evenly distribute the load on servers, ensuring that resources are utilized in the best possible way.
• Node maintenance: Virtual machines can be moved from nodes that need to be taken out of service to perform routine maintenance or software upgrades.
• Upgrading Virtual Machine Firmware: Migration allows you to upgrade the “firmware” of virtual machines without interrupting their operation.

Start migration of an arbitrary machine

The following is an example of migrating a selected virtual machine:

Before starting the migration, see the current status of the virtual machine:

kubectl get vm
# NAME                                   PHASE     NODE           IPADDRESS     AGE
# linux-vm                              Running   virtlab-pt-1   10.66.10.14   79m

We can see that it is currently running on the virtlab-pt-1 node.

To migrate a virtual machine from one host to another, taking into account the virtual machine placement requirements, the VirtualMachineOperations (vmop) resource with the migrate type is used.

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineOperation
metadata:
  name: migrate-linux-vm-$(date +%s)
spec:
  # virtual machine name
  virtualMachineName: linux-vm
  # operation for migration
  type: Migrate
EOF

Immediately after creating the vmop resource, run the command:

kubectl get vm -w
# NAME                                   PHASE       NODE           IPADDRESS     AGE
# linux-vm                              Running     virtlab-pt-1   10.66.10.14   79m
# linux-vm                              Migrating   virtlab-pt-1   10.66.10.14   79m
# linux-vm                              Migrating   virtlab-pt-1   10.66.10.14   79m
# linux-vm                              Running     virtlab-pt-2   10.66.10.14   79m

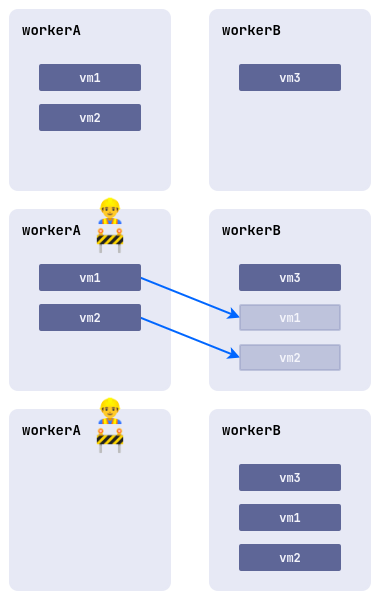

Maintenance Mode

When performing work on nodes with running virtual machines, there is a risk of disrupting their performance. To avoid this, you can put the node into maintenance mode and migrate virtual machines to other free nodes.

To do this, run the following command:

kubectl drain <nodename> --ignore-daemonsets --delete-emptydir-dat

where <nodename> is the node on which the work is to be performed and which should be freed from all resources (including system resources).

If there is a need to push only virtual machines off the node, run the following command:

kubectl drain <nodename> --pod-selector vm.kubevirt.internal.virtualization.deckhouse.io/name --delete-emptydir-data

After running the kubectl drain conmade, the node will go into maintenance mode and no virtual machines will be able to start on it. To take it out of maintenance mode, run the following command:

kubectl uncordon <nodename>

ColdStandby

ColdStandby provides a mechanism to recover a virtual machine from a failure on the host on which it was running.

The following requirements must be met for this mechanism to work:

• The virtual machine startup policy (.spec.runPolicy) must be one of: AlwaysOnUnlessStoppedManually, AlwaysOn.
• On hosts running virtual machines, the fencing mechanism must be enabled.

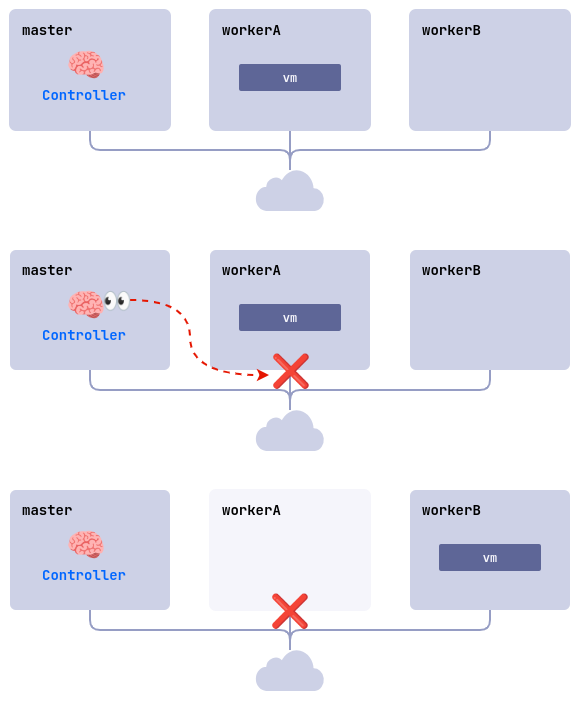

Let’s see how it works on the example:

• A cluster consists of three nodes master, workerA and workerB. The worker nodes have the Fencing mechanism enabled.
• The linux-vm virtual machine is running on the workerA node.
• A problem occurs on workerA node (power outage, network outage, etc.)
• The controller checks node availability and finds that workerA is unavailable.
• The controller removes node workerA from the cluster.
• The linux-vm virtual machine is started on another suitable node (workerB).

Storage settings

Storages are used by the VirtualDisk disk creation platform. The VirtualDisk resource is based on the PersistentVolumeClaim resource. When creating a disk, the controller will automatically select the most optimal parameters supported by the storage based on the data known to it.

Priorities for setting PersistentVolumeClaim parameters when creating a disk through automatic storage characterization:

• RWX + Block
• RWX + FileSystem
• RWO + Block
• RWO + FileSystem

If the storage is unknown and it is not possible to automatically characterize it, then RWO + FileSystem is used.

The following annotations can be used to modify the standard PersistentVolumeClaim parameter determination process for StorageClass:
