Introduction

This guide is intended for users of Deckhouse Virtualization Platform and describes how to create and modify resources that are available for creation in projects and cluster namespaces.

Quick start on creating a VM

Example of creating a virtual machine with Ubuntu 22.04.

  1. Create a virtual machine image from an external source:
d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualImage
metadata:
  name: ubuntu
spec:
  storage: ContainerRegistry
  dataSource:
    type: HTTP
    http:
      url: "https://cloud-images.ubuntu.com/minimal/releases/jammy/release/ubuntu-22.04-minimal-cloudimg-amd64.img"
EOF
  1. Create a virtual machine disk from the image created in the previous step (Caution: Make sure that the default StorageClass is present on the system before creating it):
d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualDisk
metadata:
  name: linux-disk
spec:
  dataSource:
    type: ObjectRef
    objectRef:
      kind: VirtualImage
      name: ubuntu
EOF
  1. Creating a virtual machine

The example uses the cloud-init script to create a cloud user with the cloud password generated as follows:

mkpasswd --method=SHA-512 --rounds=4096

You can change the user name and password in this section:

users:
  - name: cloud
    passwd: $6$rounds=4096$G5VKZ1CVH5Ltj4wo$g.O5RgxYz64ScD5Ach5jeHS.Nm/SRys1JayngA269wjs/LrEJJAZXCIkc1010PZqhuOaQlANDVpIoeabvKK4j1

Create a virtual machine from the following specification:

d8 k apply -f - <<"EOF"
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachine
metadata:
  name: linux-vm
spec:
  virtualMachineClassName: host
  cpu:
    cores: 1
  memory:
    size: 1Gi
  provisioning:
    type: UserData
    userData: |
      #cloud-config
      ssh_pwauth: True
      users:
      - name: cloud
        passwd: '$6$rounds=4096$saltsalt$fPmUsbjAuA7mnQNTajQM6ClhesyG0.yyQhvahas02ejfMAq1ykBo1RquzS0R6GgdIDlvS.kbUwDablGZKZcTP/'
        shell: /bin/bash
        sudo: ALL=(ALL) NOPASSWD:ALL
        lock_passwd: False
  blockDeviceRefs:
    - kind: VirtualDisk
      name: linux-disk
EOF

Useful links:

  1. Verify with the command that the image and disk have been created and the virtual machine is running. Resources are not created instantly, so you will need to wait a while before they are ready.
kubectl get vi,vd,vm
NAME                                                 PHASE   CDROM   PROGRESS   AGE
virtualimage.virtualization.deckhouse.io/ubuntu      Ready   false   100%

NAME                                                 PHASE   CAPACITY   AGE
virtualdisk.virtualization.deckhouse.io/linux-disk   Ready   300Mi      7h40m

NAME                                                 PHASE     NODE           IPADDRESS     AGE
virtualmachine.virtualization.deckhouse.io/linux-vm  Running   virtlab-pt-2   10.66.10.2    7h46m
  1. Connect to the virtual machine using the console (press Ctrl+] to exit the console):
d8 v console linux-vm

# Successfully connected to linux-vm console. The escape sequence is ^]
#
# linux-vm login: cloud
# Password: cloud
# ...
# cloud@linux-vm:~$
  1. Use the following commands to delete previously created resources:
d8 k delete vm linux-vm
d8 k delete vd linux-disk
d8 k delete vi ubuntu

Images

The VirtualImage resource is designed to load virtual machine images and then use them to create virtual machine disks. This resource is available only in the nymspace or project in which it was created.

The image creation process includes the following steps:

  • The user creates a VirtualImage resource.
  • After creation, the image is automatically loaded from the specified source into the storage (DVCR).
  • Once the download is complete, the resource becomes available for disk creation.

There are different types of images:

  • ISO image - an installation image used for the initial installation of an operating system. Such images are released by OS vendors and are used for installation on physical and virtual servers.
  • Preinstalled disk image - contains an already installed and configured operating system ready for use after the virtual machine is created. These images are offered by several vendors and can be provided in formats such as qcow2, raw, vmdk, and others.

Example of resource for obtaining virtual machine images Ubuntu: https://cloud-images.ubuntu.com

Once a share is created, the image type and size are automatically determined, and this information is reflected in the share status.

Images can be downloaded from various sources, such as HTTP servers where image files are located or container registries. It is also possible to download images directly from the command line using the curl utility.

Images can be created from other images and virtual machine disks.

Project image two storage options are supported:

  • ContainerRegistry - the default type in which the image is stored in DVCR.
  • Kubernetes - the type that uses PVC as the storage for the image. This option is preferred if you are using storage that supports PVC fast cloning, which allows you to create disks from images faster.

A full description of the VirtualImage resource configuration settings can be found at link.

Creating image from HTTP server

Consider creating an image with the option of storing it in DVCR. Execute the following command to create a VirtualImage:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualImage
metadata:
  name: ubuntu-22.04
spec:
  # Save the image to DVCR
  storage: ContainerRegistry
  # The source for the image.
  dataSource:
    type: HTTP
    http:
      url: "https://cloud-images.ubuntu.com/minimal/releases/jammy/release/ubuntu-22.04-minimal-cloudimg-amd64.img"
EOF

Check the result of the VirtualImage creation:

d8 k get virtualimage ubuntu-22.04
# or a shorter version
d8 k get vi ubuntu-22.04

# NAME           PHASE   CDROM   PROGRESS   AGE
# ubuntu-22.04   Ready   false   100%       23h

After creation the VirtualImage resource can be in the following states (phases):

  • Pending - waiting for all dependent resources required for image creation to be ready.
  • WaitForUserUpload - waiting for the user to upload the image (the phase is present only for type=Upload).
  • Provisioning - the image creation process is in progress.
  • Ready - the image is created and ready for use.
  • Failed - an error occurred during the image creation process.
  • Terminating - the image is being deleted. The image may “hang” in this state if it is still connected to the virtual machine.

As long as the image has not entered the Ready phase, the contents of the .spec block can be changed. If you change it, the disk creation process will start again. After entering the Ready phase, the contents of the .spec block cannot be changed!

You can trace the image creation process by adding the -w key to the previous command:

d8 k get vi ubuntu-22.04 -w

# NAME           PHASE          CDROM   PROGRESS   AGE
# ubuntu-22.04   Provisioning   false              4s
# ubuntu-22.04   Provisioning   false   0.0%       4s
# ubuntu-22.04   Provisioning   false   28.2%      6s
# ubuntu-22.04   Provisioning   false   66.5%      8s
# ubuntu-22.04   Provisioning   false   100.0%     10s
# ubuntu-22.04   Provisioning   false   100.0%     16s
# ubuntu-22.04   Ready          false   100%       18s

The VirtualImage resource description provides additional information about the downloaded image:

d8 k describe vi ubuntu-22.04

Now let’s look at an example of creating an image and storing it in PVC:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualImage
metadata:
  name: ubuntu-22.04-pvc
spec:
  storage: Kubernetes
  dataSource:
    type: HTTP
    http:
      url: "https://cloud-images.ubuntu.com/minimal/releases/jammy/release/ubuntu-22.04-minimal-cloudimg-amd64.img"
EOF

Check the result of the VirtualImage creation:

d8 k get vi ubuntu-22.04-pvc

# NAME              PHASE   CDROM   PROGRESS   AGE
# ubuntu-22.04-pvc  Ready   false   100%       23h

Creating an image from Container Registry

An image stored in Container Registry has a certain format. Let’s look at an example:

First, download the image locally:

curl -L https://cloud-images.ubuntu.com/minimal/releases/jammy/release/ubuntu-22.04-minimal-cloudimg-amd64.img -o ubuntu2204.img

Next, create a Dockerfile with the following contents:

FROM scratch
COPY ubuntu2204.img /disk/ubuntu2204.img

Build the image and load it into the container registry. The example below uses docker.io as the container registry. you need to have a service account and a customized environment to run it.

docker build -t docker.io/<username>/ubuntu2204:latest

where username is the username specified when registering with docker.io.

Load the created image into the container registry:

docker push docker.io/<username>/ubuntu2204:latest

To use this image, create a resource as an example:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualImage
metadata:
  name: ubuntu-2204
spec:
  storage: ContainerRegistry
  dataSource:
    type: ContainerImage
    containerImage:
      image: docker.io/<username>/ubuntu2204:latest
EOF

Load an image from the command line

To load an image from the command line, first create the following resource as shown below with the VirtualImage example:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualImage
metadata:
  name: some-image
spec:
  storage: ContainerRegistry
  dataSource:
    type: Upload
EOF

Once created, the resource will enter the WaitForUserUpload phase, which means it is ready for image upload.

There are two options available for uploading from a cluster node and from an arbitrary node outside the cluster:

d8 k get vi some-image -o jsonpath="{.status.imageUploadURLs}"  | jq

# {
#   "external":"https://virtualization.example.com/upload/g2OuLgRhdAWqlJsCMyNvcdt4o5ERIwmm",
#   "inCluster":"http://10.222.165.239"
# }

As an example, download the Cirros image:

curl -L http://download.cirros-cloud.net/0.5.1/cirros-0.5.1-x86_64-disk.img -o cirros.img

Upload the image using the following command:

curl https://virtualization.example.com/upload/g2OuLgRhdAWqlJsCMyNvcdt4o5ERIwmm --progress-bar -T cirros.img | cat

After the upload is complete, the image should be created and enter the Ready phase

d8 k get vi some-image
# NAME         PHASE   CDROM   PROGRESS   AGE
# some-image   Ready   false   100%       1m

Creating an image from a disk

It is possible to create an image from disk. To do so, one of the following conditions must be met:

  • The disk is not attached to any virtual machine.
  • The virtual machine to which the disk is attached is in a powered off state.

Example of creating an image from a disk:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualImage
metadata:
  name: linux-vm-root
spec:
  storage: ContainerRegistry
  dataSource:
    type: ObjectRef
    objectRef:
      kind: VirtualDisk
      name: linux-vm-root
EOF

Disks

Disks in virtual machines are necessary for writing and storing data, ensuring that applications and operating systems can fully function. Under the hood of these disks is the storage provided by the platform (PVC).

Depending on the storage properties, the behavior of disks during creation and virtual machines during operation may differ:

VolumeBindingMode property:

Immediate - The disk is created immediately after the resource is created (the disk is assumed to be available for connection to a virtual machine on any node in the cluster).

WaitForFirstConsumer - The disk is created only after it is connected to the virtual machine and is created on the node on which the virtual machine will be running.

AccessMode:

  • ReadWriteOnce (RWO) - only one instance of the virtual machine is granted access to the disk. Live migration of virtual machines with these disks is not possible.
  • ReadWriteMany (RWX) - multiple disk access. Live migration of virtual machines with such disks is possible.

When creating a disk, the controller will independently determine the most optimal parameters supported by the storage.

Attention: It is impossible to create disks from iso-images!

To find out the available storage options on the platform, run the following command:

kubectl get storageclass

# NAME                          PROVISIONER                           RECLAIMPOLICY   VOLUMEBINDINGMODE      ALLOWVOLUMEEXPANSION   AGE
# i-linstor-thin-r1 (default)   replicated.csi.storage.deckhouse.io   Delete          Immediate              true                   48d
# i-linstor-thin-r2             replicated.csi.storage.deckhouse.io   Delete          Immediate              true                   48d
# i-linstor-thin-r3             replicated.csi.storage.deckhouse.io   Delete          Immediate              true                   48d
# linstor-thin-r1               replicated.csi.storage.deckhouse.io   Delete          WaitForFirstConsumer   true                   48d
# linstor-thin-r2               replicated.csi.storage.deckhouse.io   Delete          WaitForFirstConsumer   true                   48d
# linstor-thin-r3               replicated.csi.storage.deckhouse.io   Delete          WaitForFirstConsumer   true                   48d
# nfs-4-1-wffc                  nfs.csi.k8s.io                        Delete          WaitForFirstConsumer   true                   30d

A full description of the disk configuration settings can be found at link.

Create an empty disk

Empty disks are usually used to install an OS on them, or to store some data.

Create a disk:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualDisk
metadata:
  name: blank-disk
spec:
  # Disk storage parameter settings.
  persistentVolumeClaim:
    # Substitute your StorageClass name.
    storageClassName: i-linstor-thin-r2
    size: 100Mi
EOF

After creation, the VirtualDisk resource can be in the following states (phases):

  • Pending - waiting for all dependent resources required for disk creation to be ready.
  • Provisioning - disk creation process is in progress.
  • Resizing - the process of resizing the disk is in progress.
  • WaitForFirstConsumer - the disk is waiting for the virtual machine that will use it to be created.
  • Ready - the disk has been created and is ready for use.
  • Failed - an error occurred during the creation process.
  • Terminating - the disk is being deleted. The disk may “hang” in this state if it is still connected to the virtual machine.

As long as the disk has not entered the Ready phase, the contents of the entire .spec block can be changed. If changes are made, the disk creation process will start over.

Check the status of the disk after creation with the command:

d8 k get vd blank-disk
# NAME       PHASE   CAPACITY   AGE
# blank-disk   Ready   100Mi      1m2s

Creating a disk from an image

A disk can also be created and populated with data from previously created ClusterVirtualImage and VirtualImage images.

When creating a disk, you can specify its desired size, which must be equal to or larger than the size of the extracted image. If no size is specified, a disk will be created with the size corresponding to the original disk image.

Using the example of the previously created image VirtualImage, let’s consider the command that allows you to determine the size of the unpacked image:

d8 k get vi ubuntu-22.04 -o wide

# NAME           PHASE   CDROM   PROGRESS   STOREDSIZE   UNPACKEDSIZE   REGISTRY URL                                                                       AGE
# ubuntu-22.04   Ready   false   100%       285.9Mi      2.5Gi          dvcr.d8-virtualization.svc/cvi/ubuntu-22.04:eac95605-7e0b-4a32-bb50-cc7284fd89d0   122m

The size you are looking for is specified in the UNPACKEDSIZE column and is 2.5Gi.

Let’s create a disk from this image:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualDisk
metadata:
  name: linux-vm-root
spec:
  # Disk storage parameter settings.
  persistentVolumeClaim:
    # Specify a size larger than the value of the unpacked image.
    size: 10Gi
    # Substitute your StorageClass name.
    storageClassName: i-linstor-thin-r2
  # The source from which the disk is created.
  dataSource:
    type: ObjectRef
    objectRef:
      kind: VirtualImage
      name: ubuntu-22.04
EOF

Now create a disk, without explicitly specifying the size:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualDisk
metadata:
  name: linux-vm-root-2
spec:
  # Disk storage settings.
  persistentVolumeClaim:
    # Substitute your StorageClass name.
    storageClassName: i-linstor-thin-r2
  # The source from which the disk is created.
  dataSource:
    type: ObjectRef
    objectRef:
      kind: VirtualImage
      name: ubuntu-22.04
EOF

Check the status of the disks after creation:

d8 k get vd

# NAME           PHASE   CAPACITY   AGE
# linux-vm-root    Ready   10Gi       7m52s
# linux-vm-root-2  Ready   2590Mi     7m15s

Change disk size

You can increase the size of disks even if they are already attached to a running virtual machine. To do this, edit the spec.persistentVolumeClaim.size field:

Check the size before the change:

d8 k get vd linux-vm-root

# NAME          PHASE   CAPACITY   AGE
# linux-vm-root   Ready   10Gi       10m

Let’s apply the changes:

kubectl patch vd linux-vm-root --type merge -p '{"spec":{"persistentVolumeClaim":{"size":"11Gi"}}}'

Let’s check the size after the change:

d8 k get vd linux-vm-root

# NAME          PHASE   CAPACITY   AGE
# linux-vm-root   Ready   11Gi       12m

Virtual Machines

The VirtualMachine resource is used to create a virtual machine, its parameters allow you to configure:

  • virtual machine class
  • resources required for virtual machine operation (processor, memory, disks and images);
  • rules of virtual machine placement on cluster nodes;
  • boot loader settings and optimal parameters for the guest OS;
  • virtual machine startup policy and policy for applying changes;
  • initial configuration scenarios (cloud-init);
  • list of block devices.

The full description of virtual machine configuration parameters can be found at link

Creating a virtual machine

Below is an example of a simple virtual machine configuration running Ubuntu OS 22.04. The example uses the initial virtual machine initialization script (cloud-init), which installs the qemu-guest-agent guest agent and the nginx service, and creates the cloud user with the cloud password:

The password in the example was generated using the command mkpasswd --method=SHA-512 --rounds=4096 -S saltsalt and you can change it to your own if necessary:

Create a virtual machine with the disk created previously:

d8 k apply -f - <<"EOF"
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachine
metadata:
  name: linux-vm
spec:
  # VM class name.
  virtualMachineClassName: host
  # Block of scripts for the initial initialization of the VM.
  provisioning:
    type: UserData
    # Example cloud-init script to create cloud user with cloud password and install qemu-guest-agent service and nginx service.
    userData: |
      #cloud-config
      package_update: true
      packages:
        - nginx
        - qemu-guest-agent
      run_cmd:
        - systemctl daemon-relaod
        - systemctl enable --now nginx.service
        - systemctl enable --now qemu-guest-agent.service
      ssh_pwauth: True
      users:
      - name: cloud
        passwd: '$6$rounds=4096$saltsalt$fPmUsbjAuA7mnQNTajQM6ClhesyG0.yyQhvahas02ejfMAq1ykBo1RquzS0R6GgdIDlvS.kbUwDablGZKZcTP/'
        shell: /bin/bash
        sudo: ALL=(ALL) NOPASSWD:ALL
        lock_passwd: False
      final_message: "The system is finally up, after $UPTIME seconds"
  # VM resource settings.
  cpu:
    # Number of CPU cores.
    cores: 1

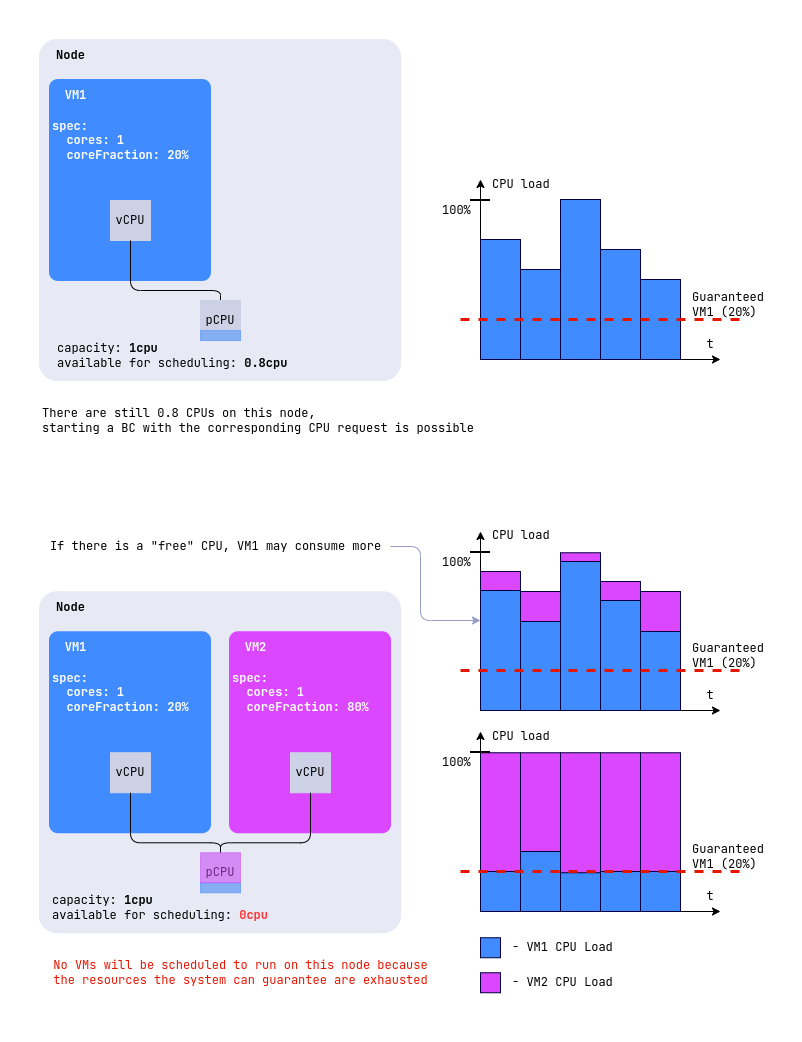

    # Request 10% of the CPU time of one physical core.
    coreFraction: 10%
  memory:
    # Amount of RAM.
    size: 1Gi
  # List of disks and images used in the VM.
  blockDeviceRefs:
    # The order of disks and images in this block determines the boot priority.
    - kind: VirtualDisk
      name: linux-vm-root
EOF

After creation, VirtualMachine can be in the following states (phases):

  • Pending - waiting for the readiness of all dependent resources required to start the virtual machine.
  • Starting - the process of starting the virtual machine is in progress.
  • Running - the virtual machine is running.
  • Stopping - the virtual machine is in the process of stopping.
  • Stopped - the virtual machine is stopped.
  • Terminating - the virtual machine is being deleted.
  • Migrating - the virtual machine is in a live migration state to another host.

Check the state of the virtual machine after creation:

d8 k get vm linux-vm

# NAME        PHASE     NODE           IPADDRESS     AGE
# linux-vm   Running   virtlab-pt-2   10.66.10.12   11m

After creation, the virtual machine will automatically get an IP address from the range specified in the module settings (virtualMachineCIDRs block).

Connecting to a virtual machine

The following methods are available for connecting to the virtual machine:

  • remote management protocol (such as SSH), which must be preconfigured on the virtual machine.
  • serial console
  • VNC protocol

An example of connecting to a virtual machine using a serial console:

d8 v console linux-vm

# Successfully connected to linux-vm console. The escape sequence is ^]

linux-vm login: cloud
Password: cloud

Press Ctrl+] to finalize the serial console.

Example command for connecting via VNC:

d8 v vnc linux-vm

Example command for connecting via SSH.

d8 v ssh cloud@linux-vm --local-ssh

Virtual machine startup policy and virtual machine state management

The virtual machine startup policy is intended for automated virtual machine state management. It is defined as the .spec.runPolicy parameter in the virtual machine specification. The following policies are supported:

  • AlwaysOnUnlessStoppedManually - (default) after creation, the VM is always in a running state. In case of failures the VM operation is restored automatically. It is possible to stop the VM only by calling the d8 v stop command or creating a corresponding operation.
  • AlwaysOn - after creation the VM is always in a running state, even in case of its shutdown by OS means. In case of failures the VM operation is restored automatically.
  • Manual - after creation, the state of the VM is controlled manually by the user using commands or operations.
  • AlwaysOff - after creation the VM is always in the off state. There is no possibility to turn on the VM through commands/operations.

The state of the virtual machine can be controlled using the following methods:

Creating a VirtualMachineOperation (vmop) resource. Using the d8 utility with the corresponding subcommand.

The VirtualMachineOperation resource declaratively defines an imperative action to be performed on the virtual machine. This action is applied to the virtual machine immediately after it is created by the corresponding vmop. The action is applied to the virtual machine once.

Example operation to perform a reboot of a virtual machine named linux-vm:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineOperation
metadata:
  name: restart-linux-vm-$(date +%s)
spec:
  virtualMachineName: linux-vm
  type: Restart
EOF

You can view the result of the action using the command:

d8 k get virtualmachineoperation
# or
d8 k get vmop

The same action can be performed using the d8 utility:

d8 v restart  linux-vm

A list of possible operations is given in the table below:

d8 vmop type Action
d8 v stop stop Stop VM Stop VM
d8 v start start Start the VM
d8 v restart restart Restart the VM
d8 v migrate migrate Migrate the VM to another host

Change virtual machine configuration

You can change the configuration of a virtual machine at any time after the VirtualMachine resource has been created. However, how these changes are applied depends on the current phase of the virtual machine and the nature of the changes made.

Changes to the virtual machine configuration can be made using the following command:

d8 k edit vm linux-vm

If the virtual machine is in a shutdown state (.status.phase: Stopped), the changes made will take effect immediately after the virtual machine is started.

If the virtual machine is running (.status.phase: Running), the way the changes are applied depends on the type of change:

Configuration block How changes are applied
.metadata.labels Applies immediately
.metadata.annotations Applies immediately
.spec.runPolicy Applies immediately
.spec.disruptions.restartApprovalMode Applies immediately
.spec.* Only after VM restart

Let’s consider an example of changing the configuration of a virtual machine:

Suppose we want to change the number of processor cores. The virtual machine is currently running and using one core, which can be confirmed by connecting to it through the serial console and executing the nproc command.

d8 v ssh cloud@linux-vm --local-ssh --command "nproc"
# 1

Apply the following patch to the virtual machine to change the number of cores from 1 to 2.

d8 k patch vm linux-vm --type merge -p '{"spec":{"cpu":{"cores":2}}}'
# virtualmachine.virtualization.deckhouse.io/linux-vm patched

Configuration changes have been made but not yet applied to the virtual machine. Check this by re-executing:

d8 v ssh cloud@linux-vm --local-ssh --command "nproc"
# 1

A restart of the virtual machine is required to apply this change. Run the following command to see the changes waiting to be applied (requiring a restart):

d8 k get vm linux-vm -o jsonpath="{.status.restartAwaitingChanges}" | jq .

# [
#   {
#     "currentValue": 1,
#     "desiredValue": 2,
#     "operation": "replace",
#     "path": "cpu.cores"
#   }
# ]

Run the command:

d8 k get vm linux-vm -o wide

# NAME        PHASE     CORES   COREFRACTION   MEMORY   NEED RESTART   AGENT   MIGRATABLE   NODE           IPADDRESS     AGE
# linux-vm   Running   2       100%           1Gi      True           True    True         virtlab-pt-1   10.66.10.13   5m16s

In the NEED RESTART column we see the value True, which means that a reboot is required to apply the changes.

Let’s reboot the virtual machine:

d8 v restart linux-vm

After a reboot, the changes will be applied and the .status.restartAwaitingChanges block will be empty.

Execute the command to verify:

d8 v ssh cloud@linux-vm --local-ssh --command "nproc"
# 2

The default behavior is to apply changes to the virtual machine through a “manual” restart. If you want to apply the changes immediately and automatically, you need to change the change application policy:

spec:
  disruptions:
    restartApprovalMode: Automatic

Initialization scripts

Initialization scripts are intended for the initial configuration of a virtual machine when it is started.

The initial initial initialization scripts supported are:

The CloudInit script can be embedded directly into the virtual machine specification, but this script is limited to a maximum length of 2048 bytes:

spec:
  provisioning:
    type: UserData
    userData: |
      #cloud-config
      package_update: true
      ...

For longer scenarios and/or the presence of private data, the script for initial initial initialization of the virtual machine can be created in Secret. An example of Secret with a CloudInit script is shown below:

apiVersion: v1
kind: Secret
metadata:
  name: cloud-init-example
data:
  userData: <base64 data>
type: provisioning.virtualization.deckhouse.io/cloud-init

A fragment of the virtual machine configuration using the CloudInit initialization script stored in Secret:

spec:
  provisioning:
    type: UserDataRef
    userDataRef:
      kind: Secret
      name: cloud-init-example

Note: The value of the .data.userData field must be Base64 encoded.

To configure Windows virtual machines using Sysprep, only the Secret variant is supported.

An example of Secret with Sysprep script is shown below:

apiVersion: v1
kind: Secret
metadata:
  name: sysprep-example
data:
  unattend.xml: <base64 data>
type: provisioning.virtualization.deckhouse.io/sysprep

Note: The value of the .data.unattend.xml field must be Base64 encoded.

fragment of virtual machine configuration using Sysprep initialization script in Secret:

spec:
  provisioning:
    type: SysprepRef
    sysprepRef:
      kind: Secret
      name: sysprep-example

Placement of VMs by nodes

The following approaches can be used to manage the placement of virtual machines across nodes:

  • Simple label binding (nodeSelector)
  • Preferred binding (Affinity)
  • Avoid co-location (AntiAffinity)

Simple label binding (nodeSelector)

A nodeSelector is the simplest way to control the placement of virtual machines using a set of labels. It allows you to specify on which nodes virtual machines can run by selecting nodes with the desired labels.

spec:
  nodeSelector:
    disktype: ssd

In this example, the virtual machine will only be placed on hosts that have a disktype label with a value of ssd.

Preferred Binding (Affinity)

Affinity provides more flexible and powerful tools than nodeSelector. It allows you to specify preferences and obligations for virtual machine placement. Affinity supports two views: nodeAffinity and virtualMachineAndPodAffinity.

nodeAffinity allows you to define on which nodes a virtual machine can run using label expressions, and can be soft (preferred) or hard (required).

Example of using nodeAffinity:

spec:
  affinity:
    nodeAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        nodeSelectorTerms:
          - matchExpressions:
              - key: disktype
                operator: In
                values:
                  - ssd

In this example, the virtual machine will only be placed on hosts that have a disktype label with a value of ssd.

virtualMachineAndPodAffinity controls the placement of virtual machines relative to other virtual machines. It allows you to set a preference for placing virtual machines on the same nodes where certain virtual machines are already running.

Example:

spec:
  affinity:
    virtualMachineAndPodAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        - weight: 1
          podAffinityTerm:
            labelSelector:
              matchLabels:
                server: database
            topologyKey: "kubernetes.io/hostname"

In this example, the virtual machine will be placed, if possible (since preffered is used) only on hosts that have a virtual machine with the server label and database value.

Avoid co-location (AntiAffinity)

AntiAffinity is the opposite of Affinity, which allows you to specify requirements to avoid co-location of virtual machines on the same hosts. This is useful for load balancing or fault tolerance.

The terms Affinity and AntiAffinity apply only to the relationship between virtual machines. For nodes, the bindings used are called nodeAffinity. There is no separate antithesis in nodeAffinity as with virtualMachineAndPodAffinity, but you can create opposite conditions by specifying negative operators in label expressions: to emphasize the exclusion of certain nodes, you can use nodeAffinity with an operator such as NotIn.

Example of using virtualMachineAndPodAntiAffinity:

spec:
  affinity:
    virtualMachineAndPodAntiAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        - labelSelector:
            matchLabels:
              server: database
          topologyKey: "kubernetes.io/hostname"

In this example, the virtual machine being created will not be placed on the same host as the virtual machine labeled server: database.

Static and dynamic block devices

Block devices can be divided into two types based on how they are connected: static and dynamic (hotplug).

Static block devices

Static block devices are specified in the virtual machine specification in the .spec.blockDeviceRefs block. This block is a list that can include the following block devices:

  • VirtualImage.
  • ClusterVirtualImage
  • VirtualDisk.

The order of the devices in this list determines the sequence in which they are loaded. Thus, if a disk or image is listed first, the boot loader will try to boot from it first. If it fails, the system will move to the next device in the list and try to boot from it. And so on until the first boot loader is detected.

Changing the composition and order of devices in the .spec.blockDeviceRefs block is possible only with a reboot of the virtual machine.

Dynamic Block Devices

Dynamic block devices can be connected and disconnected from a virtual machine that is in a running state without having to reboot it.

The VirtualMachineBlockDeviceAttachment (vmbda) resource is used to connect dynamic block devices. Currently, only VirtualDisk is supported for connection as a dynamic block device.

Create the following resource that will connect an empty blank-disk disk to the linux-vm virtual machine:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineBlockDeviceAttachment
metadata:
  name: attach-blank-disk
spec:
  blockDeviceRef:
    kind: VirtualDisk
    name: blank-disk
  virtualMachineName: linux-vm
EOF

After creation, VirtualMachineBlockDeviceAttachment can be in the following states (phases):

  • Pending - waiting for all dependent resources to be ready.
  • InProgress - the process of device connection is in progress.
  • Attached - the device is connected.

Check the state of your resource::

d8 k get vmbda attach-blank-disk

# NAME              PHASE      VIRTUAL MACHINE NAME   AGE
# attach-blank-disk   Attached   linux-vm              3m7s

Connect to the virtual machine and make sure the disk is connected:

d8 v ssh cloud@linux-vm --local-ssh --command "lsblk"

# NAME    MAJ:MIN RM  SIZE RO TYPE MOUNTPOINTS
# sda       8:0    0   10G  0 disk <--- statically mounted linux-vm-root disk
# |-sda1    8:1    0  9.9G  0 part /
# |-sda14   8:14   0    4M  0 part
# `-sda15   8:15   0  106M  0 part /boot/efi
# sdb       8:16   0    1M  0 disk <--- cloudinit
# sdc       8:32   0 95.9M  0 disk <--- dynamically mounted disk blank-disk

To detach the disk from the virtual machine, delete the previously created resource:

d8 k delete vmbda attach-blank-disk

Publishing virtual machines using services

Quite often there is a need to make access to these virtual machines possible from the outside, for example, for publishing services or remote administration. For these purposes, we can use services that provide routing of traffic from the external network to internal cluster resources. Let’s consider several options.

Preliminary, put the following labels on the previously created vm:

d8 k label vm linux-vm app=nginx
# virtualmachine.virtualization.deckhouse.io/linux-vm labeled

Publish virtual machine services using a service with the NodePort type

The NodePort service opens a specific port on all nodes in the cluster, redirecting traffic to a given internal service port.

Create the following service:

d8 k apply -f - <<EOF
apiVersion: v1
kind: Service
metadata:
  name: linux-vm-nginx-nodeport
spec:
  type: NodePort
  selector:
    # label by which the service determines which virtual machine to direct traffic to
    app: nginx
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
      nodePort: 31880
EOF

In this example, a service with the type NodePort will be created that opens external port 31880 on all nodes in your cluster. This port will forward incoming traffic to internal port 80 on the virtual machine where the Nginx application is running.

Publishing virtual machine services using a service with the LoadBalancer service type

When using the LoadBalancer service type, the cluster creates an external load balancer that will distribute incoming traffic to all instances of your virtual machine.

d8 k apply -f - <<EOF
apiVersion: v1
kind: Service
metadata:
  name: linux-vm-nginx-lb
spec:
  type: LoadBalancer
  selector:
    # label by which the service determines which virtual machine to direct traffic to
    app: nginx
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
EOF

Publish virtual machine services using Ingress

Ingress allows you to manage incoming HTTP/HTTPS requests and route them to different servers within your cluster. This is the most appropriate method if you want to use domain names and SSL termination to access your virtual machines.

To publish a virtual machine service through Ingress, you must create the following resources:

An internal service to bind to Ingress. Example:

d8 k apply -f - <<EOF
apiVersion: v1
kind: Service
metadata:
  name: linux-vm-nginx
spec:
  selector:
    # label by which the service determines which virtual machine to direct traffic to
    app: nginx
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
EOF

And an Ingress resource for publishing. Example:

d8 k apply -f - <<EOF
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: linux-vm
spec:
  rules:
    - host: linux-vm.example.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: linux-vm-nginx
                port:
                  number: 80
EOF

Live Virtual Machine Migration

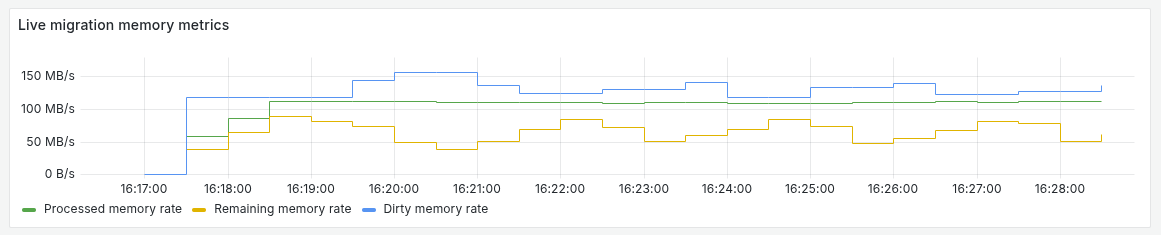

Virtual machine migration is an important feature in managing virtualized infrastructure. It allows you to move running virtual machines from one physical host to another without shutting them down.

Migration can be performed automatically when:

  • Updating the “firmware” of a virtual machine.
  • Rebalancing the load on the cluster nodes.
  • Transferring nodes to maintenance mode for work.

Virtual machine migration can also be performed at the user’s request. Let’s take an example:

Before starting the migration, view the current status of the virtual machine::

kubectl get vm
# NAME                                   PHASE     NODE           IPADDRESS     AGE
# linux-vm                              Running   virtlab-pt-1   10.66.10.14   79m

We can see that it is currently running on the virtlab-pt-1 node.

To migrate a virtual machine from one node to another, taking into account the requirements for virtual machine placement, the VirtualMachineOperations (vmop) resource with the migrate type is used.

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineOperation
metadata:
  name: migrate-linux-vm-$(date +%s)
spec:
  # virtual machine name
  virtualMachineName: linux-vm
  # operation to migrate
  type: Migrate
EOF

Immediately after creating the vmip resource, run the command:

kubectl get vm -w
# NAME                                   PHASE       NODE           IPADDRESS     AGE
# linux-vm                              Running     virtlab-pt-1   10.66.10.14   79m
# linux-vm                              Migrating   virtlab-pt-1   10.66.10.14   79m
# linux-vm                              Migrating   virtlab-pt-1   10.66.10.14   79m
# linux-vm                              Running     virtlab-pt-2   10.66.10.14   79m

You can also use the command to perform the migration:

d8 v migrate <vm-name>

IP addresses of virtual machines

The .spec.settings.virtualMachineCIDRs block in the virtualization module configuration specifies a list of subnets to assign ip addresses to virtual machines (a shared pool of ip addresses). All addresses in these subnets are available for use except the first (network address) and the last (broadcast address).

VirtualMachineIPAddressLease (vmipl) resource: A cluster resource that manages IP address leases from the shared pool specified in virtualMachineCIDRs.

To see a list of IP address leases (vmipl), use the command:

d8 k get vmipl
# NAME             VIRTUALMACHINEIPADDRESS                              STATUS   AGE
# ip-10-66-10-14   {"name":"linux-vm-7prpx","namespace":"default"}     Bound    12h

VirtualMachineIPAddress (vmip) resource: A project/namespace resource that is responsible for reserving leased IP addresses and binding them to virtual machines. IP addresses can be allocated automatically or by explicit request.

To see a list of vmip, use the command:

d8 k get vmipl
# NAME             VIRTUALMACHINEIPADDRESS                              STATUS   AGE
# ip-10-66-10-14   {"name":"linux-vm-7prpx","namespace":"default"}     Bound    12h

By default, an ip address is automatically assigned to a virtual machine from the subnets defined in the module and is assigned to it until it is deleted. You can check the assigned ip address using the command:

k get vmip
# NAME              ADDRESS       STATUS     VM          AGE
# linux-vm-7prpx   10.66.10.14   Attached   linux-vm   12h

The algorithm for automatically assigning an ip address to a virtual machine is as follows:

  • The user creates a virtual machine named <vmname>.
  • The module controller automatically creates a vmip resource named <vmname>-<hash> to request an IP address and associate it with the virtual machine.
  • To do this, vmip creates a vmipl lease resource that selects a random IP address from a shared pool.
  • Once the vmip resource is created, the virtual machine receives the assigned IP address.

The virtual machine’s IP address is assigned automatically from the subnets defined in the module and remains assigned to the machine until it is deleted. After the virtual machine is deleted, the vmip resource is also deleted, but the IP address remains temporarily assigned to the project/namespace and can be re-requested explicitly.

The full description of vmip and vmipl machine resource configuration parameters can be found at the links:

How to request a required ip address?

Task: request a specific ip address from the virtualMachineCIDRs subnets.

Create a vmip resource:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineIPAddress
metadata:
  name: linux-vm-custom-ip
spec:
  staticIP: 10.66.20.77
  type: Static
EOF

Create a new or modify an existing virtual machine and specify the required vmip resource explicitly in the specification:

spec:
  virtualMachineIPAdressName: linux-vm-custom-ip

How to save the ip address assigned to the virtual machine?

Objective: to save the ip address issued to a virtual machine for reuse after the virtual machine is deleted.

To ensure that the automatically assigned ip address of a virtual machine is not deleted along with the virtual machine itself, perform the following steps.

Obtain the vmip resource name for the specified virtual machine:

d8 k get vm linux-vm -o jsonpath="{.status.virtualMachineIPAddressName}"
# linux-vm-7prpx

Remove the .metadata.ownerReferences blocks from the resource found:

d8 k patch vmip linux-vm-7prpx --type=merge --patch '{"metadata":{"ownerReferences":null}}'

After the virtual machine is deleted, the vmip resource is preserved and can be reused again in the newly created virtual machine:

spec:
  virtualMachineIPAdressName: linux-vm-7prpx

Even if the vmip resource is deleted. It remains rented for the current project/namespace for another 10 minutes. Therefore, it is possible to reoccupy it on request:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineIPAddress
metadata:
  name: linux-vm-custom-ip
spec:
  staticIP: 10.66.20.77
  type: Static
EOF

Snapshots

Snapshots are designed to save the state of a resource at a particular point in time. Disk snapshots and virtual machine snapshots are currently supported.

Creating snapshots from disks

The VirtualDiskSnapshot resource is used to create disk snapshots. It can be used as data sources for creating new virtual disks.

To guarantee data integrity and consistency, a disk snapshot can be created in the following cases:

  • the virtual disk is not attached to any virtual machine;
  • the virtual disk is attached to a virtual machine that is powered off;
  • the virtual disk is connected to a running virtual machine, an agent (qemu-guest-agent) is installed in the virtual machine OS, the operation to “freeze” the file system was successful.

If integrity and consistency is not important, the snapshot can be performed on a running virtual machine without “freezing” the file system, for this purpose in the specification of the resource VirtualDiskSnapshot add:

spec:
  requiredConsistency: false

When creating a snapshot, you must specify the names of the VolumeSnapshotClasses volume snapshot class that will be used to create the snapshot.

To get a list of supported VolumeSnapshotClasses resources, run the command:

d8 k get volumesnapshotclasses
# NAME                     DRIVER                                DELETIONPOLICY   AGE
# csi-nfs-snapshot-class   nfs.csi.k8s.io                        Delete           34d
# sds-replicated-volume    replicated.csi.storage.deckhouse.io   Delete           39d

An example manifest for creating a disk snapshot:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualDiskSnapshot
metadata:
  name: linux-vm-root-$(date +%s)
spec:
  requiredConsistency: true
  virtualDiskName: linux-vm-root
  volumeSnapshotClassName: sds-replicated-volume
EOF

To view a list of disk snapshots, run the following command:

d k get vdsnapshot
# NAME                     PHASE     CONSISTENT   AGE
# linux-vm-root-1728027905   Ready                  3m2s

After creation, VirtualDiskSnapshot can be in the following states (phases):

  • Pending - waiting for all dependent resources required for snapshot creation to be ready.
  • InProgress - the process of creating a virtual disk snapshot is in progress.
  • Ready - snapshot creation has been successfully completed and the virtual disk snapshot is available for use.
  • Failed - an error occurred during the virtual disk snapshot creation process.
  • Terminating - the resource is in the process of being deleted.

A full description of the VirtualDiskSnapshot resource configuration parameters for machines can be found at link

Recovering snapshots from disks

In order to restore a disk from a previously created disk snapshot, you must specify a corresponding object as dataSource:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualDisk
metadata:
  name: linux-vm-root
spec:
  persistentVolumeClaim:
    size: 10Gi
    # Substitute your StorageClass name.
    storageClassName: i-linstor-thin-r2
  dataSource:
    type: ObjectRef
    objectRef:
      kind: VirtualDiskSnapshot
      name: linux-vm-root-1728027905
EOF

Creating snapshots of virtual machines

The VirtualMachineSnapshot resource is used to create virtual machine snapshots.

To ensure data integrity and consistency, a virtual machine snapshot will be created if at least one of the following conditions is met:

  • the virtual machine is powered off;
  • an agent (qemu-guest-agent) is installed in the virtual machine’s operating system, and the operation to freeze the file system was successful.

If integrity and consistency are not important, a snapshot can be created on a running virtual machine without “freezing” the file system. To do this, specify in the VirtualMachineSnapshot resource specification:

spec:
  requiredConsistency: false

When creating a snapshot, you must specify the names of the VolumeSnapshotClasses volume snapshot classes that will be used to create snapshots of the disks attached to the virtual machine.

To get a list of supported VolumeSnapshotClasses resources, run the command:

d8 k get volumesnapshotclasses
# NAME                     DRIVER                                DELETIONPOLICY   AGE
# csi-nfs-snapshot-class   nfs.csi.k8s.io                        Delete           34d
# sds-replicated-volume    replicated.csi.storage.deckhouse.io   Delete           39d

Creating a virtual machine snapshot will fail if at least one of the following conditions is met:

  • not all dependencies of the virtual machine are ready;
  • there are changes pending restart of the virtual machine;
  • there is a disk in the process of resizing among the dependent devices.

When you create a snapshot of the virtual machine, the IP address will be converted to a static IP address and will be used later when restoring the virtual machine from the snapshot.

If you do not want to convert and use the old IP address of the virtual machine, you can set the corresponding policy to Never. In this case, the address type without conversion (Auto or Static) will be used.

spec:
  keepIPAddress: Never

An example manifest to create a snapshot of a virtual machine:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineSnapshot
metadata:
  name: linux-vm-snapshot
spec:
  virtualMachineName: linux-vm
  volumeSnapshotClasses:
    - # Substitute your StorageClass name.: i-linstor-thin-r2 # Substitute your StorageClass name.
      volumeSnapshotClassName: sds-replicated-volume # Substitute your VolumeSnapshotClass name.
  requiredConsistency: true
  keepIPAddress: Never
EOF

Restore snapshots from virtual machines

The VirtualMachineRestore resource is used to restore virtual machines from snapshots.

The restore process will create a new virtual machine and all its dependent resources (disks, IP address, resource with automation script (Secret) and resources for dynamic disk attachment (VirtualMachineBlockDeviceAttachment)).

If there is a name conflict between existing and restored resources for VirtualMachine, VirtualDisk, or VirtualMachineBlockDeviceAttachment, the restore will fail. To avoid this, use the nameReplacements parameter.

If the VirtualMachineIPAddress resource to be recovered is already present in the cluster, it must not be attached to another virtual machine, and if it is a resource of type Static, its IP address must match. The recovered secret with automation must also fully match the recovered secret. Failure to meet these conditions will cause the recovery to fail.

Example manifest for restoring a virtual machine from a snapshot:

d8 k apply -f - <<EOF
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineRestore
metadata:
  name: linux-vm-restore
spec:
  virtualMachineSnapshotName: linux-vm-snapshot
  nameReplacements:
    - from:
        kind: VirtualMachine
        name: linux-vm
      to: linux-vm-2 # recreate an existing `linux-vm` virtual machine with the new name `linux-vm-2`.
    - from:
        kind: VirtualDisk
        name: linux-vm-root
      to: linux-vm-root-2 # recreate the existing `linux-vm-root` virtual disk with the new name `linux-vm-root-2`.
    - from:
        kind: VirtualDisk
        name: blank-disk
      to: blank-disk-2 # recreate the existing `blank-disk` virtual disk with the new name `blank-disk-2`.
    - from:
        kind: VirtualMachineBlockDeviceAttachment
        name: attach-blank-disk
      to: attach-blank-disk-2 # recreate the existing `attach-blank-disk` virtual disk with the new name `attach-blank-disk-2`.
EOF
