The cloud-init package must be installed on the VMs. After the virtual machine is started, the following services associated with this package must be started:

  • cloud-config.service;
  • cloud-final.service;
  • cloud-init.service.

To use the cloud-provider and machine-controller-manager modules, you must access the AWS API as an IAM user with a sufficient set of privileges.

Make sure that you have access to the desired regions and that you have the necessary quotas.

JSON Policy

First, prepare a JSON file with the configuration of the necessary privileges:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": [
                "autoscaling:DescribeAutoScalingGroups",
                "autoscaling:DescribeLaunchConfigurations",
                "autoscaling:DescribeTags",
                "ec2:AllocateAddress",
                "ec2:AssociateAddress",
                "ec2:AssociateRouteTable",
                "ec2:AttachInternetGateway",
                "ec2:AttachVolume",
                "ec2:AuthorizeSecurityGroupEgress",
                "ec2:AuthorizeSecurityGroupIngress",
                "ec2:CreateInternetGateway",
                "ec2:CreateKeyPair",
                "ec2:CreateNATGateway",
                "ec2:CreateRoute",
                "ec2:CreateRouteTable",
                "ec2:CreateSecurityGroup",
                "ec2:CreateSubnet",
                "ec2:CreateTags",
                "ec2:CreateVolume",
                "ec2:CreateVpc",
                "ec2:DeleteInternetGateway",
                "ec2:DeleteKeyPair",
                "ec2:DeleteNATGateway",
                "ec2:DeleteRoute",
                "ec2:DeleteRouteTable",
                "ec2:DeleteSecurityGroup",
                "ec2:DeleteSubnet",
                "ec2:DeleteTags",
                "ec2:DeleteVolume",
                "ec2:DeleteVpc",
                "ec2:DescribeAccountAttributes",
                "ec2:DescribeAddresses",
                "ec2:DescribeAvailabilityZones",
                "ec2:DescribeImages",
                "ec2:DescribeInstanceAttribute",
                "ec2:DescribeInstanceCreditSpecifications",
                "ec2:DescribeInstances",
                "ec2:DescribeInstanceTypes",
                "ec2:DescribeInternetGateways",
                "ec2:DescribeKeyPairs",
                "ec2:DescribeNatGateways",
                "ec2:DescribeNetworkInterfaces",
                "ec2:DescribeRegions",
                "ec2:DescribeRouteTables",
                "ec2:DescribeSecurityGroups",
                "ec2:DescribeSecurityGroupRules",
                "ec2:DescribeSubnets",
                "ec2:DescribeTags",
                "ec2:DescribeVolumesModifications",
                "ec2:DescribeVolumes",
                "ec2:DescribeVpcAttribute",
                "ec2:DescribeVpcClassicLink",
                "ec2:DescribeVpcClassicLinkDnsSupport",
                "ec2:DescribeVpcs",
                "ec2:DetachInternetGateway",
                "ec2:DetachVolume",
                "ec2:DisassociateAddress",
                "ec2:DisassociateRouteTable",
                "ec2:ImportKeyPair",
                "ec2:ModifyInstanceAttribute",
                "ec2:ModifySubnetAttribute",
                "ec2:ModifyVolume",
                "ec2:ModifyVpcAttribute",
                "ec2:ReleaseAddress",
                "ec2:RevokeSecurityGroupEgress",
                "ec2:RevokeSecurityGroupIngress",
                "ec2:RunInstances",
                "ec2:TerminateInstances",
                "ec2:DescribeVpcPeeringConnections",
                "ec2:CreateVpcPeeringConnection",
                "ec2:DeleteVpcPeeringConnection",
                "ec2:AcceptVpcPeeringConnection",
                "ec2:CreateNetworkInterface",
                "ec2:DescribeNetworkInterfaceAttribute",
                "ec2:ModifyNetworkInterfaceAttribute",
                "ec2:DeleteNetworkInterface",
                "ec2:DescribeNetworkInterfaces",
                "elasticloadbalancing:AddTags",
                "elasticloadbalancing:ApplySecurityGroupsToLoadBalancer",
                "elasticloadbalancing:AttachLoadBalancerToSubnets",
                "elasticloadbalancing:ConfigureHealthCheck",
                "elasticloadbalancing:CreateListener",
                "elasticloadbalancing:CreateLoadBalancer",
                "elasticloadbalancing:CreateLoadBalancerListeners",
                "elasticloadbalancing:CreateLoadBalancerPolicy",
                "elasticloadbalancing:CreateTargetGroup",
                "elasticloadbalancing:DeleteListener",
                "elasticloadbalancing:DeleteLoadBalancer",
                "elasticloadbalancing:DeleteLoadBalancerListeners",
                "elasticloadbalancing:DeleteTargetGroup",
                "elasticloadbalancing:DeregisterInstancesFromLoadBalancer",
                "elasticloadbalancing:DeregisterTargets",
                "elasticloadbalancing:DescribeListeners",
                "elasticloadbalancing:DescribeLoadBalancerAttributes",
                "elasticloadbalancing:DescribeLoadBalancerPolicies",
                "elasticloadbalancing:DescribeLoadBalancers",
                "elasticloadbalancing:DescribeTargetGroups",
                "elasticloadbalancing:DescribeTargetHealth",
                "elasticloadbalancing:DetachLoadBalancerFromSubnets",
                "elasticloadbalancing:ModifyListener",
                "elasticloadbalancing:ModifyLoadBalancerAttributes",
                "elasticloadbalancing:ModifyTargetGroup",
                "elasticloadbalancing:RegisterInstancesWithLoadBalancer",
                "elasticloadbalancing:RegisterTargets",
                "elasticloadbalancing:SetLoadBalancerPoliciesForBackendServer",
                "elasticloadbalancing:SetLoadBalancerPoliciesOfListener",
                "iam:AddRoleToInstanceProfile",
                "iam:CreateInstanceProfile",
                "iam:CreateRole",
                "iam:CreateServiceLinkedRole",
                "iam:DeleteInstanceProfile",
                "iam:DeleteRole",
                "iam:DeleteRolePolicy",
                "iam:GetInstanceProfile",
                "iam:GetRole",
                "iam:GetRolePolicy",
                "iam:ListInstanceProfilesForRole",
                "iam:ListRolePolicies",
                "iam:ListAttachedRolePolicies",
                "iam:PassRole",
                "iam:PutRolePolicy",
                "iam:RemoveRoleFromInstanceProfile",
                "iam:TagRole",
                "kms:DescribeKey",
                "sts:GetCallerIdentity"
            ],
            "Resource": "*"
        }
    ]
}

Below, you can find instructions on how to apply this policy.

Configuring IAM via the web interface

In order to configure IAM via the web interface, first create a new Policy and apply the previously created JSON file to it:

  1. Open Identity and Access Management (IAM).
  2. Open the Policies page and click Create Policy.
  3. Select the JSON tab and insert the policy.
  4. Click Next: Tags, then Next: Review.
  5. Enter a policy name in the Name field (e.g., D8CloudProviderAWS).
  6. Click Create Policy.

Then add a new user:

  1. Open the Users page of IAM and click Add users.
  2. Enter a name in the User name field (e.g., deckhouse).

And apply the created Policy to it:

  1. Select Access key - Programmatic access in the Select AWS credential type area.
  2. Click Next: Permissions.
  3. Select the Attach existing policies directly tab.
  4. Search (use the Filter policies field) for the policy name entered above (e.g., D8CloudProviderAWS) and click the checkbox next to it.
  5. Click Next: Tags, then Next: Review.
  6. Click Create user.

Save credentials (Access key ID and Secret access key).

Make sure that you have access to the desired regions. Select the desired region from the dropdown list in the upper right corner.

If there is a switch to the selected region, then there is access to the region.

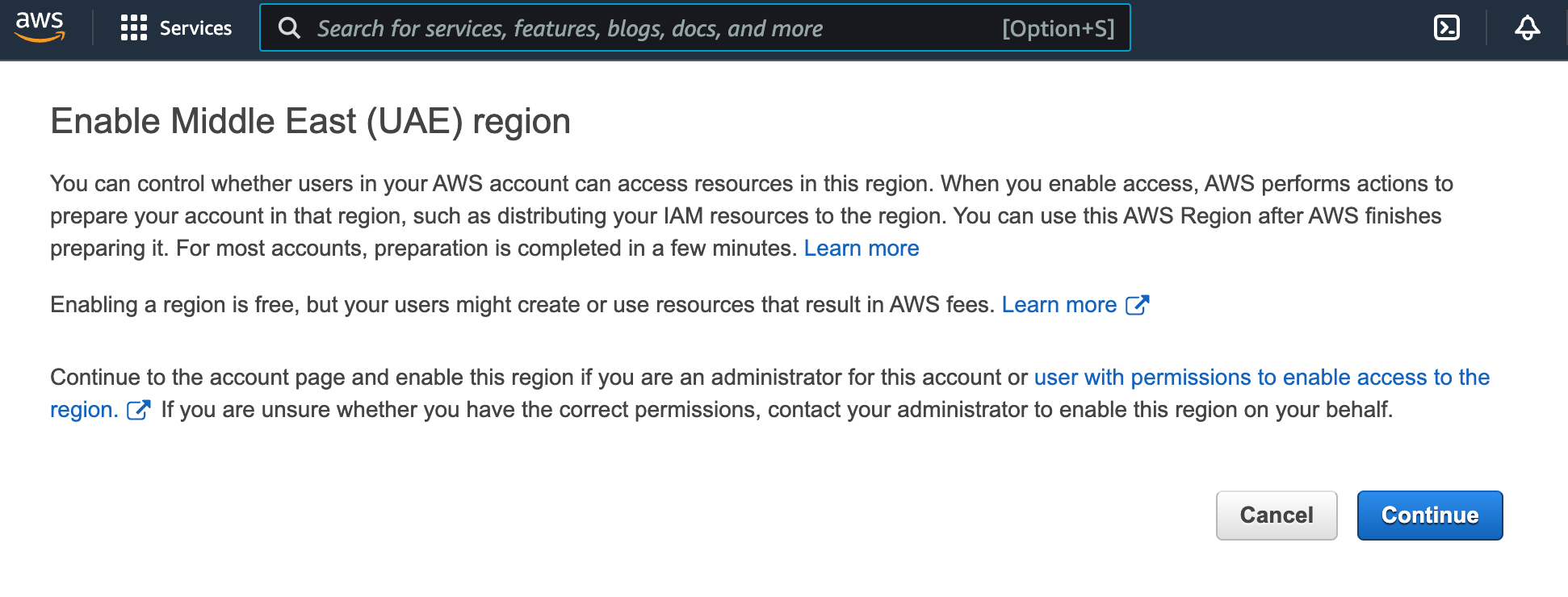

If there is no access to the region, then you will receive the following message (may differ):

Enable region

In this case, click Continue to enable the region.

Configuring IAM via the CLI

Create the JSON specification using the following command.

cat > policy.json << EOF
<Policy JSON spec>
EOF

Create a new Policy based on the specification created above with D8CloudProviderAWS as a policy name and the ARN identifier:

aws iam create-policy --policy-name D8CloudProviderAWS --policy-document file://policy.json

You will see the following:

{
    "Policy": {
        "PolicyName": "D8CloudProviderAWS",
        "PolicyId": "AAA",
        "Arn": "arn:aws:iam::123:policy/D8CloudProviderAWS",
        "Path": "/",
        "DefaultVersionId": "v1",
        "AttachmentCount": 0,
        "PermissionsBoundaryUsageCount": 0,
        "IsAttachable": true,
        "CreateDate": "2020-08-27T02:52:06+00:00",
        "UpdateDate": "2020-08-27T02:52:06+00:00"
    }
}

Create a new user:

aws iam create-user --user-name deckhouse

You will see the following:

{
    "User": {
        "Path": "/",
        "UserName": "deckhouse",
        "UserId": "AAAXXX",
        "Arn": "arn:aws:iam::123:user/deckhouse",
        "CreateDate": "2020-08-27T03:05:42+00:00"
    }
}

You need to allow access to the API and remember your AccessKeyId + SecretAccessKey values:

aws iam create-access-key --user-name deckhouse

You will see the following:

{
    "AccessKey": {
        "UserName": "deckhouse",
        "AccessKeyId": "XXXYYY",
        "Status": "Active",
        "SecretAccessKey": "ZZZzzz",
        "CreateDate": "2020-08-27T03:06:22+00:00"
    }
}

Attach the specified Policy to the specified User:

aws iam attach-user-policy --user-name username --policy-arn arn:aws:iam::123:policy/D8CloudProviderAWS

Configuring IAM via Terraform

An example of configuring IAM via Terraform:

resource "aws_iam_user" "user" {
  name = "deckhouse"
}

resource "aws_iam_access_key" "user" {
  user = aws_iam_user.user.name
}

resource "aws_iam_policy" "policy" {
  name        = "D8CloudProviderAWS"
  path        = "/"
  description = "Deckhouse policy"

  policy = <<EOF
<JSON Policy>
EOF
}

resource "aws_iam_user_policy_attachment" "policy-attachment" {
  user       = aws_iam_user.user.name
  policy_arn = aws_iam_policy.policy.arn
}
