Integrity control

Integrity control is a set of mechanisms for verifying containers to ensure their security and compliance with the specified configuration.

Deckhouse Platform (DP) provides the following mechanisms:

• Integrity control of user workloads at startup: image signature verification during Kubernetes API request validation.
• Integrity control of running containers: runtime audit.
• Integrity protection of DP modules: modules are installed as immutable images.

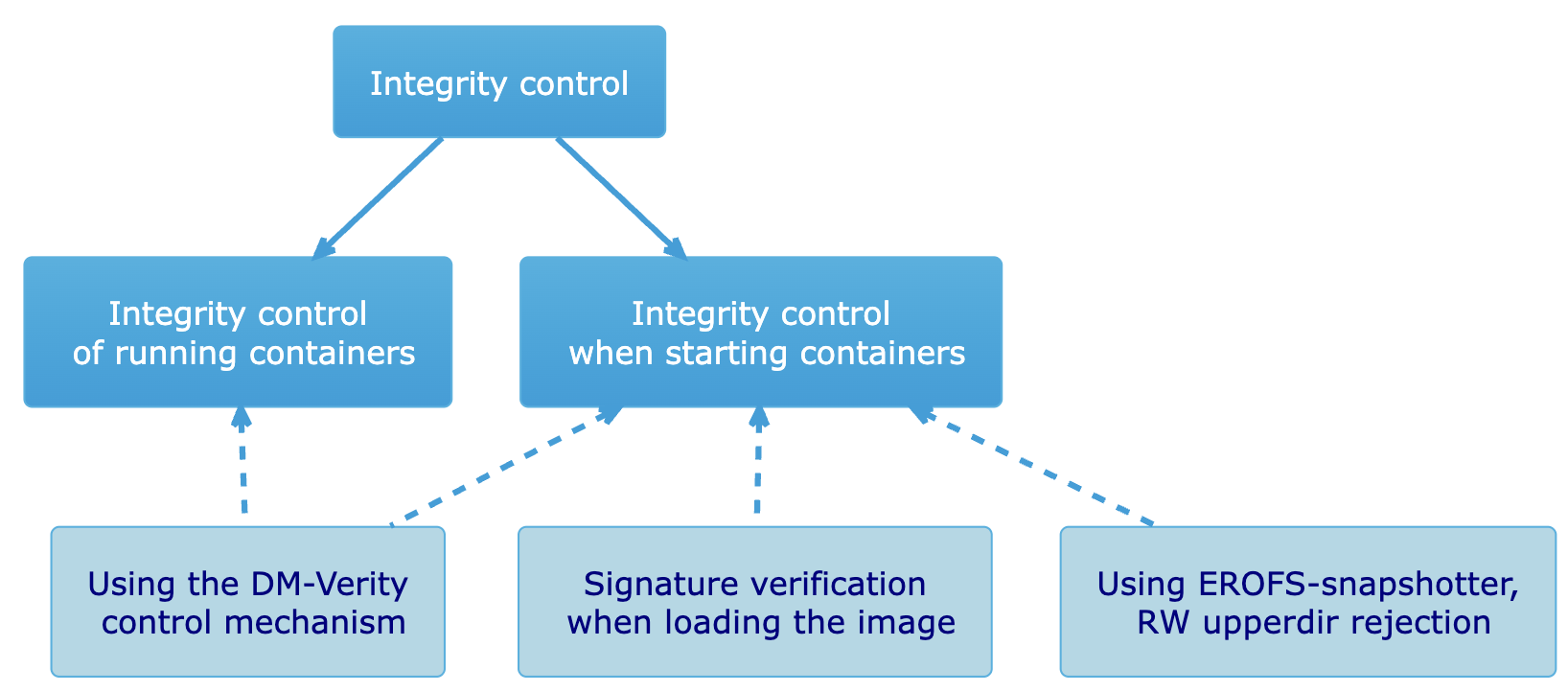

Container image integrity control at the CRI level

Cryptographic image signature verification when a container image is pulled and a container starts, as well as protection of unpacked image layers from modification using DM-Verity, are implemented at the containerd level and are available only in DP Certified Core and Certified Pro editions. These editions use a modified version of containerd. The DM-Verity root hash is calculated for each image layer during the platform build and verified by containerd when the image is unpacked. Integrity control includes verification when image blocks are accessed and periodic re-verification:

• After unpacking, DM-Verity verifies image blocks whenever they are accessed, throughout the entire container runtime.
• In addition, containerd periodically (once per hour by default) rechecks running containers in protected namespaces. It verifies the image manifest signature again and fully checks image layers against the DM-Verity root hash (veritysetup verify). Layers are not checked all at once. The queue is processed at a rate of one container per minute, so a complete pass over a node takes longer as the number of containers on the node increases.

Platform image signatures are verified against a built-in set of public certificates in containerd. The signing private key belongs to the platform vendor, and you cannot add your own verification key. For more details about this mechanism, refer to the Certified Core and Certified Pro documentation.

In other DP editions (CE, BE, SE, SE+, EE, Ultimate, Core), image signature verification at the CRI level is not available:

• When using containerd v2, the EROFS snapshotter is used. Each OCI image layer is converted into a separate EROFS file and mounted read-only. This reduces the risk of tampering with data in images already unpacked on a node, but does not eliminate it completely and does not replace image authenticity verification. For details on switching to containerd v2, refer to “Migrating container runtime to containerd v2”.
• The SHA-256 hash verification performed by containerd when pulling an image protects against data corruption in transit, but does not confirm the image authenticity, because it does not make it possible to determine who built the image.

To control the integrity and authenticity of user application images in these editions, use signature verification during Kubernetes API request validation (for details, refer to “Integrity control of user workloads at startup”).

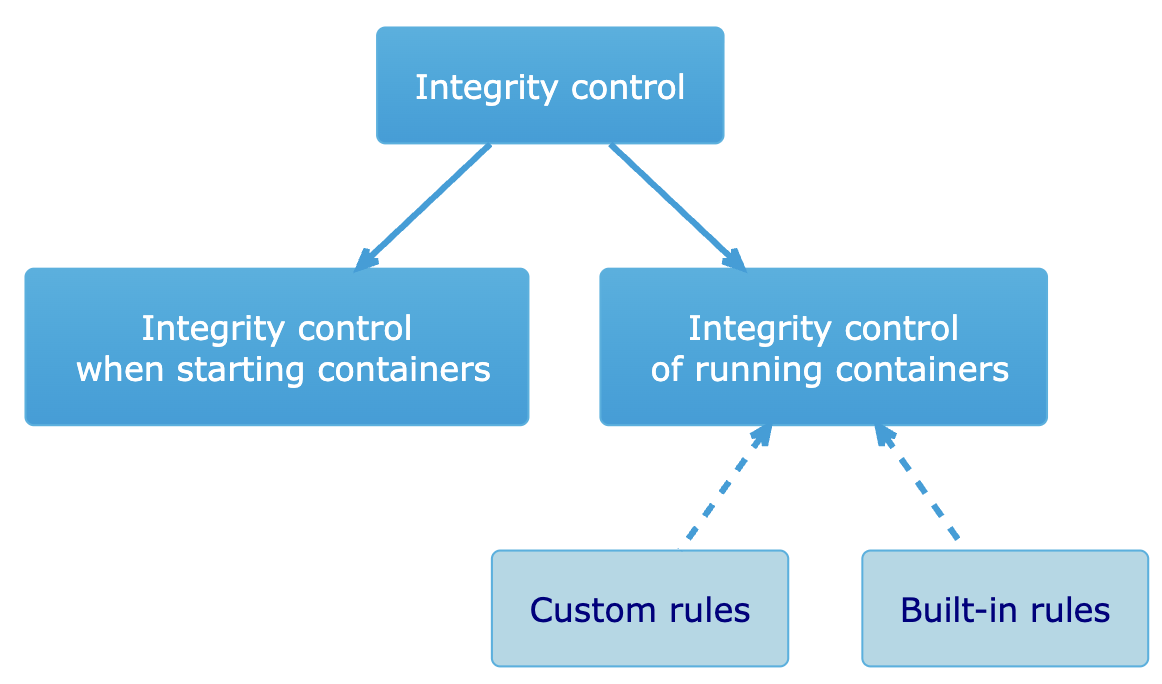

Integrity control of user workloads at startup

The integrity and authenticity of user application images are verified during Kubernetes API request validation, that is, before a Pod is created, rather than at the CRI level. The mechanism is implemented by the admission-policy-engine module and relies on signatures created with Cosign.

The sequence of integrity checks at startup:

1. At the build stage, the image is signed with a private key using Cosign. The signature is published in the container image registry as a separate tag and does not modify the image itself.
2. A SecurityPolicy resource with the policies.verifyImageSignatures parameter is created in the cluster, listing the public keys and the image address patterns.
3. When a Pod is created or updated, the validating webhook passes the request to Gatekeeper, which in turn queries the Ratify component.
4. Ratify verifies the image signature against the specified public keys.
5. If the signature is missing or does not match the specified keys, Pod creation is denied.

Additionally, you can restrict the list of container image registries that Pods are allowed to be started from using the policies.allowedRepos parameter of the OperationPolicy resource.

For more details on the configuration, refer to “Image signature verification”.

Integrity control of running containers

Runtime auditing in DP includes analyzing Linux kernel events and Kubernetes API audit events. This makes it possible to track whether applications in pods are running unchanged, conform to their expected state, and have not been modified.

Auditing uses:

• Built-in rules
• Custom rules that can be added using the Falco condition syntax

Integrity control of running containers can detect threats such as launching command-line shells inside containers or pods, discovering containers running in privileged mode, mounting insecure paths into containers, or attempts to read sensitive data.

For more details on configuring runtime audit, refer to “Runtime audit”.

Integrity protection of DP modules

Starting with version 1.74, DP modules are installed not as a directory with files, but as an image in the EROFS format that is mounted read-only through the DM-Verity kernel mechanism. This protects the contents of an already installed module from being modified on the node. The module files cannot be overwritten in the mounted image, and DM-Verity verifies the image blocks when they are accessed.

This is a separate mechanism unrelated to container image integrity control at the CRI level: here, the DP controller applies DM-Verity to the platform module image rather than containerd applying it to container image layers. Therefore, the edition restriction described in “Container image integrity control at the CRI level” does not apply to this mechanism.

The mechanism is enabled automatically if the erofs filesystem is registered in the kernel on the node running the DP controller (a master node by default), that is, the corresponding kernel module is either loaded or built into the kernel. To check it, run the following command:

grep -w erofs /proc/filesystems

If the erofs filesystem is not available, DP will continue to operate and will install modules the regular way, without protecting their integrity. The switch happens without a dedicated alert, so make sure to check erofs availability in advance.

Note the following when using this mechanism:

• The mechanism protects modules from being modified after installation, but does not confirm their authenticity: there is no cryptographic signature verification for modules. The container image registry the module is pulled from remains the source of trust.
• The mechanism applies only to DP modules and does not cover user application images.
• The mechanism is available in all DP editions and does not need to be enabled separately.

Additional resources

• Module admission-policy-engine custom resources
