The cloud-provider-zvirt module is responsible for interacting with the zVirt cloud resources. It allows the node-manager module to use zVirt resources for provisioning nodes for the specified node group.

For more details about the module configuration, refer to the corresponding documentation section.

Module architecture

The following simplifications are made in the diagram:

  • The diagram shows containers in different pods interacting directly with each other. In reality, they communicate via the corresponding Kubernetes Services (internal load balancers). Service names are omitted if they are obvious from the diagram context. Otherwise, the Service name is shown above the arrow.
  • Pods may run multiple replicas. However, each pod is shown as a single replica in the diagram.

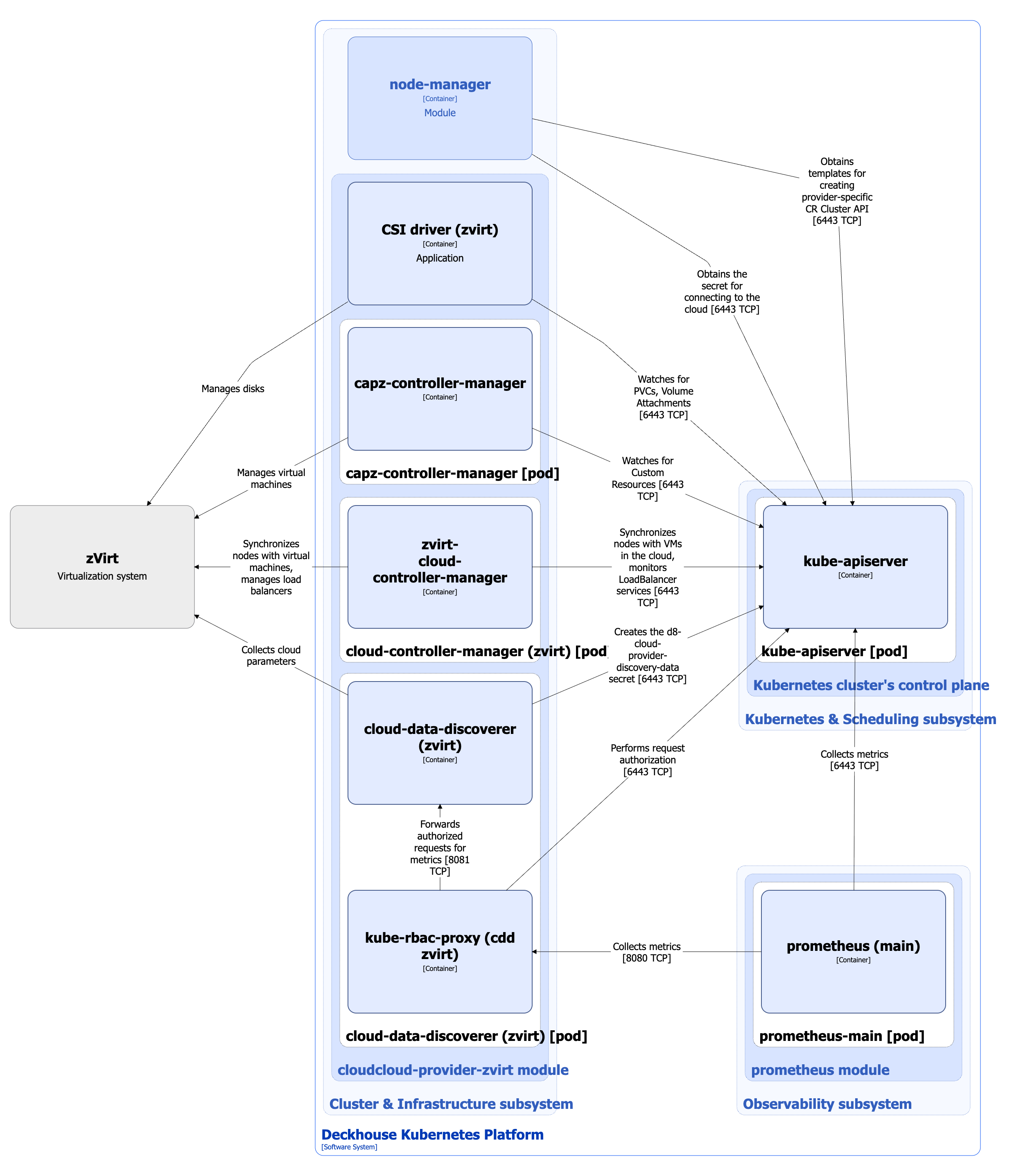

The Level 2 C4 architecture of the cloud-provider-zvirt module and its interactions with other components of Deckhouse Kubernetes Platform (DKP) are shown in the following diagram:

Cloud-provider-zvirt architecture

Module components

The module consists of the following components:

  1. Capz-controller-manager: Kubernetes Cluster API Provider for zVirt. Cluster API is an extension for Kubernetes that allows you to manage Kubernetes clusters as custom resources inside another Kubernetes cluster. Cluster API Provider allows clusters running the Cluster API to order virtual machines in the cloud provider’s infrastructure, zVirt in this case. Capz-controller-manager works with the following custom resources:

    • ZvirtCluster: Description of a zVirt-based cluster.
    • ZvirtMachineTemplate: Template describing the characteristics of the machines created in the cloud.
    • ZvirtMachine: Description of the characteristics of a machine created based on ZvirtMachineTemplate.

    It consists of a single container:

    • capz-controller-manager.

  2. Cloud-controller-manager: It is an implementation of Cloud controller manager for zVirt. It provides interaction with the zVirt cloud and performs the following functions:

    • Implements a 1:1 relationship between a Node resource in Kubernetes and a VM in a cloud provider. To do this:

      • It fills the spec.providerId and NodeInfo fields of the Node resource.
      • It checks for a VM in the cloud and deletes the Node resource in the cluster if it is missing.

    • When creating a LoadBalancer Service resource in Kubernetes, it creates a load balancer in the cloud that routes traffic from outside into the cluster nodes.

    For more details about cloud-controller-manager, refer to the Kubernetes documentation.

    It consists of a single container:

    • zvirt-cloud-controller-manager.

  3. Cloud-data-discoverer: It is responsible for collecting data from the cloud provider’s API and providing it as a kube-system/d8-cloud-provider-discovery-data Secret. This secret contains the parameters of a specific cloud used by other components of the cloud-provider-zvirt module.

    It consists of the following containers:

    • cloud-data-discoverer: Main container.
    • kube-rbac-proxy: Sidecar container providing an RBAC-based authorization proxy for secure access to the cloud-data-discoverer metrics.

  4. CSI driver (zvirt): It is an implementation of the CSI driver for zVirt. To study the cloud-provider-* CSI driver typical architecture, refer to the corresponding documentation page.

    CSI driver (zvirt) does not support snapshots. For this reason, the csi-controller Pod does not include the snapshotter (external-snapshotter) sidecar container.

Module interactions

The module interacts with the following components:

  1. Kube-apiserver:

    • Watches for PersistentVolumeClaim and VolumeAttachment custom resources.
    • Reconciles ZvirtCluster, ZvirtMachineTemplate, and ZvirtMachine custom resources.
    • Creates the kube-system/d8-cloud-provider-discovery-data Secret.
    • Synchronizes Kubernetes nodes with cloud VMs.
    • Watches for LoadBalancer services.
    • Authorizes the requests for metrics.

  2. zVirt:

    • Collects cloud parameters.
    • Manages virtual machines.
    • Gets ProviderId and other information about the VMs that are cluster nodes.
    • Manages load balancers.
    • Manages disks.

The following external components interact with the module:

  1. Prometheus-main: Collects cloud-data-discoverer metrics.

Indirect interactions:

  1. The cloud-provider-zvirt module provides node-manager with following artifacts:

    • Provider-specific Cluster API custom resource templates to be used by cloud-provider-zvirt to create VMs in the cloud.
    • The kube-system/d8-node-manager-cloud-provider Secret, which contains all the necessary settings to connect to the cloud and to create CloudEphemeral nodes. These settings are registered in the provider-specific Cluster API custom resources created based on the templates mentioned above.

  2. The cloud-provider-zvirt module provides Terraform/OpenTofu components for zVirt cloud used when building the dhctl executable file for the terraform-manager module, such as:

    • Terraform/OpenTofu provider.
    • Terraform modules.

    • Layouts: Set of cloud placement schemes, which define how the basic infrastructure is created, how and with which additional characteristics should nodes be created for this placement. For example, for one scheme, nodes may have public IP addresses, but they will not for the other. Each layout should have three modules:

      • base-infrastructure: Basic infrastructure (for example, creation of networks), can also be empty.
      • master-node
      • static-node
