Virtual processor of virtual machines

A virtual machine (VM) class defines which processor and which instruction set the guest system sees.

Virtual processor

The .spec.cpu block defines the CPU that the guest OS sees. It also determines which nodes a VM can migrate between.

The following examples cover each CPU type.

• A set of CPU instructions required for a VM. Set with the Features type:

  spec:
    cpu:
      features:
        - vmx
      type: Features


  To configure the vCPU in the web interface, in the VM class creation form:

  1. In the CPU settings block, select Features in the Type field.
  2. In the Required set of supported instructions field, select the instructions you need.
  3. Click Create.

• A universal CPU for a given set of nodes. Set with the Discovery type:

  spec:
    cpu:
      discovery:
        nodeSelector:
          matchExpressions:
            - key: node-role.kubernetes.io/control-plane
              operator: DoesNotExist
      type: Discovery


  To do the same in the web interface, in the VM class creation form:

  1. In the CPU settings block, select Discovery in the Type field.
  2. Click Add in the Conditions for creating a universal CPU → Labels and expressions block.
  3. Set Key, Operator, and Value. They correspond to the .spec.cpu.discovery.nodeSelector parameter.
  4. Press Enter to confirm the key parameters.
  5. Click Create.

• A CPU close to the node CPU. Set with the Host type. The guest OS gets almost the full instruction set of the node, so performance is higher than with a fixed model. A VM of this class migrates only between nodes with similar CPUs. For example, migration between nodes with Intel and AMD CPUs isn’t possible, and neither is migration between CPU generations with different instruction sets.

  spec:
    cpu:
      type: Host


  To do the same in the web interface, in the VM class creation form:

  1. In the CPU settings block, select Host in the Type field.
  2. Click Create.

• The node CPU without changes. Set with the HostPassthrough type. A VM of this class migrates only to a node whose CPU exactly matches the CPU of the source node.

  spec:
    cpu:
      type: HostPassthrough


  To do the same in the web interface, in the VM class creation form:

  1. In the CPU settings block, select HostPassthrough in the Type field.
  2. Click Create.

• A specific CPU model with a known instruction set. Set with the Model type. First, check which models the target node supports:

  d8 k get nodes <NODE_NAME> -o json | jq '.metadata.labels | to_entries[] | select(.key | test("cpu-model.node.virtualization.deckhouse.io")) | .key | split("/")[1]' -r


  Where <NODE_NAME> is the name of a cluster node.

  Example output:

  Broadwell-noTSX
  Broadwell-noTSX-IBRS
  Haswell-noTSX
  Haswell-noTSX-IBRS
  IvyBridge
  IvyBridge-IBRS
  Nehalem
  Nehalem-IBRS
  Penryn
  SandyBridge
  SandyBridge-IBRS
  Skylake-Client-noTSX-IBRS
  Westmere
  Westmere-IBRS


  Then specify the selected model in the class specification:

  spec:
    cpu:
      model: IvyBridge
      type: Model


  To do the same in the web interface, in the VM class creation form:

  1. In the CPU settings block, select Model in the Type field.
  2. In the Model field, select the CPU model.
  3. Click Create.

vCPU Discovery configuration example

The following example shows how to choose the processor types in a cluster with heterogeneous nodes.

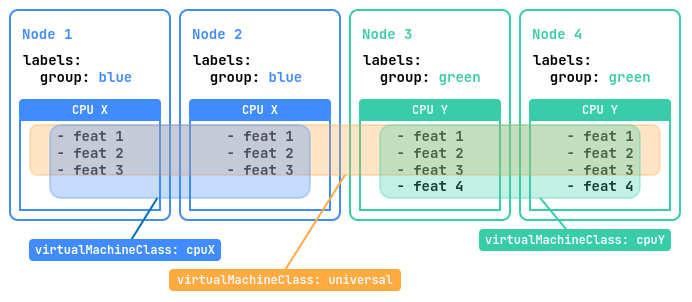

The example below uses a cluster of four nodes. Two nodes labeled group=blue are equipped with the “CPU X” processor with three instruction sets, and the other two labeled group=green have the newer “CPU Y” processor with four sets.

Three classes suit such a cluster:

• universal: VMs start on any node and migrate between all four. Deckhouse Platform (DP) takes the instruction set common to both processors, so compatibility is maximal, while some capabilities of “CPU Y” stay unused.
• cpuX: VMs start only on nodes with “CPU X” and migrate between them, using all instructions of that processor.
• cpuY: The same for nodes with “CPU Y”.

The classes for such a cluster look as follows:

---
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineClass
metadata:
  name: universal
spec:
  cpu:
    # An empty discovery means that all cluster nodes are taken into account.
    discovery: {}
    type: Discovery
---
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineClass
metadata:
  name: cpuX
spec:
  cpu:
    discovery:
      nodeSelector:
        matchExpressions:
          - key: group
            operator: In
            values: ["blue"]
    type: Discovery
---
apiVersion: virtualization.deckhouse.io/v1alpha2
kind: VirtualMachineClass
metadata:
  name: cpuY
spec:
  cpu:
    discovery:
      nodeSelector:
        matchExpressions:
          - key: group
            operator: In
            values: ["green"]
    type: Discovery

Additional resources

• Module virtualization custom resources
